PAGE 01
KEEP THIS INSTRUCTION BOOKLET FOR FUTURE REFERENCE

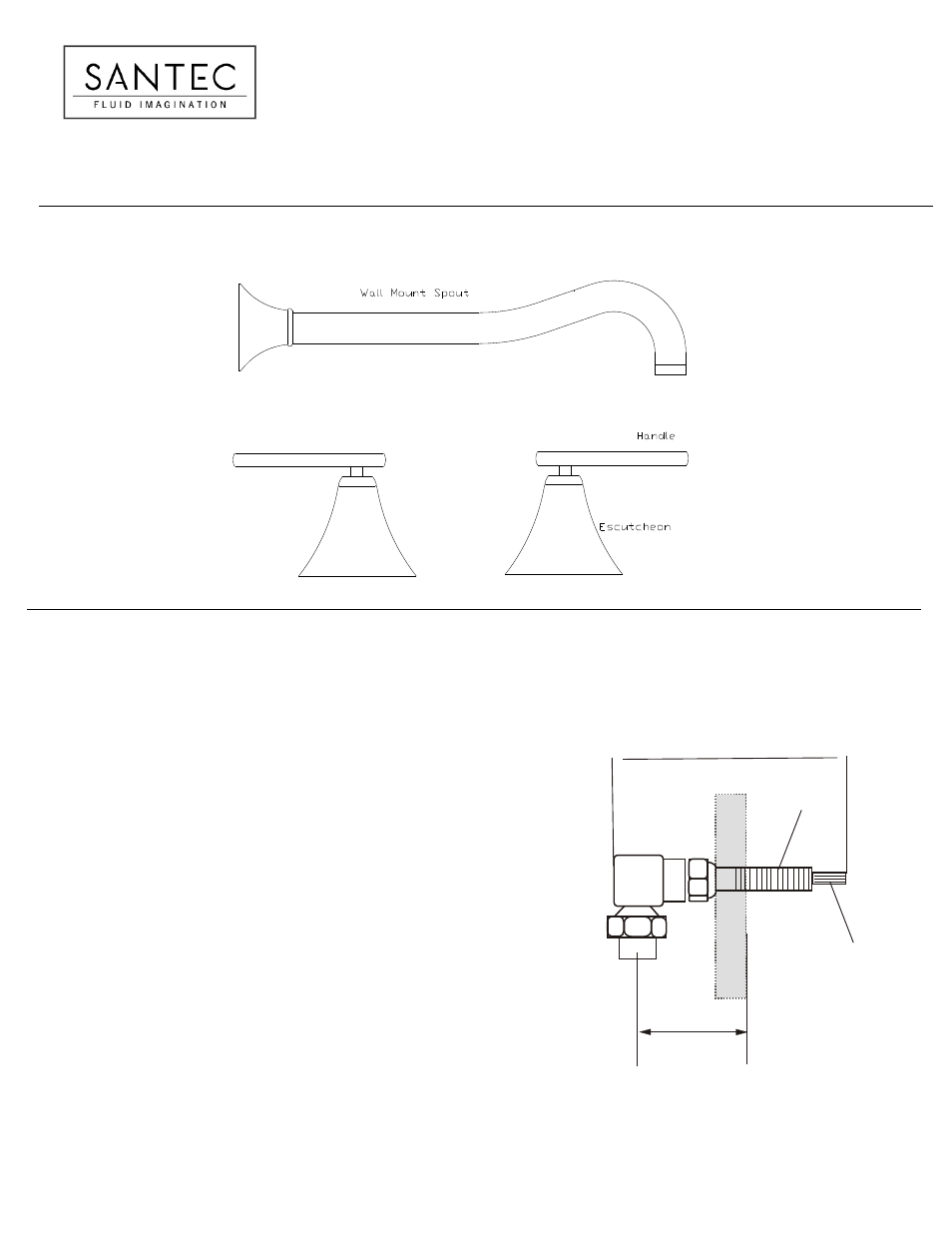

Wall Mount Rough
and Trim
PLEASE READ THE INSTRUCTIONS COMPLETELY
BEFORE BEGINNING THE INSTALLATION.
*** NOTE: SHUT OFF WATER SUPPLY BEFORE BEGINNING INSTALLATION***
MINIMUM HOLE SIZE FOR THE HANDLE TRIMS IS 1 5/8” AND MAXIMUM OF 1 ¾.
PLUMBER TO FURNISH CONNECTOR TEE AND NIPPLES.
DO NOT USE PLUMBERS’ PUTTY WHICH CAN DAMAGE FINISH.”
ROUGH INSTALLATION
NOTE : Where tile construction is planned for the
finished walls, allow for the extra thickness
dimensions when roughing in the valves.
center to finished wall
finished wall
ALL THREAD
STEM
2” ~ 2 1/8”
6 1/4”
