INSTALLATION INSTRUCTIONS
PAGE 03

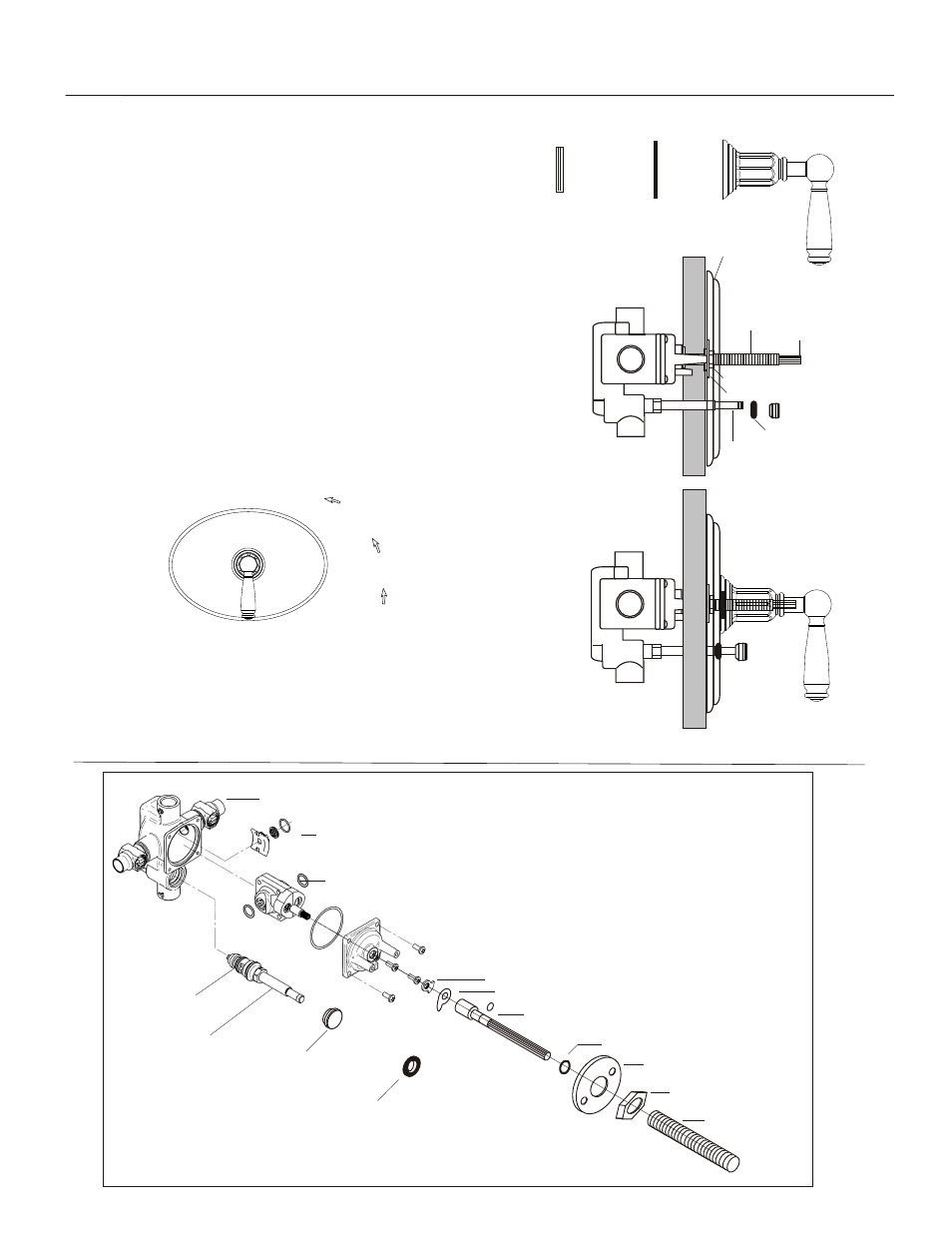

ILLUSTRATION C
PM-280 - SERVICE VALVE (OPTIONAL)
VALVE CARTRIDGE - TE010
MECHANICAL STOP- TE013
LIMIT STOP- TE014
PM-007 - STEM
TEFLON WASHER
PM-009 - LOCK PLATE
PM-012 - LOCK NUT
PM-011 - ALL THREAD
FILTER SCREEN - TE012
DIVERTER CARTRIDGE- TE050
PM-460 - DIVERTER SLEEVE
DIVERTER KNOB-P0258
PLATE GROMMET- PM-465
Pressure Balanced Tub/Shower
TRIM INSTALLATION
- Place the shower plate on the all thread.
- Thread handle set with the washer and adapter onto all thread
with the stem and mark the position.
- Take off the handle assembly and cut off the excess thread and stem.
- Keeping handle set at 6 o’clock position, thread handle assembly
onto all thread by using escutcheon being caution not to over tighten.
- Place the trim plate grommet onto the designated hole for the
diverter rod on the trim plate.
- Screw the diverter knob onto the diverter rod.
All Thread
Lock Nut
Lock Plate
S
T
Diverter Rod
Trim Plate
Diverter Knob
Plate Grommet
Stem
S
T
COLD
WARM
WARMER
HOT
FLANGE WASHER HANDLE BELL HANDLE FLANGE ADAPTER
H
santec
C
