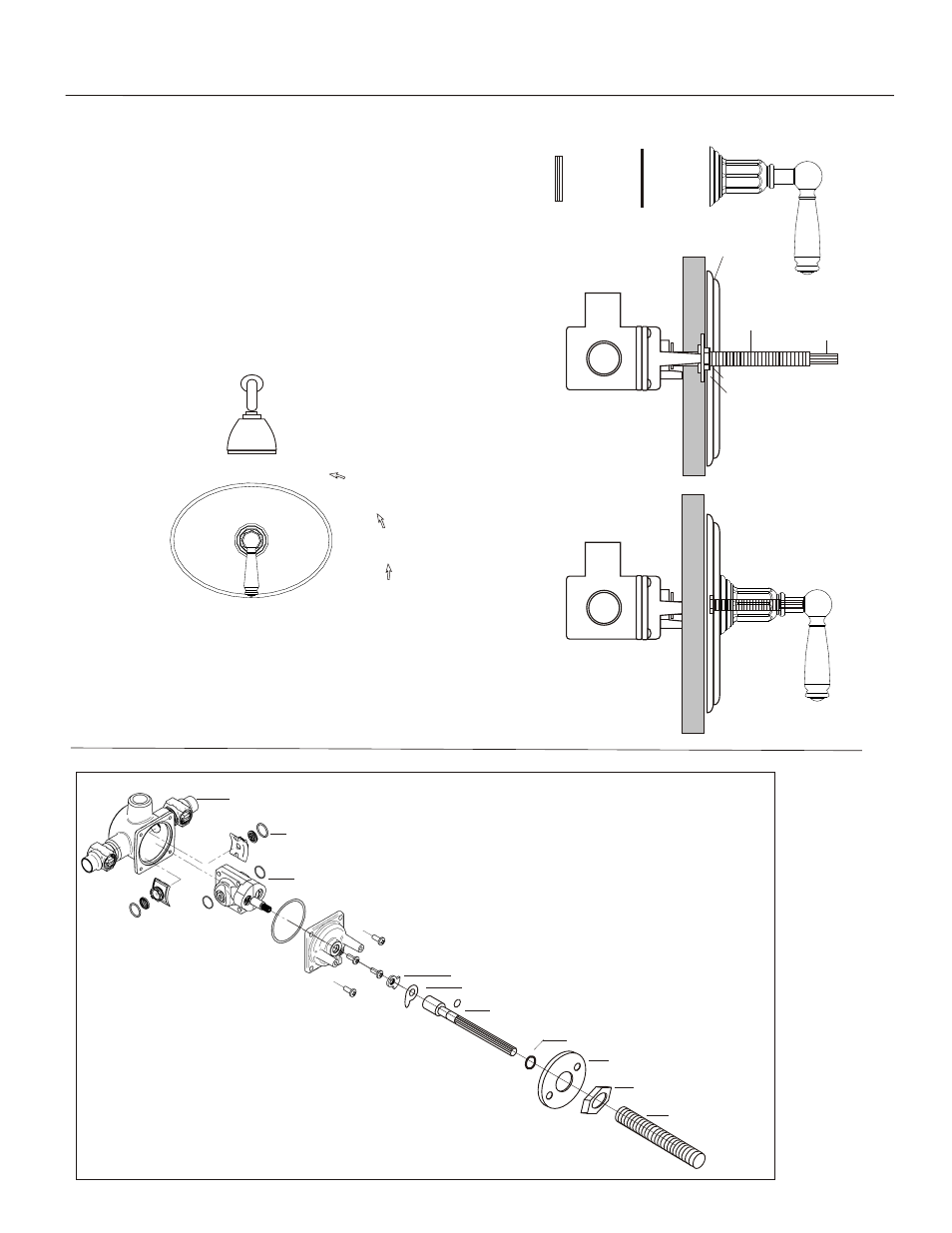

TRIM INSTALLATION
- Place the shower plate on the all thread.
- Thread the handle set with the washer and adapter onto all thread
with the stem and mark the position.
- Take off the handle assembly and cut off the excess thread and stem.
- Keeping the handle set at 6 o’clock position, thread handle assembly
onto all thread by using escutcheon being caution not to over tighten.
INSTALLATION INSTRUCTIONS
All Thread
Lock Nut
Lock Plate
FLANGE WASHER HANDLE BELL HANDLE
Trim Plate
Stem
PAGE 03
COLD
WARM
WARMER
HOT
ILLUSTRATION C
PM-280 - SERVICE VALVE (OPTIONAL)
VALVE CARTRIDGE - TE010
MECHANICAL STOP- TE013
LIMIT STOP- TE014
PM-010 - STEM
TEFLON WASHER
PM-009 - LOCK PLATE
PM-012 - LOCK NUT
PM-011 - ALL THREAD
FILTER SCREEN
H
santec
C
Pressure Balanced Shower
FLANGE ADAPTER
