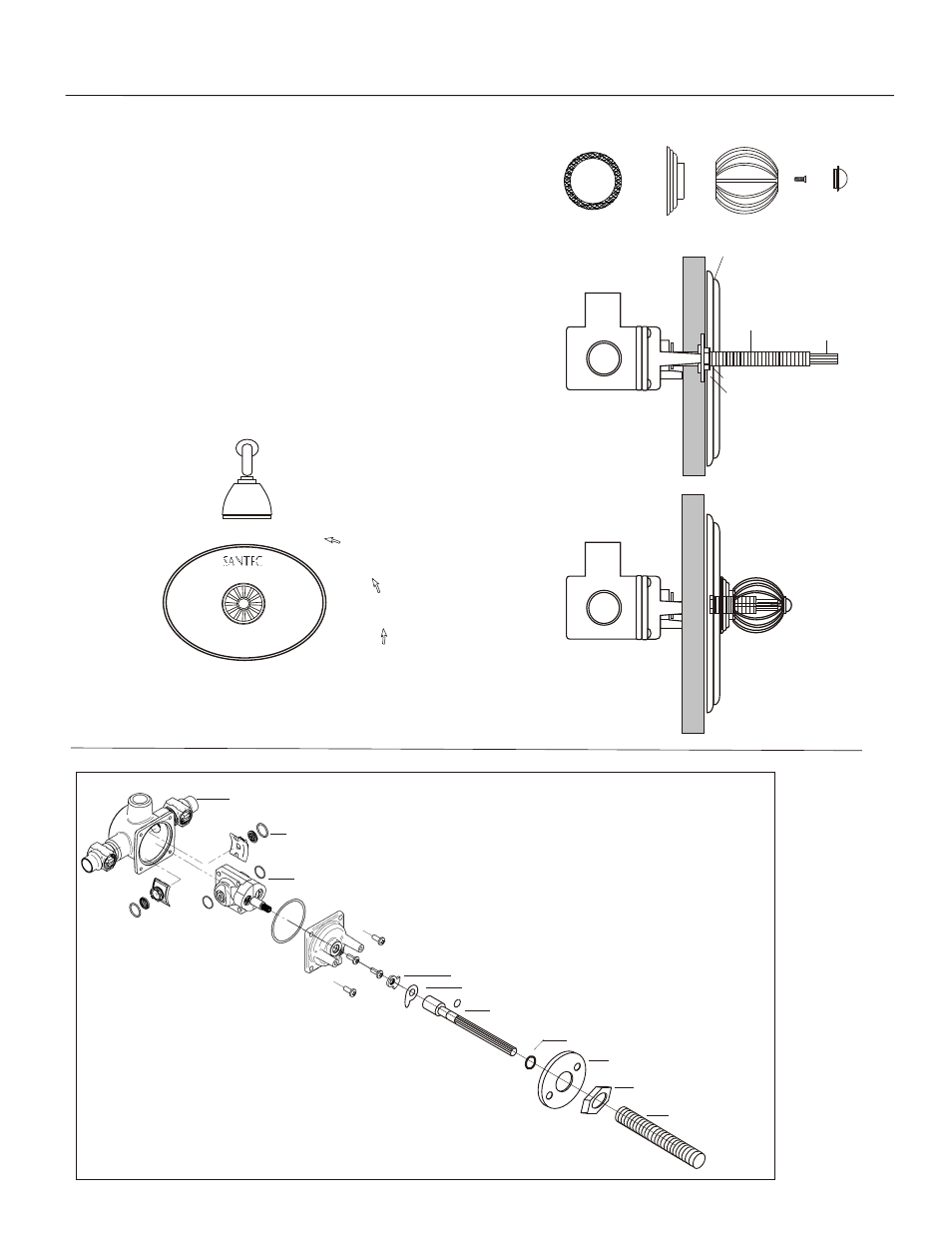

TRIM INSTALLATION
- Place the shower plate on the all thread.
- Screw the handle flange with the washer onto the all thread, press it
firmly against the plate..
- Insert the handle bell onto the stem. Measure the gap between the end
of the handle bell and the handle flange. Take the handle bell off and
cut off the excess thread and stem.
- Re-insert the handle bell onto the stem and secure it with the screw.
.Tighten it firmly.
- Screw the cap onto the handle bell and tighten it firmly.
- Make sure that the handle bell turns freely in both direction without
scraping against the handle flange.
H H
C C
INSTALLATION INSTRUCTIONS
All Thread
Lock Nut
Lock Plate
Trim Plate
Stem
PAGE 03
COLD
WARM
WARMER
HOT
ILLUSTRATION C
PM-280 - SERVICE VALVE (OPTIONAL)
VALVE CARTRIDGE - TE010
MECHANICAL STOP- TE013
LIMIT STOP- TE014
PM-010 - STEM
TEFLON WASHER
PM-009 - LOCK PLATE
PM-012 - LOCK NUT
PM-011 - ALL THREAD
FILTER SCREEN
2132JC _ _
HANDLE FLANGE HANDLE BELL SCREW CAP FLANGE WASHER
