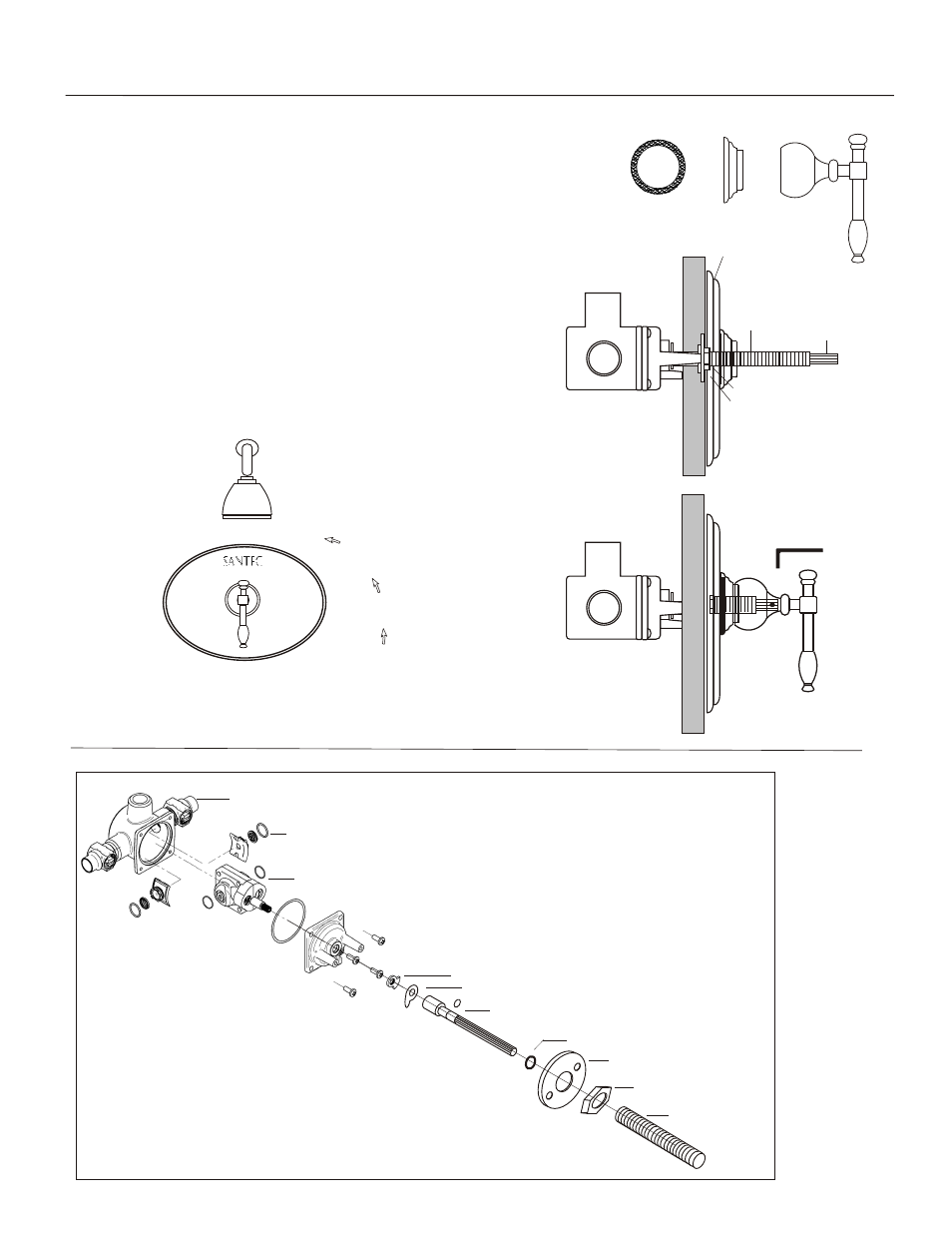

TRIM INSTALLATION
- Place the shower plate onto the all thread.
- Screw the handle flange with the washer onto the all thread, press
it firmly against the plate.
- Insert the handle body onto the stem. Measure the gap between the end
of the handle body and the handle flange. Take the handle body off and
cut off the excess thread and stem.
- Re-insert the handle body onto the stem and secure its screw firmly with
the Allen key provided.
- Make sure that the handle body turns freely in both directions without
scraping against the handle flange.
H
H
C
C
INSTALLATION INSTRUCTIONS
All Thread
Lock Nut
Lock Plate
Trim Plate
Stem
PAGE 03
COLD
WARM
WARMER
HOT
ILLUSTRATION C
PM-280 - SERVICE VALVE (OPTIONAL)
VALVE CARTRIDGE - TE010
MECHANICAL STOP- TE013
LIMIT STOP- TE014
PM-010 - STEM
TEFLON WASHER
PM-009 - LOCK PLATE
PM-012 - LOCK NUT
PM-011 - ALL THREAD
FILTER SCREEN
HANDLE FLANGE
HANDLE BODY
FLANGE WASHER
