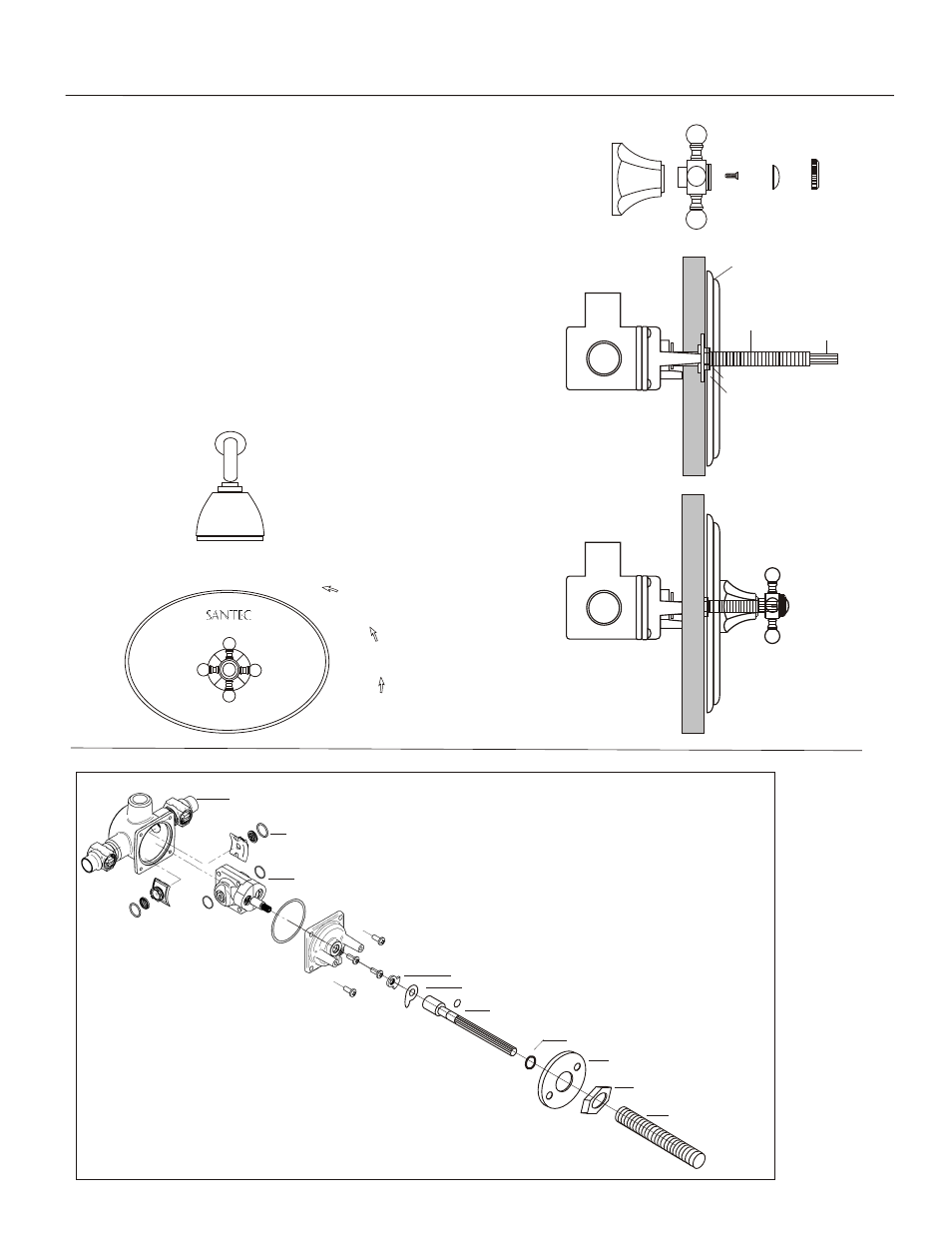

TRIM INSTALLATION
- Place the shower plate on the all thread..
- Screw the handle bell onto the all thread and p
Mark the position of the handle bell on the all thread..
Take off the handle bell and cut off the excess thread. Reinsert the
handle bell onto the all thread.
- Insert the Handle onto the Stem. Measure the excess stem between
the handle bell and the handle. Take off the handle and cut the
excess stem.
- Reinsert the handle onto the stem. Insert the screw and tighten it
firmly.
- Insert the porcelain button and screw the handle cap onto
the handle and tighten it firmly.
ress it firmly against
the plate.
INSTALLATION INSTRUCTIONS
All Thread
Lock Nut
Lock Plate
Trim Plate
Stem
PAGE 03
COLD
WARM
WARMER
HOT
ILLUSTRATION C
PM-280 - SERVICE VALVE (OPTIONAL)
VALVE CARTRIDGE - TE010
MECHANICAL STOP- TE013
LIMIT STOP- TE014
PM-010 - STEM
TEFLON WASHER
PM-009 - LOCK PLATE
PM-012 - LOCK NUT
PM-011 - ALL THREAD
FILTER SCREEN
1832NX _ _
HANDLE BELL HANDLE SCREW BUTTON CAP
C C H H
