Santec 1134TT - Manual (Page 3)

TRIM INSTALLATION
- Place the shower plate on the all thread.
- Screw the Handle Bell onto the All Thread and mark the position.
Cut off the excess thread.
- Insert the Handle onto the Stem. Measure the excess between
the handle bell and the handle. Take off the handle
and cut the excess stem.
- Reinsert the handle onto the stem. Tighten the handle set screw
firmly using the Allen Key.
- Place the Trim Plate Grommet onto the designated hole for the
Diverter Rod on the Trim Plate.
- Screw the Diverter Knob onto the Diverter Rod.
H H
C C

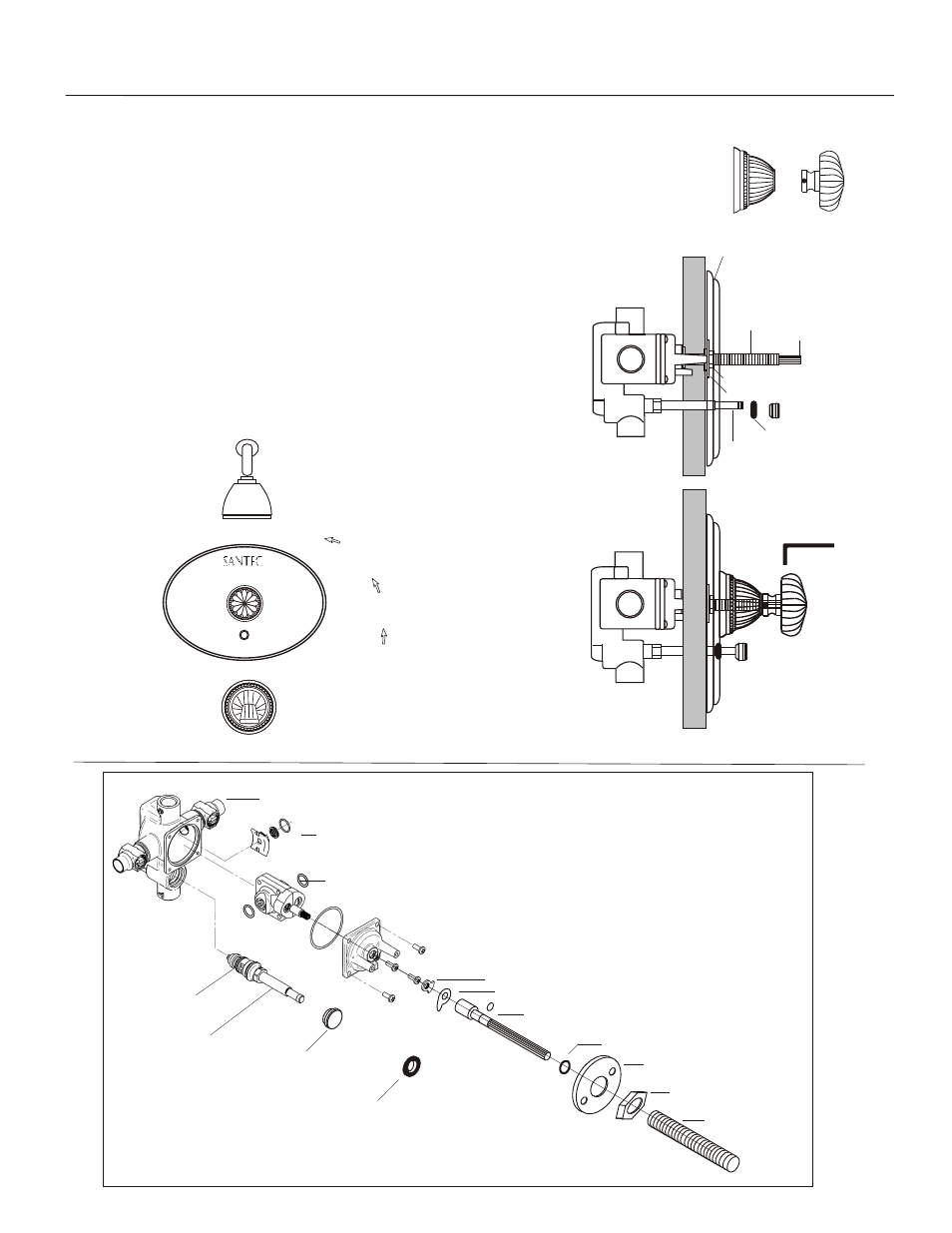

INSTALLATION INSTRUCTIONS
All Thread
Lock Nut
Lock Plate
S
T
Diverter Rod
Trim Plate
Diverter Knob
Plate Grommet
Stem
S
T
PM-280 - SERVICE VALVE (OPTIONAL)
VALVE CARTRIDGE - TE010
MECHANICAL STOP- TE013
LIMIT STOP- TE014
PM-010 - STEM
TEFLON WASHER
PM-009 - LOCK PLATE
PM-012 - LOCK NUT
PM-011 - ALL THREAD
FILTER SCREEN - TE012
DIVERTER CARTRIDGE- TE050
PM-460 - DIVERTER SLEEVE
DIVERTER KNOB-P0258
PLATE GROMMET- PM-465
PAGE 03
COLD
WARM
WARMER
HOT
ILLUSTRATION C
1134TT _ _
HANDLE BELL HANDLE
