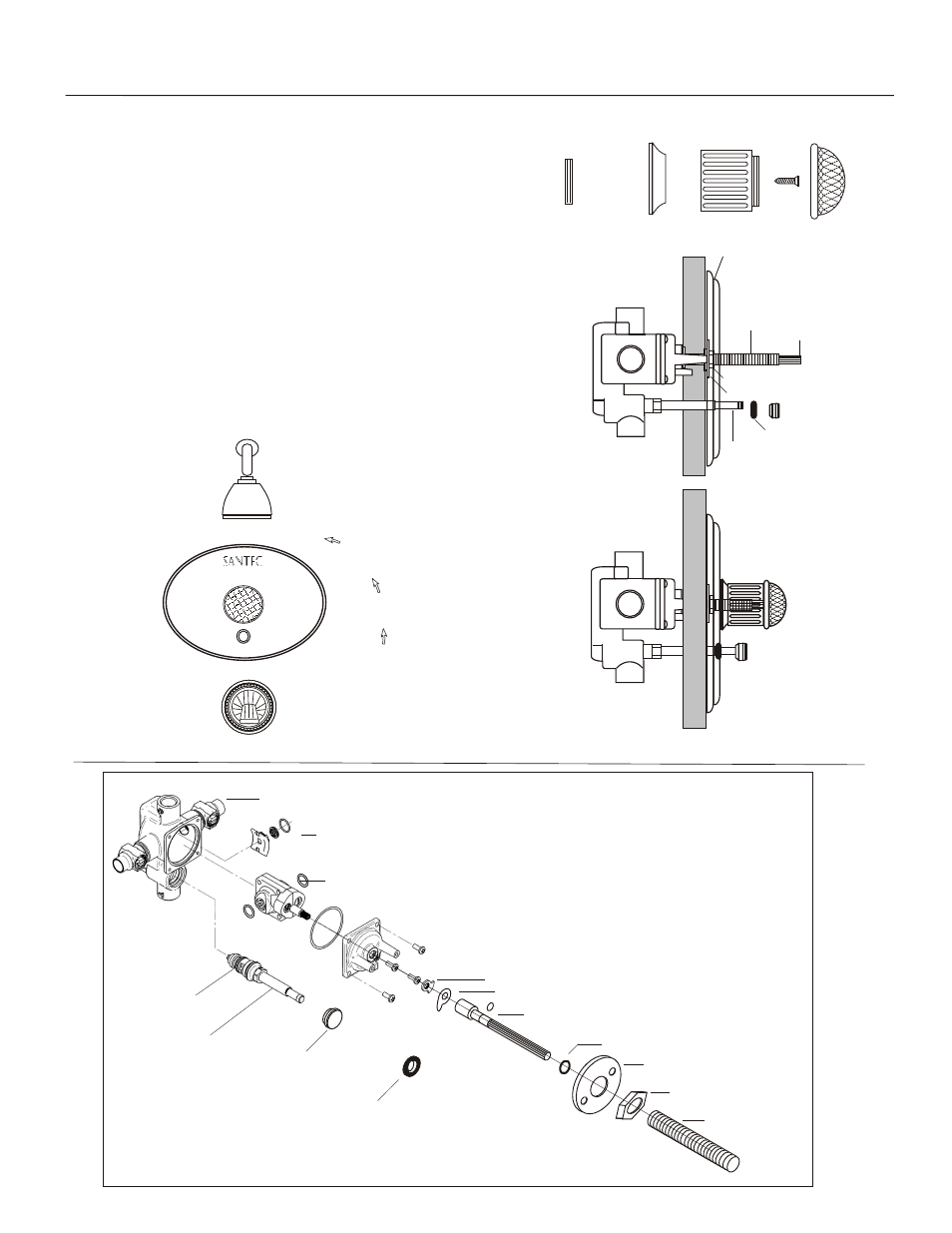

TRIM INSTALLATION
- Place the shower plate on the all thread.
- Screw the handle flange with the adapter onto the all thread.
Press them firmly against the shower plate.
- Insert the handle base onto the stem and measure the gap
between the flange and base.
- Take off the handle ase and cut off the excess thread.
- Using the same dimension, cut off the excess stem.
- Reinsert the handle base onto the stem and secure it with the
screw provided. Tighten it firmly.
- Screw the handle top onto the handle base. Tighten it firmly.
- Screw the diverter knob onto the diverter rod.
H H
C C
INSTALLATION INSTRUCTIONS
All Thread
Lock Nut
Lock Plate
S
T
Diverter Rod
Trim Plate
Diverter Knob
Plate Grommet
Stem
S
T
PM-280 - SERVICE VALVE (OPTIONAL)
VALVE CARTRIDGE - TE010
MECHANICAL STOP- TE013
LIMIT STOP- TE014
PM-010 - STEM
TEFLON WASHER
PM-009 - LOCK PLATE
PM-012 - LOCK NUT
PM-011 - ALL THREAD
FILTER SCREEN - TE012
DIVERTER CARTRIDGE- TE050
PM-460 - DIVERTER SLEEVE
DIVERTER KNOB-P0258
PLATE GROMMET- PM-465
PAGE 03
COLD
WARM
WARMER
HOT
ILLUSTRATION C
1134CD _ _
HANDLE BASE HANDLE TOP HANDLE FLANGE SCREW FLANGE ADAPTER
