Hyundai H-CDM8048 User Manual
Page 5
5

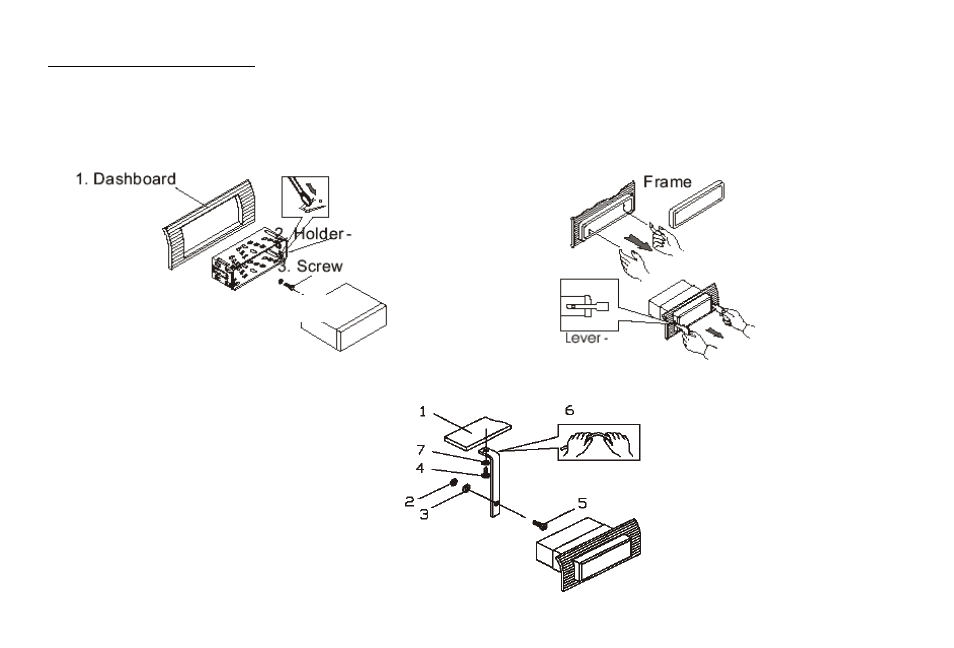

Din front-mount (method 1)
·
After inserting the holder into the dashboard, select the appropriate tab and bend them inwards to secure to the place
· Insert fingers into the groove in the front of frame and remove it.
·
Insert the levers supplied with the unit to the grooves at both sides. The unit can be installed or removed from the dashboard.
1. Dashboard
2. Nut (5mm)
3. Spring washer
4. Screw (5 x 25mm)
5. Screw
6. Strap
7. Plain washer
