7

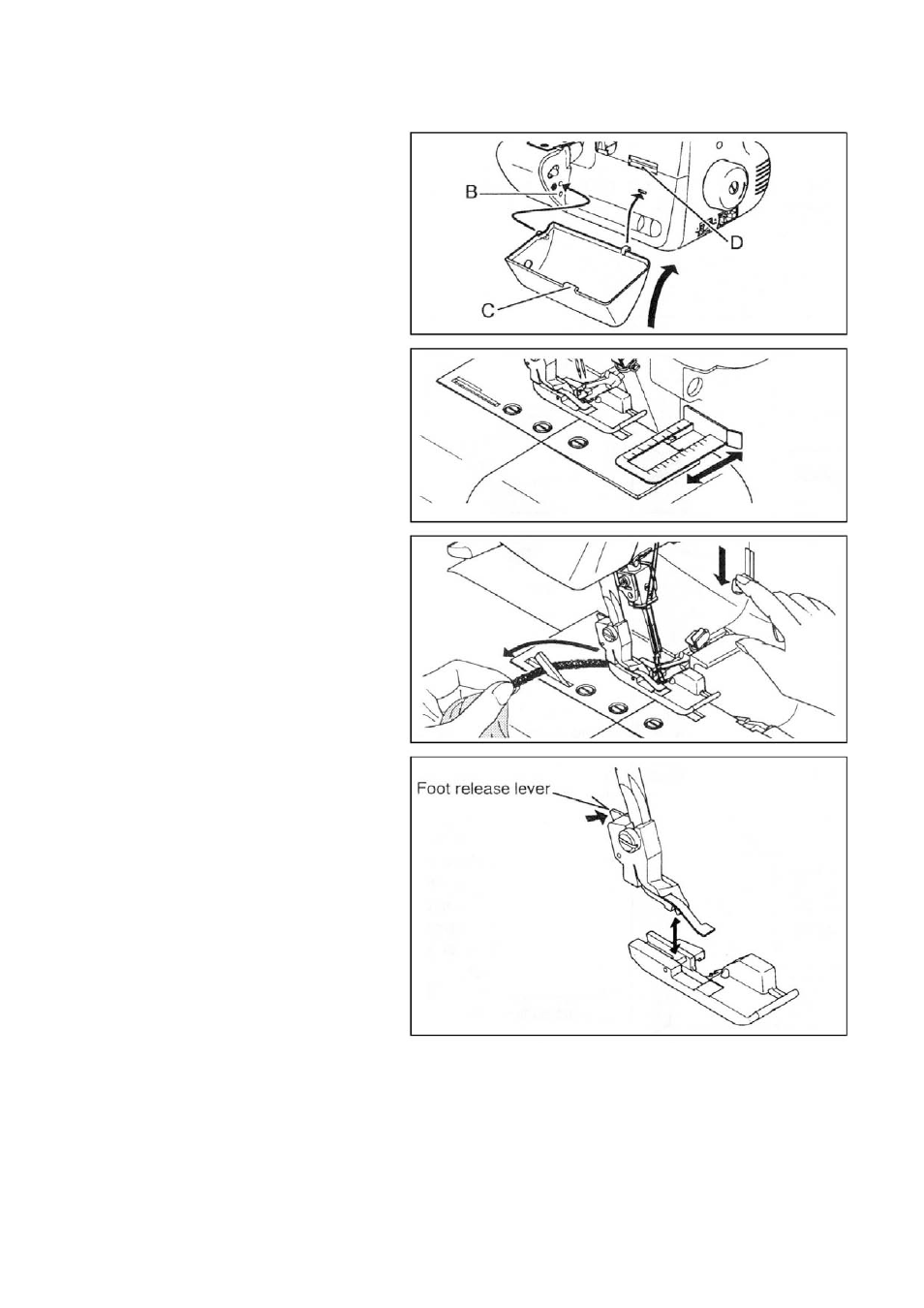

LINT TRAY
With the lint tray located in this position,
it will collect all your waste material.
After completion of work if you then turn
tray upwards in direction shown, finger
Ref C will locate in slot D and left hand
pin will slide into lower hole B.
CUTTING WIDTH GAUGE
When using cutting width gauge, the
fabric is cut down and sewn at same
distance from the edge of fabric.
Within the distance of the width
adjusted.
THREAD CUTTER (Model 320 only)
Thread cutter is built in needle plate.
Make sure that power switch is off, then
trim thread near the end of fabric by
pushing down lever as illustrated.
CHANGING PRESSER FEET
Be sure needle is in the up position.
Raise presser foot lever.
1. Push foot release lever to remove
the foot.
2. Place the desired foot on the needle
plate aligning needle holes.
3. Lower the presser foot lever and
push foot release lever so that the
foot holder snaps on the foot.
