Audio Source Selection
The PAV80 system offers unprecedented control over the internal and external
audio sources, for true multi-tasking audio. The split functions allow the crew to
listen to a different audio source than the passengers, or the same source.

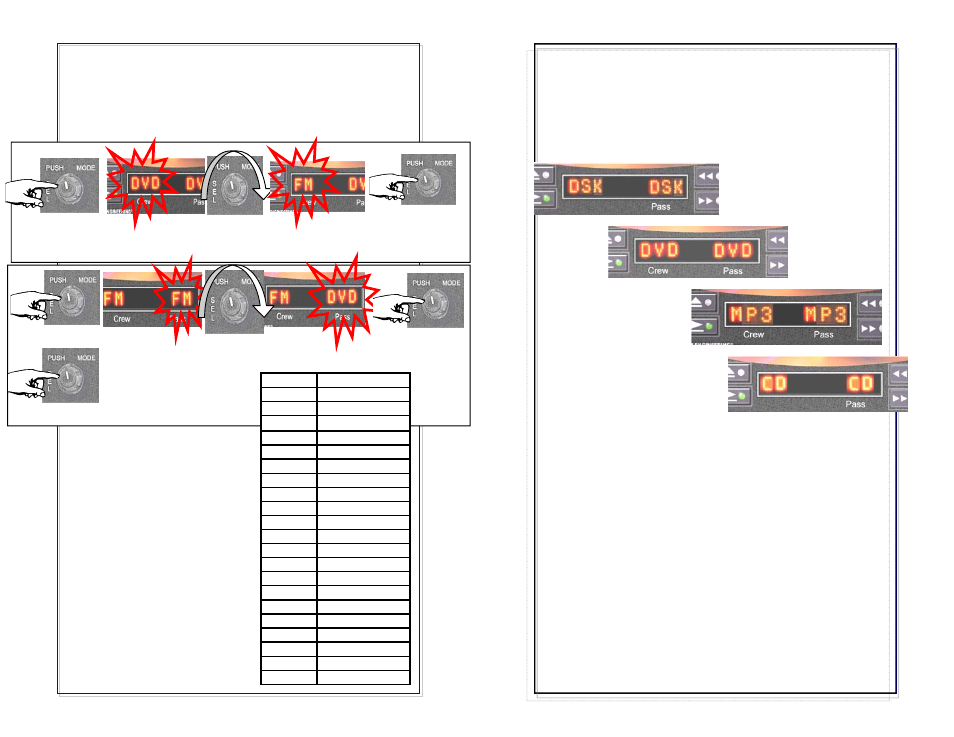

Source Selection
Push the right knob (MODE) to enter the
source selection mode. When the button is
pushed once, the left side of the display
(Crew) can be changed. Push again and the
passengers’ audio source is changed. The
mode is accepted- Locked in- when the but-
ton is pushed again.
to change the passengers’ audio source,
press the mode button twice, until the right
side of the display blinks. Then select the
source, and press again to accept your new
audio source.
Audio Combinations
The PAV80 has effectively three different
audio sources, the internal disc (DVD, CD,
or MP3), the radio (AM or FM), or an auxil-
iary input. The auxiliary is sub divided into
AUX, which is audio/video from a external
PUSH BLINK TURN SELECT
PUSH
(Accept)
PUSH
PUSH
BLINK SELECT
TURN PUSH
(Accept)
CREW PASSENGERS
DISC DISC
DISC RADIO
DISC AXA
DISC OFF
RADIO DISC
RADIO RADIO
RADIO AUX
RADIO AXA
RADIO OFF
AUX RADIO
AUX AUX
AUX OFF
AXA DISC
AXA AXA
AXA RADIO
AXA OFF
OFF DISC
OFF RADIO
OFF AUX
OFF AXA
OFF OFF
CREW SOURCE SELECTION
PASSENGER SOURCE
SELECTION
PAV80 IFE Pilots Guide Page 7 Rev. 2 August 2003
source, or AXA, which is just the audio portion without video. There is only one
input, so you can’t use AUX and AXA at the same time.
Although the unit is capable of OFF/OFF mode combination, there isn’t any
reason to use this mode, except for silent movies.
Playing discs
Your PAV80 can play many different types of recorded disc media, including
CD, CD-R, CD-RW, MP3, and DVD. This means that virtually any music you
have, from a prerecorded audio CD, or a home movie stored on a DVD, can be
played in your unit.
Simply insert the disc into the slot. The PAV80 will accept the disc, and auto-
matically detect the type of media.
PAV80 panel Unit Display Dimming
The display is adjusted for ambient light conditions by the connection to the
aircraft dimmer bus. If the radio light dimmer is turned all the way off, the dis-
play will be at full intensity. So, if your PAV80 display seems dim, check your
radio light dimmer control.
No disc Inserted
DVD disc Inserted
MP3 disc Inserted
Audio CD disc Inserted
