Output Power Rating: 12+ watts RMS @ 5% THD, 4 ohm load
Low: ±15dB @ 80Hz
Mid: ±15dB @ 650Hz
High: ±15dB @ 10kHz
Input Impedance: 1.5M ohm
Max Input Signal: 7v peak to peak
Total System Gain: 52dB @ 1kHz
Input Sensitivity: 20mV
Internal Speakers: 8” Crate Custom Design, 4 ohm, 15 watts; Piezo Tweeter
Power Requirements: 120VAC, 60Hz, 30VA
100/115VAC, 50/60Hz, 30VA
230VAC, 50/60Hz, 30VA
Size and Weight: 14”H x 14”W x 12”D, 21 lbs.
Technical Specifications:

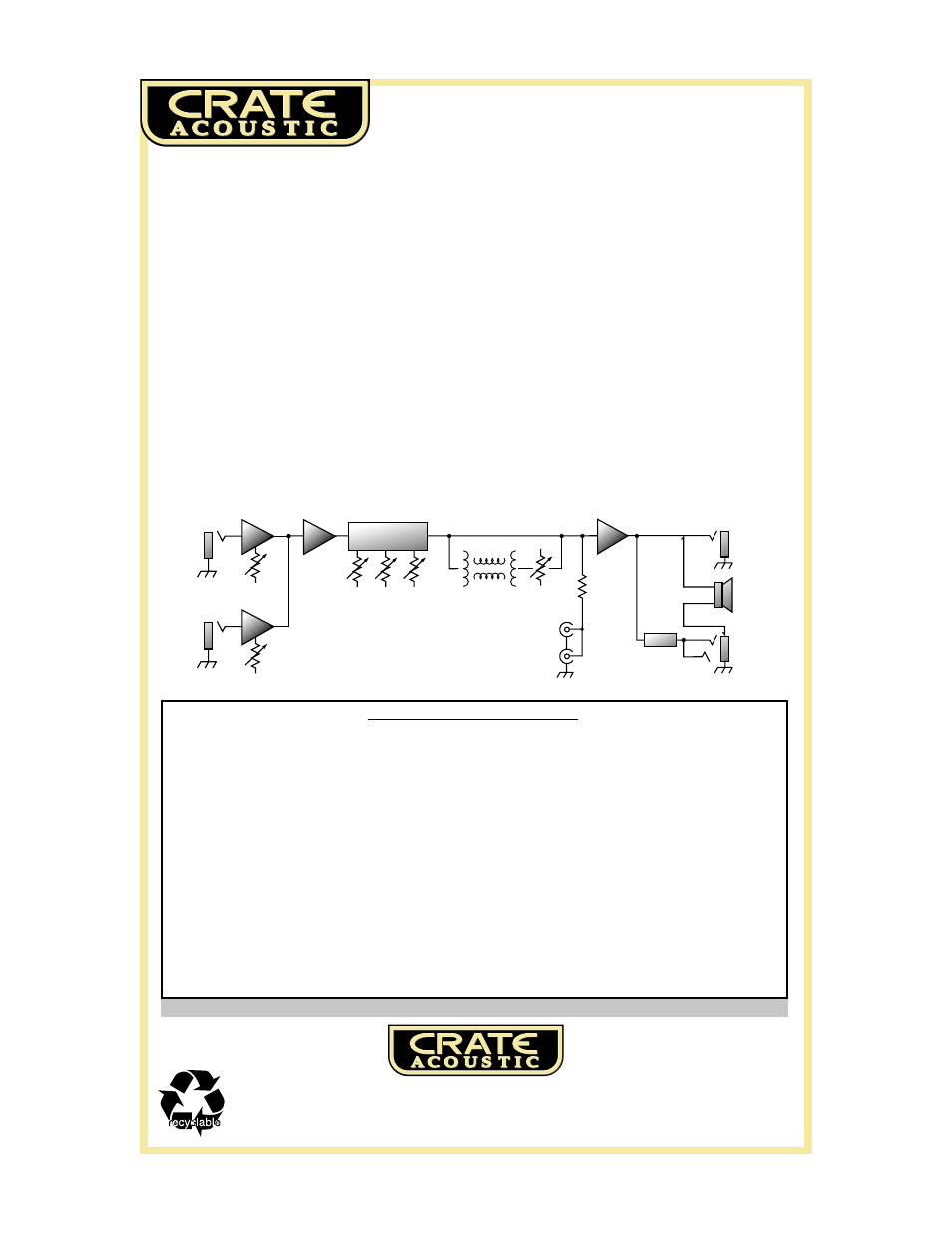

System Block Diagram:
Specifications and information in this manual are subject to change without notice.
CA15 Acoustic Amplifier
Declaration Of Conformity
#33, Effective 01-01-2001
Manufacturer’s Name: SLM Electronics
Production Facility: 1901 Congressional Drive, St. Louis, MO 63146, USA
Production Facility: 700 Hwy 202 W, Yellville, AR 72687, USA
Shipping Facility: 1400 Ferguson Ave., St. Louis, MO 63133, USA
Office Facility: 1400 Ferguson Ave., St. Louis, MO 63133, USA
Product Type: Audio Amplifier
Complies with the following Standards:
Safety: EN60065, E60065, C22.2, UL6500 and/or UL813
EMC: Directive 89/336/EEC, EN55103, EN55013, EN61000,
and/or FCC 47CFR 15B clA
Supplementary information provided by:
SLM Electronics - R & D Engineering
1901 Congressional Drive, St Louis, MO 63146, USA
Tel.: 314-569-0141, Fax: 314-569-0175
GAIN
GAIN
INPUT
CHANNEL 1:
CHANNEL 2:
INPUT
LOW MID HIGH
EQ EXTERNAL
SPEAKER
HEAD
PHONES
POWER AMP
SPEAKER
ATTENUATOR
CD
INPUT
REVERB
LEVEL
REVERB
