4-Port PoweredUSB 2.0
External Hub
Features
Dell Retail Integrator compatible
Adds 4 PoweredUSB ports
Translation convertor on all ports
One +24 volt at 2.3A
Three +12 volt at 1.5A each
Short circuit and overcurrent protected
Designed to support multi-function
printer power requirements
Peripheral power control by stand-by/wake
commands
External LED to show USB port status
Two year warranty

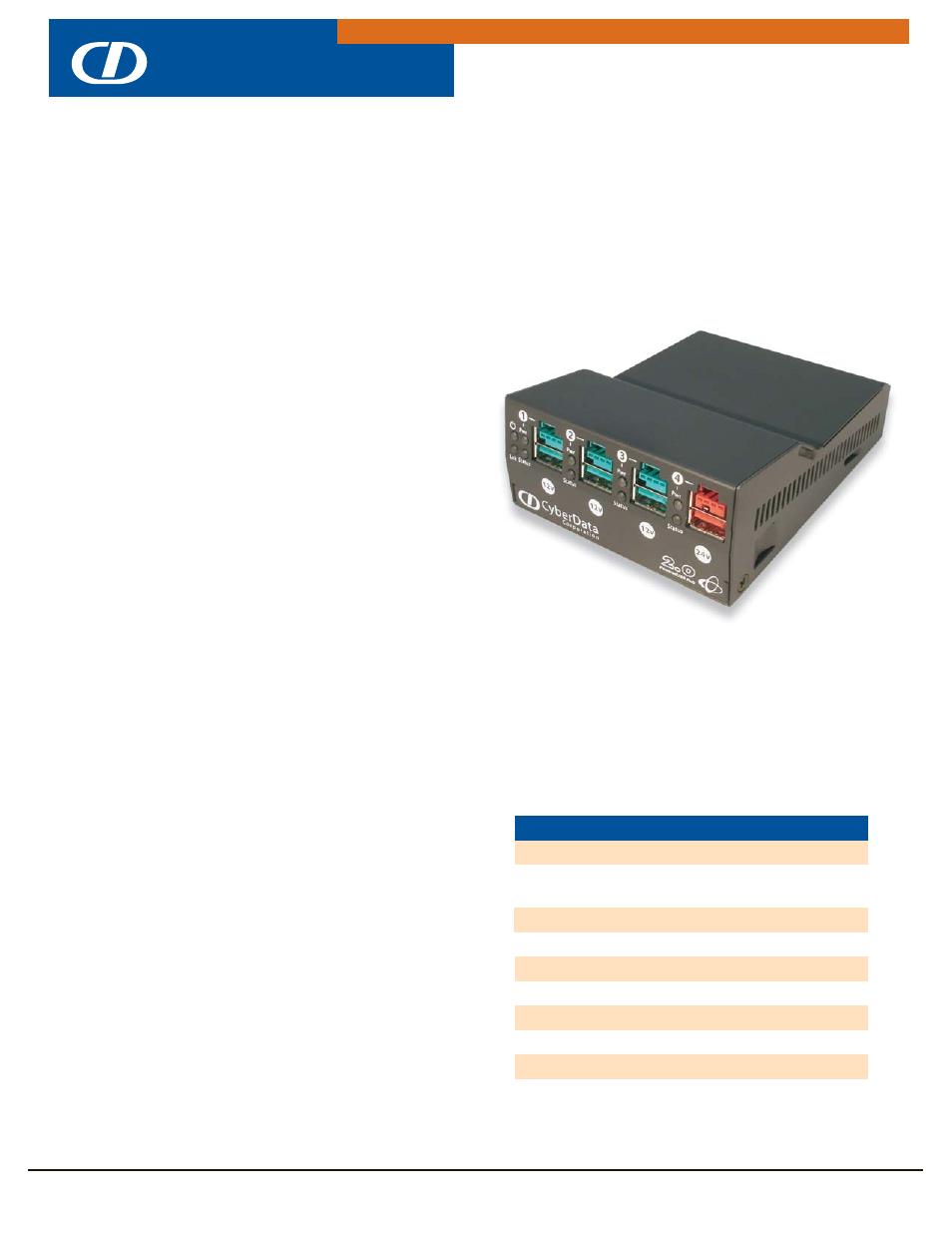

The CyberData 4-Port PoweredUSB 2.0
Hub provides a simple and affordable way
to add up to four 2.0 compliant
PoweredUSB ports to your PC. With this
plug and play upgrade, it is easy to connect
POS peripherals which require more than
the normal power provided by a standard
USB connection, thus eliminating the need
for cumbersome power supply bricks.
Translation Technology
CyberData's USB 2.0 translation technology
allows each PoweredUSB port to
communicate to the host PC at 2.0 speeds,
even if the attached device is only USB 1.1
compliant.
Compatibility
IBM PC Windows 98SE, 2000, & XP compatible.
Apple Computer & Linux also supported.
USB Standard 2.0 is fully supported.
External Power Supply
24V, 120W power supply included.
PoweredUSB Ports 4
Power Output*
(Standard)
Port Baud Rates
1 @ 24V 2.3A
3 @ 12V 1.5A each
480Mbps, 12Mbps, 1.5Mbps
2 year limited
Power, link & status
FCC Class B, UL 60950-1, CE
Warranty
010807 Part Number
External LEDs
Regulatory Compliance
*All ports support standard "A" type +5V USB connection.
PoweredUSB External Hub Specifications
Power Input 24VDC
CyberData Corporation 2555 Garden Road Monterey, California 93940
(831) 373-2601 (831) 373-4193 www.cyberdata.net
930176A/070123 CyberData Corporation
