phil&teds bebe hs - Manual (Page 2)

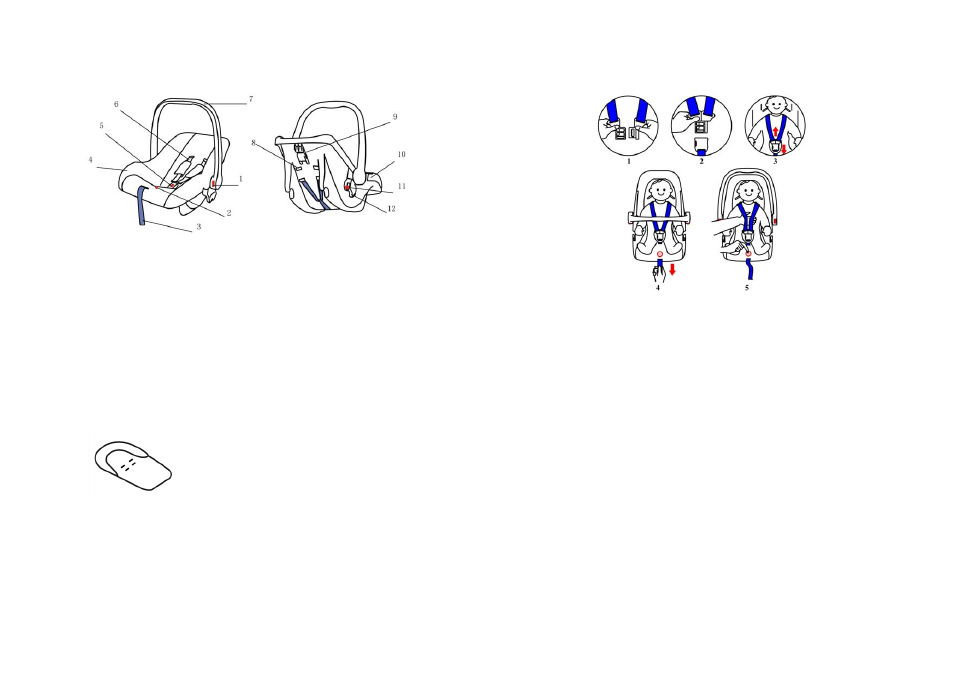

GETTING TO KNOW YOUR CHILD SEAT
1. Red button handle
6. Shoulder straps
adjuster 7. Carry handle
2. Harness adjuster under 8. Shoulder harness slots
‘Press’ 9. Dark blue diagonal belt guide
3. Harness adjuster strap 10. Light blue lap belt guide
4. Cover 11. Red switch
5. Harness buckle 12. Coupler
SUPPORT FOR NEWBORNS
Head pad insert
Head and neck support for newborns.
THE HARNESS
FASTENING THE HARNESS
• Slot the two plastic sections of the buckle connectors together
Fig 1
• Slot the two connectors into the hole in the top of the buckle
until they “click” into place Fig 2
• Always check that the harness is correctly locked by pulling
above and below the buckle Fig 3
• The harness should be adjusted as tightly as possible without
causing discomfort to the child. A loose harness is dangerous
and should be checked each time that you use the seat. To
tighten the harness, pull down on the adjustment strap until
the harness is the correct tightness Fig. 4
• The harness is loosened by pulling on both straps at the same
time press down on the harness adjuster that is located on the
shell underneath the “Press” word stitched on the cover Fig. 5
UNFASTENING THE HARNESS
To release the harness, push the red button in the middle of the harness
buckle inwards. You can now lift your child from the seat; ensure that
the buckle connectors do not catch on clothing.
