4 Connection to the computer

IBM PC, PC/XT, PC/AT, PS/2, or the compatibles:

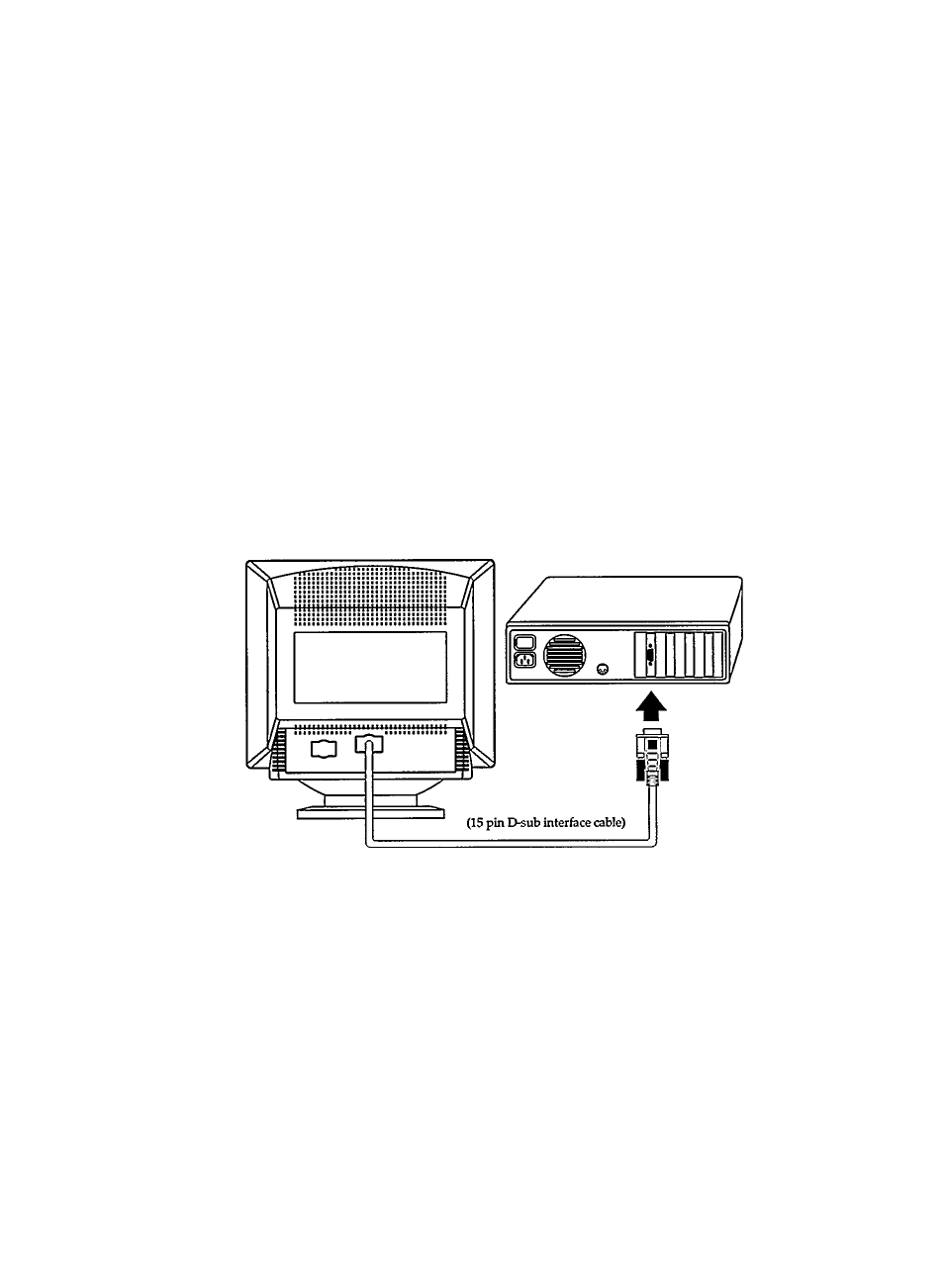

• Connect the fixed 15-pin D-sub connector of the video signal

cable to the computer at the video connector on the video card,
and fix it firmly with the screws on the plug.
