VCS3506BI / VCS5006BI Assembly
Step 5: Assemble the Grease Tray Front and Handle
Parts Required:
Note:
Service Note:
(1) Grease Tray Front
(1) Handle (with screws)
(2) #10 Bolts
(2) #10 Nuts
Remove the Grease Tray from the front of the Grill
Base (Below the Control Console). Remove the
protective plastic from the Grease Tray Front
and attach it to the front lip of the Grease
Tray with the two (2) #10 Bolts and
tighten using the two (2) #10 Nuts.
Next: Attach the handle to the tray
with the two (2) screws supplied
with the handle.
Do not reinsert the Grease Tray
into the Grill Base at this time.
Due to the shallow depth of
the grease tray, ensure it is cleaned frequently
to avoid a possible “Grease Fire”.

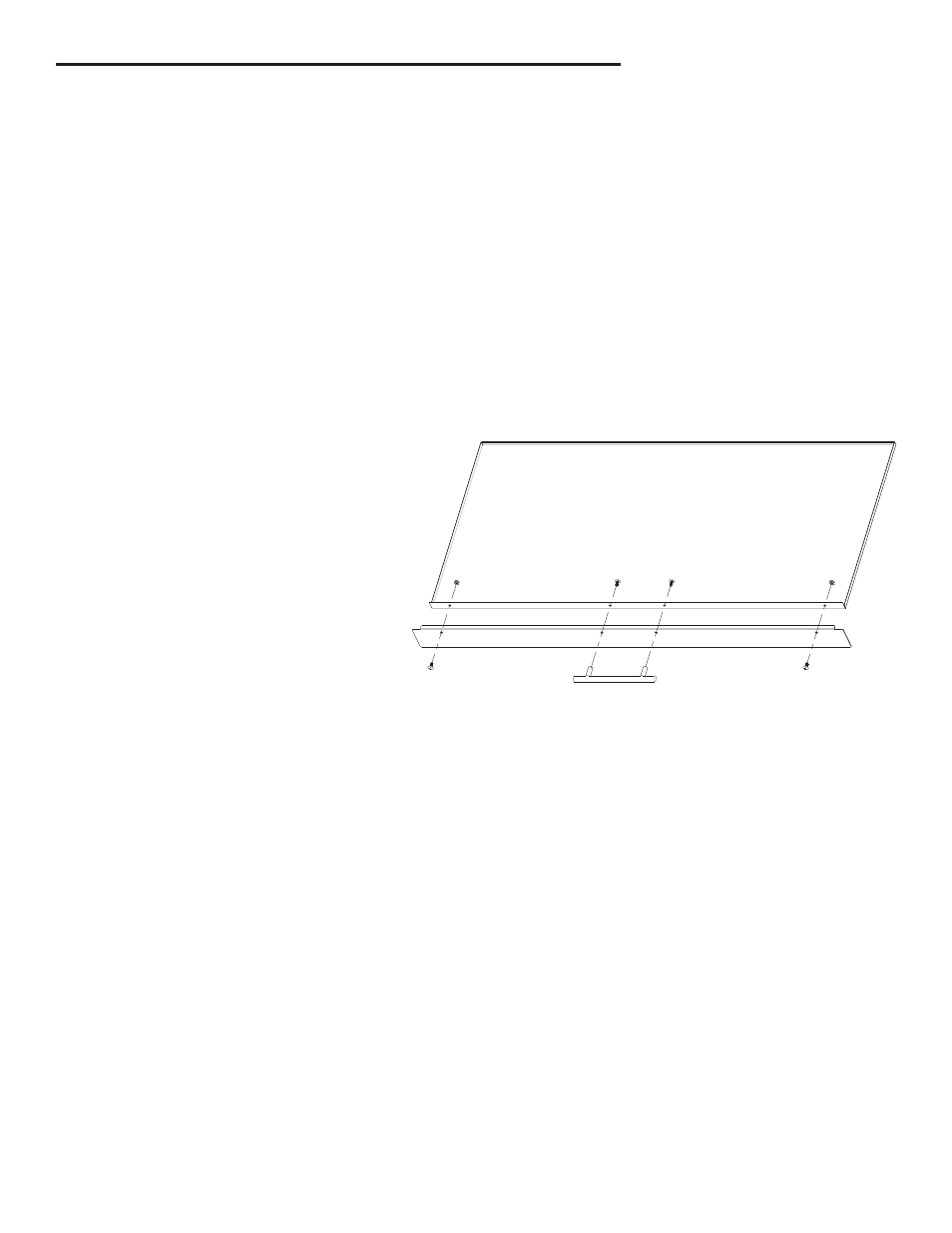

Fig. 5
