Contemporary Research Corporation 4 IR TV Controller
Specifications
Physical
Size: 8.5" [216mm] wide x 1.75" [38mm] height (1RU) x 6.0" [153mm] deep
Weight: 1.5 lbs [0.68kg]
Enclosure: All aluminum with durable black powder coat paint
Mounting: Mounts above or below TV, optional RK2 brackets available
Front Panel
Push Buttons: Channel up and down, Volume up and down, and Power
Power LED: Red LED lights when TV is on
Net LED: Green LED for iC-Net bus, flashes once per second if active
IR In LED: Red LED lights when receiving IR commands from remote
IR Out LED: Red LED lights when sending IR commands
Volume Up/Down: Buttons adjust volume of IRC audio output
Channel Up/Down: Buttons select list of channels stored in IRC Tune Ring

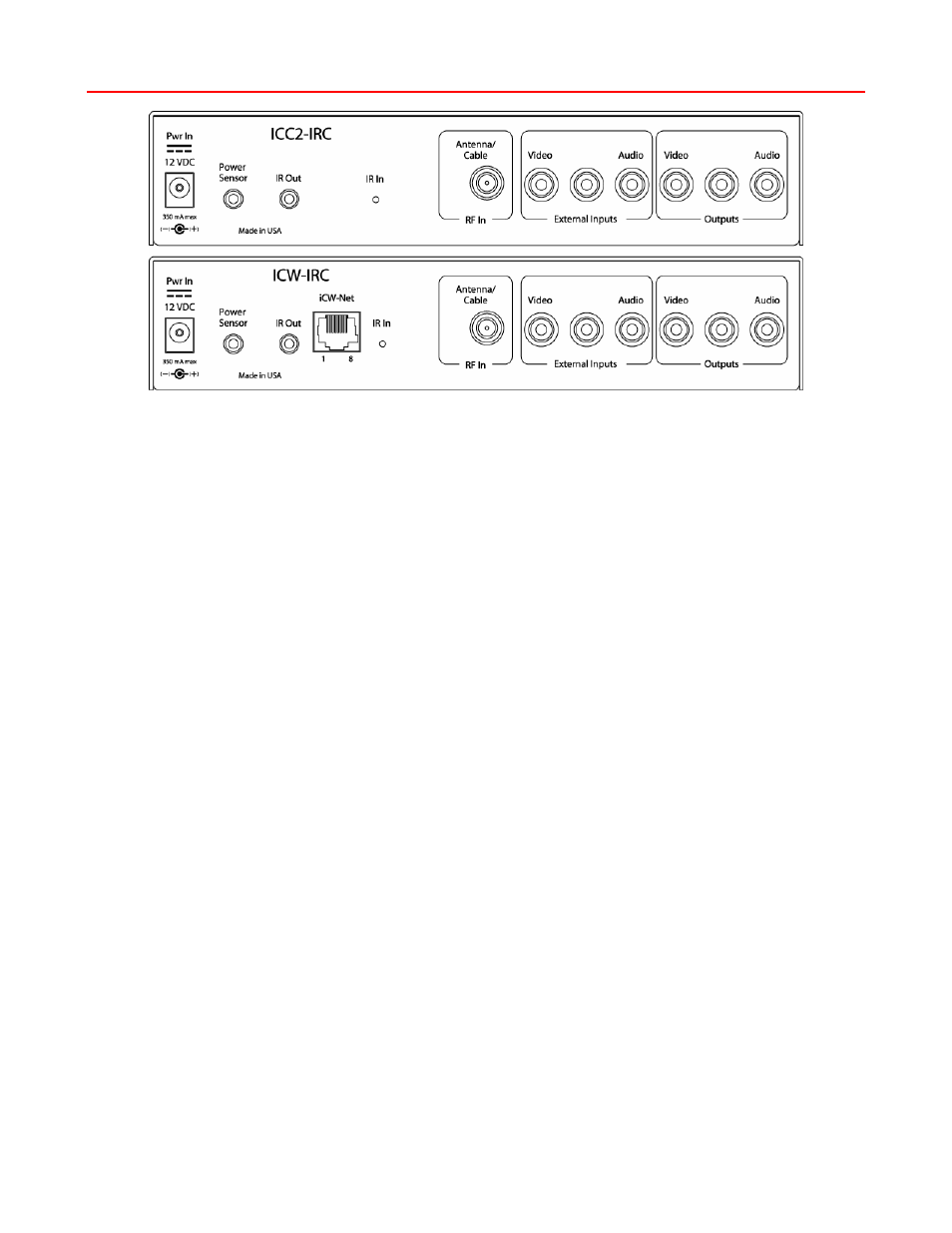

Rear Panel
Power In: 2.1mm coaxial jack (inside center conductor positive), 350 Ma maximum
11.5 to 16.5 VDC, 12 VDC typical (may be unregulated)
North American version includes UL/CSA listed wall power supply
Power Sensor: 3.5mm jack for optional CC-HSD scan sensor or 5V logic-level input
IR Out: 3.5mm jack for CC-IRE IR Emitter cable or compatible CC-IRS serial cable
Supports carrier frequencies up to 62 KHz
Shipped with CC-IRE cable, 10 foot with stick-on IR emitter
Antenna/Cable: ‘F’, female, 75 ohm impedance
A/V Inputs: Video - RCA female, NTSC composite
Audio – 2 RCA female, mono 20K ohms unbalanced
A/V Outputs: Video - RCA female, NTSC composite
Audio – 2 RCA female, mono 1K ohms, 20Hz to 20KHz
0.5% maximum, 0.1% typical THD, 500mV RMS typical at max volume
Volume control 0 to -62 dB and mute in 64 steps
IR In Mounting hole for optional external IR sensor input jack
Internal Closures
Type: 2 Solid-State output switch closures, max 50 mA, 24 VDC
Closure 1 normally used for optional buzzer
Closure 2 normally used for an external camera power relay (by others)
Available as factory-installed option only
