NOTE : Other than the maintenance steps mentioned in this manual, all tool service
must be performed only by qualified service technicians. Service or maintenance
performed by unqualified personnel could result in a risk of injury. Lubricate the
Handle Assembly, Handle Socket, Lift Arm, Wheels, and Lift Arm Linkage before first
use and at least twice per month (more often during heavy use) as shown in Figure 6.
HANDLE ASSEMBLY
OIL FILL PLUG (#31A)
FIGURE 5
HANDLE ASSEMBLY
LIFT ARM LINKAGE
HANDLE SOCKET
LIFT ARM
WHEELS

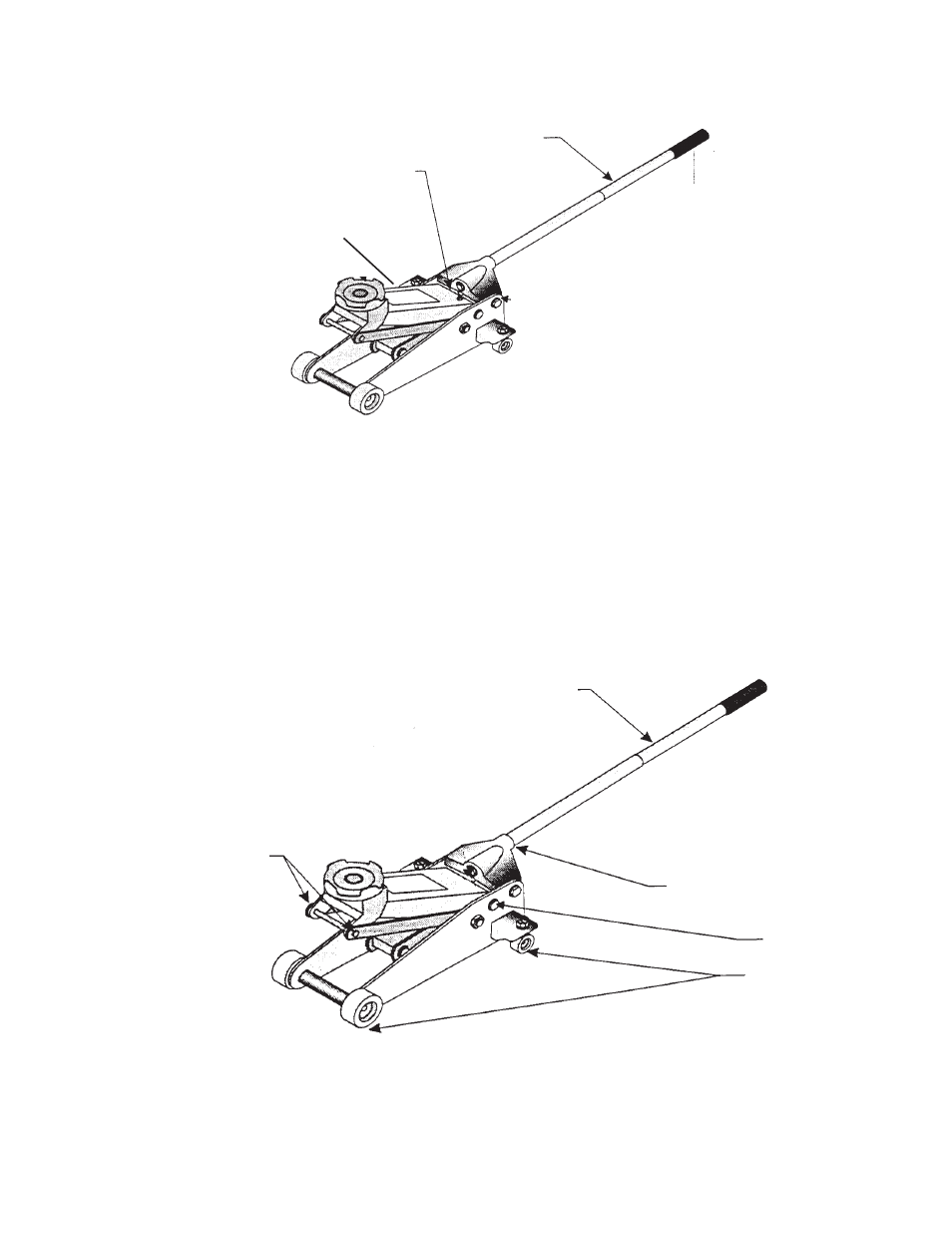

FIGURE 6
LUBRICATION POINTS
LIFT ARM ASSEMBLY
