SoundMax SM-CMD3003 User Manual
Page 7
7

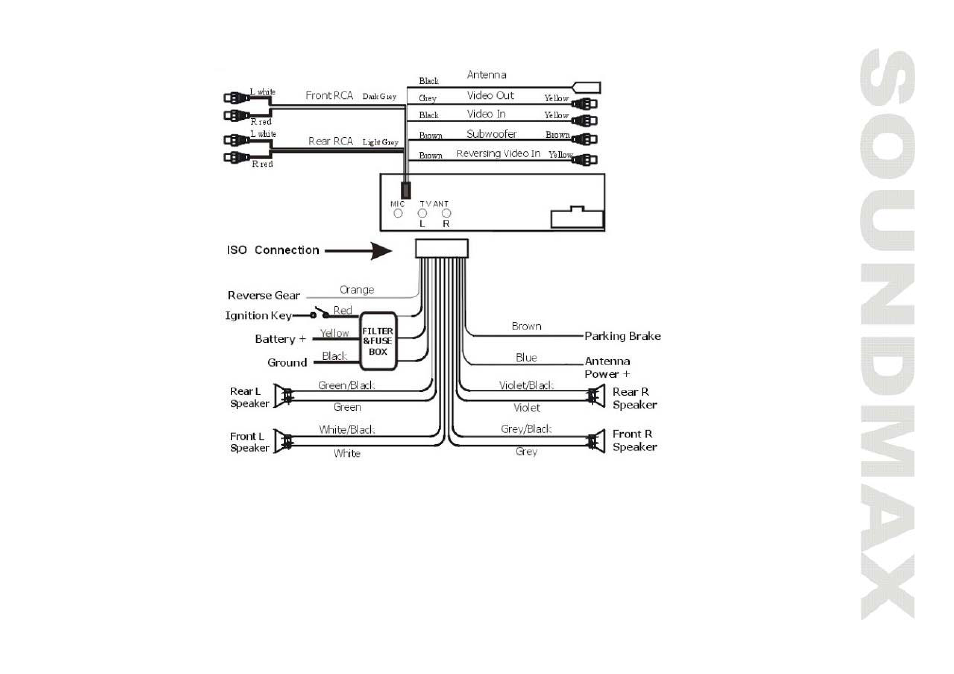

Connection diagram
Notes:
-
In spite of having any kinds of speaker system, must use 4 ohms impedance of speaker to reduce the
distortion during high volume level.
-
It is prohibited to make the conductors of auto antenna and ground touch with each other.
-
For your driving safety, please link your parking brake wire with low power level, and keep it controlled
by manual brake switch. Wire should be high power level and the unit cannot play video disc.
