Wiring diagram – Clarion VMA5894 User Manual

Page 18

background image

1. Audio L
2. IR GND
3. Audio R
4. VIDEO GND
5. VIDEO

6. 12V GND
7. IR
8. 12V
9. GND

or

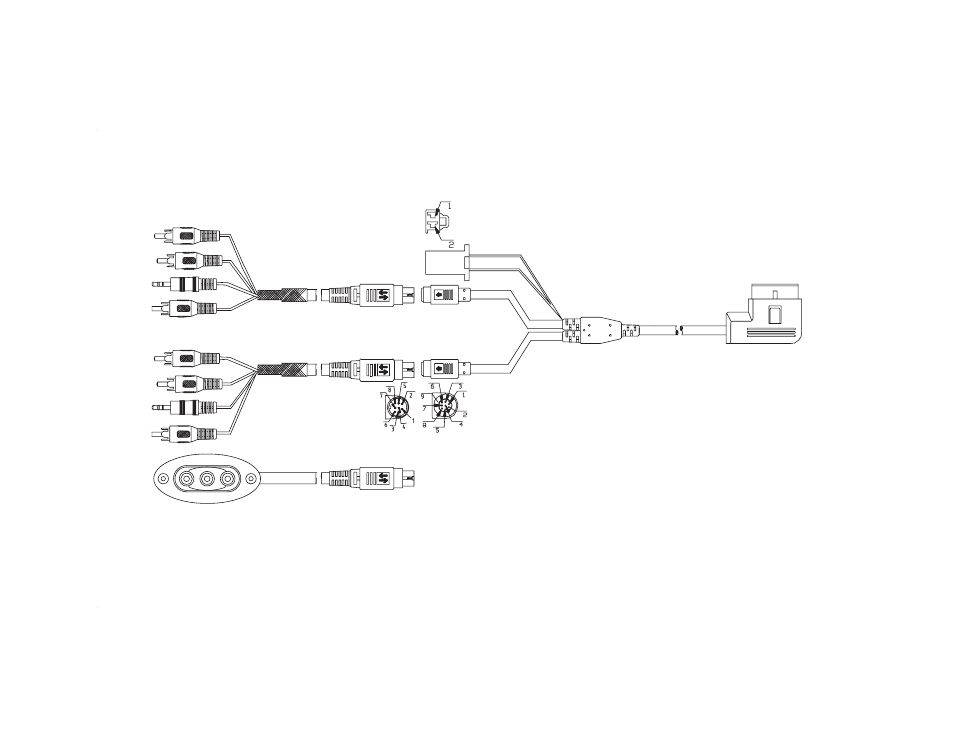

Connections diagram

VMA5894 and VMA7194

18

To monitor

- (negative)

+ (positive)

From VCR, DVD
player, etc.

From game port,
camcorder

This manual is related to the following products:

VMA7194
