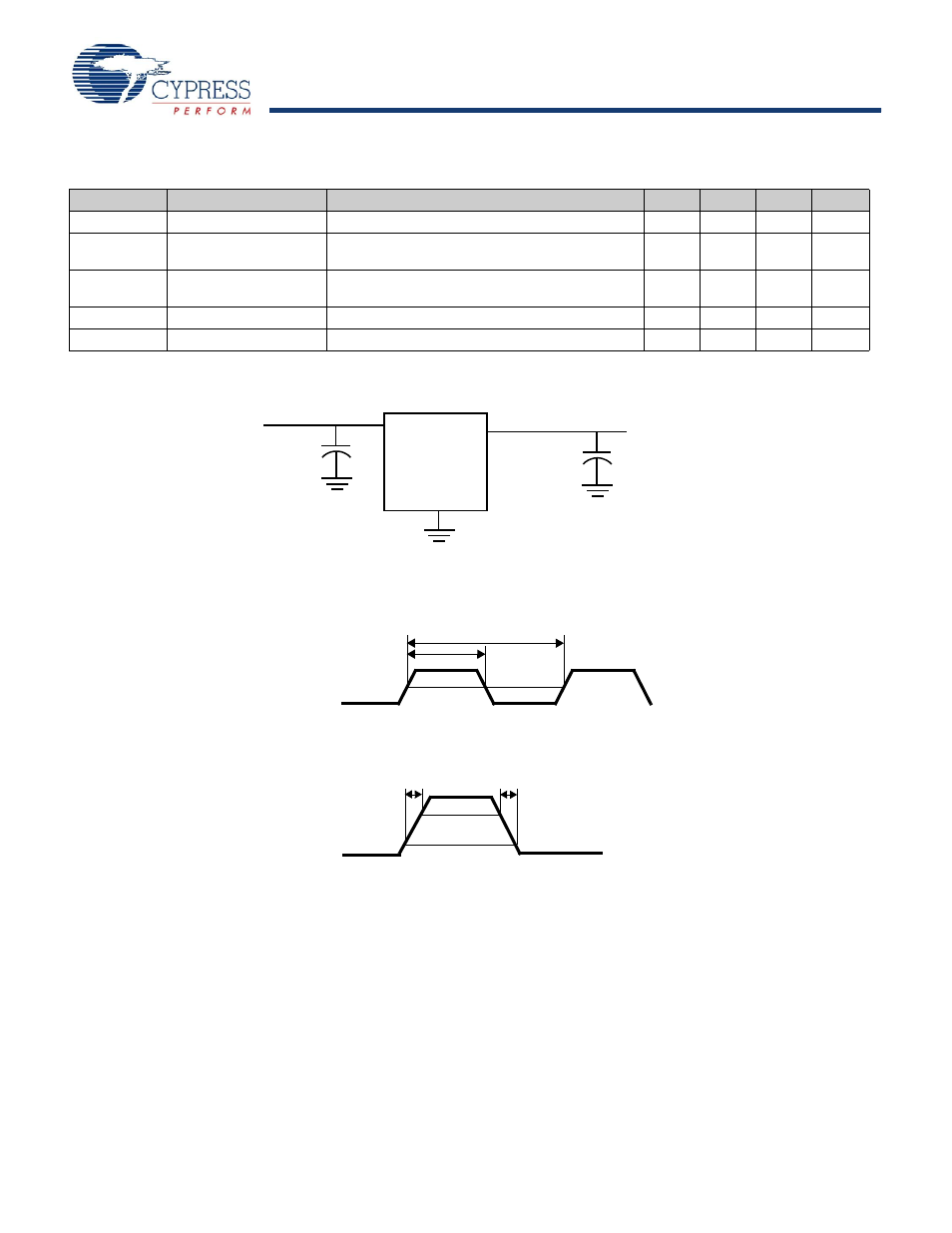

AC Electrical Characteristics
(V
DD
= 3.3V)
Parameter [3] Description Conditions Min Typ. Max Unit
DC Output Duty Cycle Duty Cycle is defined in Figure 3 50% of V
DD
45 50 55 %
ER
0
Rising Edge Rate Output Clock Edge Rate, Measured from 20% to
80% of
V
DD,
C
LOAD
= 15 pF Figure 4 .
0.8 1.4 – V/ns
EF
1
Falling Edge Rate Output Clock Edge Rate, Measured from 80% to
20% of
V
DD,
C
LOAD
= 15 pF Figure 4 .
0.8 1.4 – V/ns
t
9
Clock Jitter Peak-Peak period jitter maximum absolute jitter – 200 250 ps
t
10
PLL Lock Time – – 3 ms
Figure 2. Test Circuit
0.1
μF
VDD
CLK out
C LOAD
GND
OUTPUTS
t1
t2
CLK
50% 50%
Figure 3. Duty Cycle Definition; DC = t2/t1
t3
CLK
80%
20%
t4
Figure 4. Rise and Fall Time Definitions: ER = 0.6 x V
DD
/t3, EF = 0.6 x V
DD
/t4
