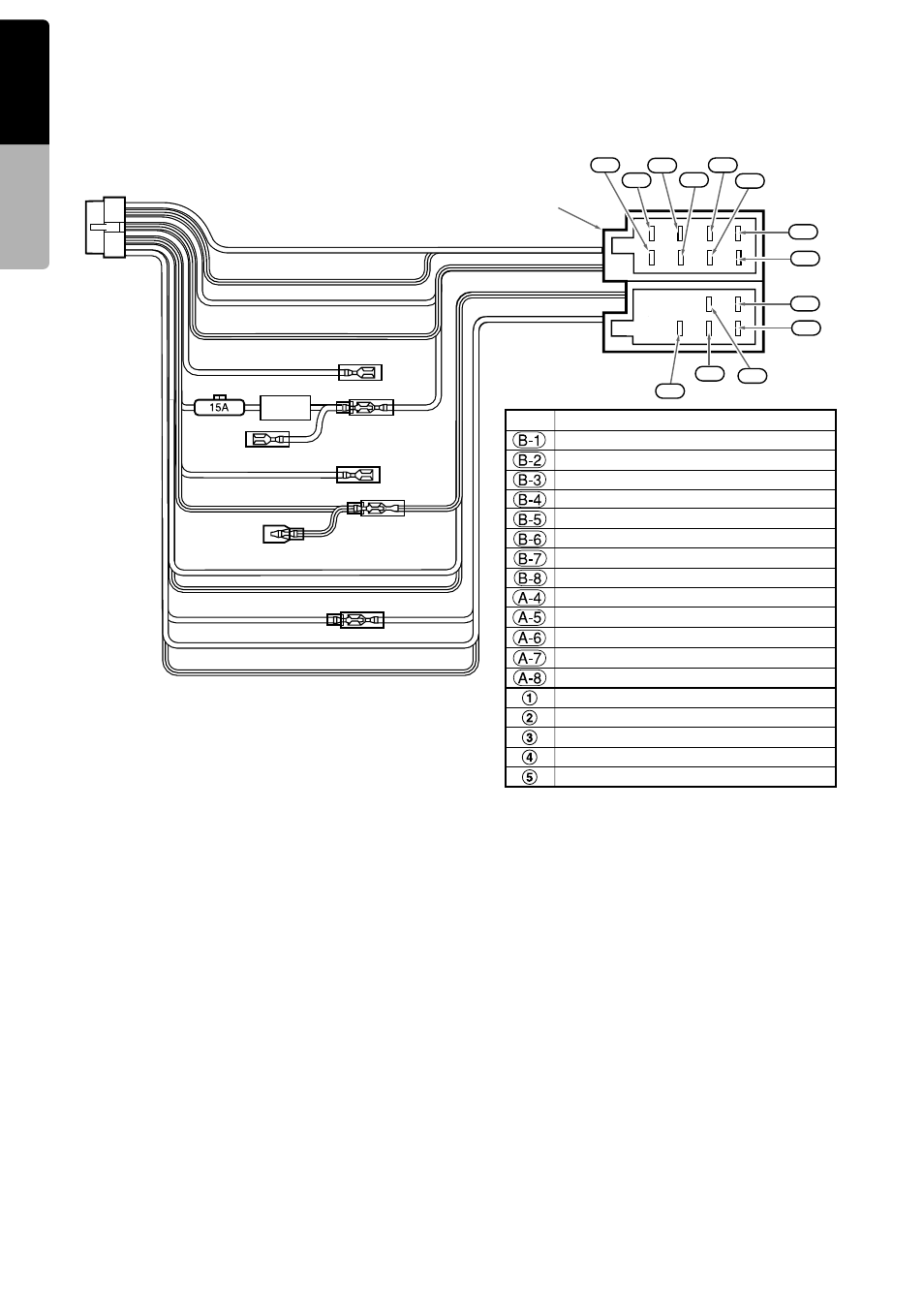

Power supply lead
Note:
*1: In certain vehicles - Volkswagen/Opel/Vauxhall - it is necessary to exchange the accessory <> and
the main power <> connection, to avoid overload and loss of memory.
*2: When the unit is installed in a 1998 or later Volkswagen model, make sure to interrupt the <>
output. Disconnect the <> wire and insulate the front ends of this lead. A breakdown may occur
if the lead is not disconnected, or front ends are not insulated.
*3: Connecting the PHONE MUTE Terminal
The lead included with the unit must be connected to the specified position of the vehicle’s connector in
order to use the “Mobile phone interrupt setting” function (see page 29).
See next page for how to connect the parking brake lead.
4
2
∗3
3
B-1 B-6
B-5
B-7
B-8
B-4
B-3 B-2
A-4
A-6
A-8
A-7
1
A-5
∗1
∗2
∗1
5
No. Description
REAR RIGHT
+
REAR RIGHT -
FRONT RIGHT
+
FRONT RIGHT -
FRONT LEFT
+
FRONT LEFT -
REAR LEFT
+
REAR LEFT
-
+12 V MAIN POWER ( ∗ 1)
AMP REMOTE ( ∗ 2)
ILLUMINATION
+12 V ACCESSORY ( ∗ 1)
EARTH
ISO CONNECTOR
Phone terminal (Brown) ( ∗ 3)
Spare terminal (Yellow)
Parking brake (Grass-green)
Spare terminal (Blue/White)
