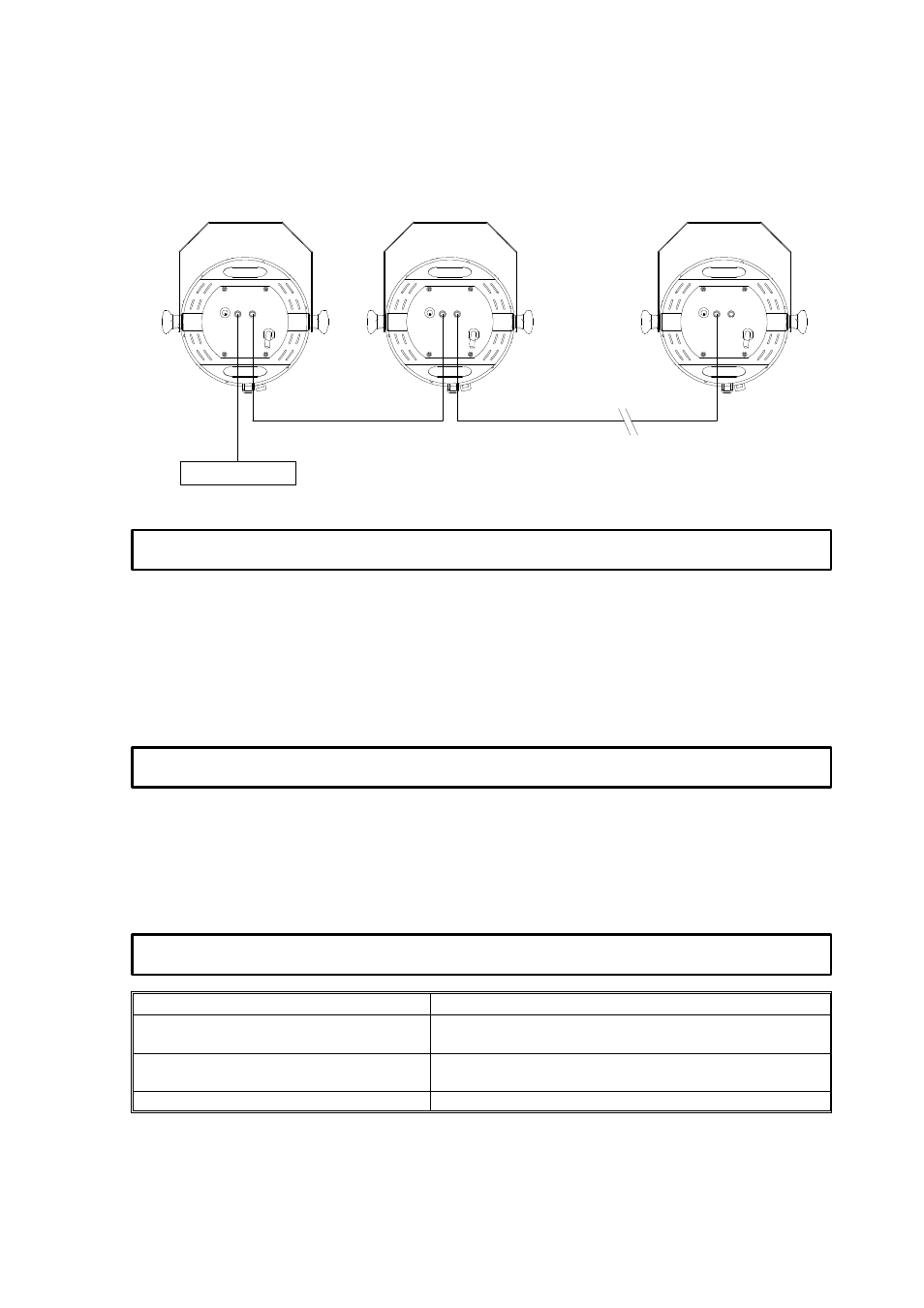

CONNECT THE CONTROLLER AND UNITS
Connect the controller’
s output to the first fixture’ s input, and connect the first fixture’ s output to the
second fixture’ s input. The rest may be deduced by analogy.
If the lamp becomes damaged or deformed in any way it must be replaced. If the light from the lamp
appears dim this would normally indicate that it is reaching the end of its life and it should be changed
at once, old lamps run to the extremity of their life can explode. If the luminaire does not function,
check the fuse on the main PCB inside the unit, it should only be replaced by fuse of the same
specified value 2A/250V (fast blow, 5mmx20mm). Should it be damaged call a qualified technician
before replacement.
Any maintenance work should only be carried out by a qualified technician.
Cleaning frequency depends on the environment in which the fixture operates: damp, smoke or
particularly dirty surroundings can cause greater accumulation of dirt on the unit’
s optics. A soft cloth
and typical glass cleaning products should be used in cleaning. It is recommended to clean the
reflector at least once every 20 days
Do not use any organic solvent, e.g. alcohol, to clean the housing of the unit.
PROBLEM RESOURCE
The luminaire does not start Check the power fuse is blown or not.
Check if the lamp is good or not.
The luminaire switches on but does not
answer to commands Check the audio cable is good.
The beam appears dim Check the lamp is not at the end of its life.
MAINTENANCE
KEEPING THE UNIT CLEAN
TROUBLESHOOTING
CONTROLLER
PR-1388 or PR-1389
Signal
No. 1 No. 2 No. n
INPUT OUTPUT INPUT OUTPUT INPUT
Audio Cord Audio Cord
OUTPUT
