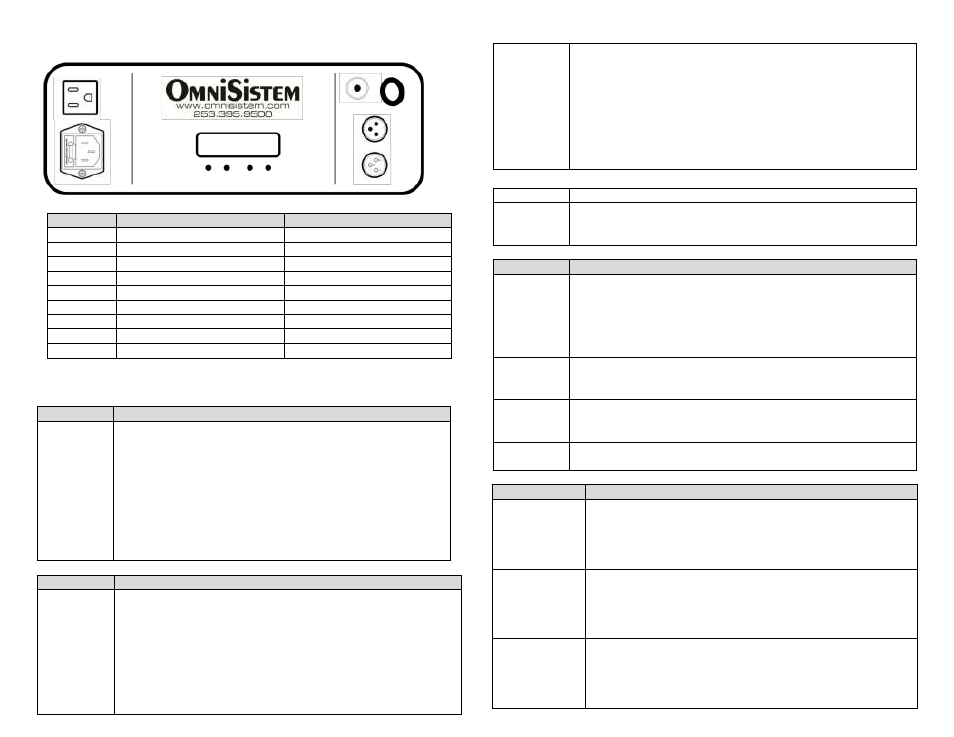

PRODUCT OVERVIEW
DISPLAY KEY
DISPLAY MODE FUNCTION
ADDR DMX ADDRESS SETTING A001 - A512
CHND CHANNEL MODE 1CH 3CH 9CH 15CH 19CH
SLND SLAVE MODE MAST, SL1, SL2
SOUN SOUND ACTIVE MODE SOUND ON/OFF
SENE SOUND SENSITIVITY 0-100
LED DISPLAY ON/OFF ON/OFF
DISP DISPLAY INVERSION INVERTS MENU DISPLAY
TEST TEST MODE SELF TEST
HOUR LIGHT TIME FIXTURE HOURS,0-9999
DMX CONTROL SETTINGS
1 CHANNEL MODE
CHANNEL FUNCTION
CH. 1 000-007 BLACK OUT
008-037 SHOW 1 / SOUND ACTIVE
038-067 SHOW 2 / SOUND ACTIVE
068-097 SHOW 3 / SOUND ACTIVE
098-127 SHOW 4 / SOUND ACTIVE
128-157 SHOW 5 / SOUND ACTIVE
158-187 SHOW 6 / SOUND ACTIVE
188-217 SHOW 7 / SOUND ACTIVE
218-247 SHOW 8 / SOUND ACTIVE
248-255 RANDOM SHOWS 1 - 8 / SOUND ACTIVE
3 CHANNEL MODE
CHANNEL FUNCTION
CH. 1 000-007 NO FUNCTION
008-022 COLOR CHASE 1 (SLOW TO FAST)
023-037 COLOR CHASE 2 (SLOW TO FAST)
038-052 COLOR CHASE 3 (SLOW TO FAST)
053-067 COLOR CHASE 4 (SLOW TO FAST)
068-082 COLOR CHASE 5 (SLOW TO FAST)
083-097 COLOR CHASE 6 (SLOW TO FAST)
098-112 COLOR CHASE 7 (SLOW TO FAST)
113-127 COLOR CHASE 8 (SLOW TO FAST)
128-142 COLOR CHASE 9 (SLOW TO FAST)
143-157 COLOR CHASE 10 (SLOW TO FAST)
158-172 COLOR CHASE 11 (SLOW TO FAST)
173-187 COLOR CHASE 12 (SLOW TO FAST)
188-202 COLOR CHASE 13 (SLOW TO FAST)
203-217 COLOR CHASE 14 (SLOW TO FAST)
218-232 COLOR CHASE 15 (SLOW TO FAST)
233-247 COLOR CHASE 16 (SLOW TO FAST)
248-255 STAND ALONE / SOUND ACTIVE
CH. 2 000-255 DIMMER
CH. 3 000-007 NO FUNCTION
008-247 STROBE SLOW TO FAST
248-255 SOUND STROBE
9 CHANNEL MODE
CHANNEL FUNCTION
CH.
1,2,3,4,5,6 000-255 RED LED DIMMER (CH.1)
000-255 GREEN LED DIMMER (CH.2)
000-255 BLUE LED DIMMER (CH.3)
000-255 WHITE LED DIMMER (CH.4)
000-255 AMBER LED DIMMER (CH.5)
000-255 ALL DIMMER (CH.6)
CH. 7 000-007 NO FUNCTION
008-247 STROBE (SLOW TO FAST)
248-255 SOUND STROBE
CH. 8 000-007 BLACK OUT
008-247 COLOR CHASE (SLOW TO FAST)
248-255 SOUND ACTIVE
CH. 9 000-007 HOLD
008-255 SPEED (SLOW TO FAST)
15 CHANNEL MODE
CHANNEL FUNCTION
CH. 1,2,3,4,5 000-255 RED LED DIMMER (Lense 1)
000-255 GREEN LED DIMMER (Lense 1)
000-255 BLUE LED DIMMER (Lense 1)
000-255 WHITE LED DIMMER (Lense 1)
000-255 AMBER LED DIMMER (Lense 1)
CH. 6,7,8,9,10 000-255 RED LED DIMMER (Lense 2)
000-255 GREEN LED DIMMER (Lense 2)
000-255 BLUE LED DIMMER (Lense 2)
000-255 WHITE LED DIMMER (Lense 2)
000-255 AMBER LED DIMMER (Lense 2)
CH.
11,12,13,14,15 000-255 RED LED DIMMER (Lense 3)
000-255 GREEN LED DIMMER (Lense 3)
000-255 BLUE LED DIMMER (Lense 3)
000-255 WHITE LED DIMMER (Lense 3)
000-255 AMBER LED DIMMER (Lense 3)
