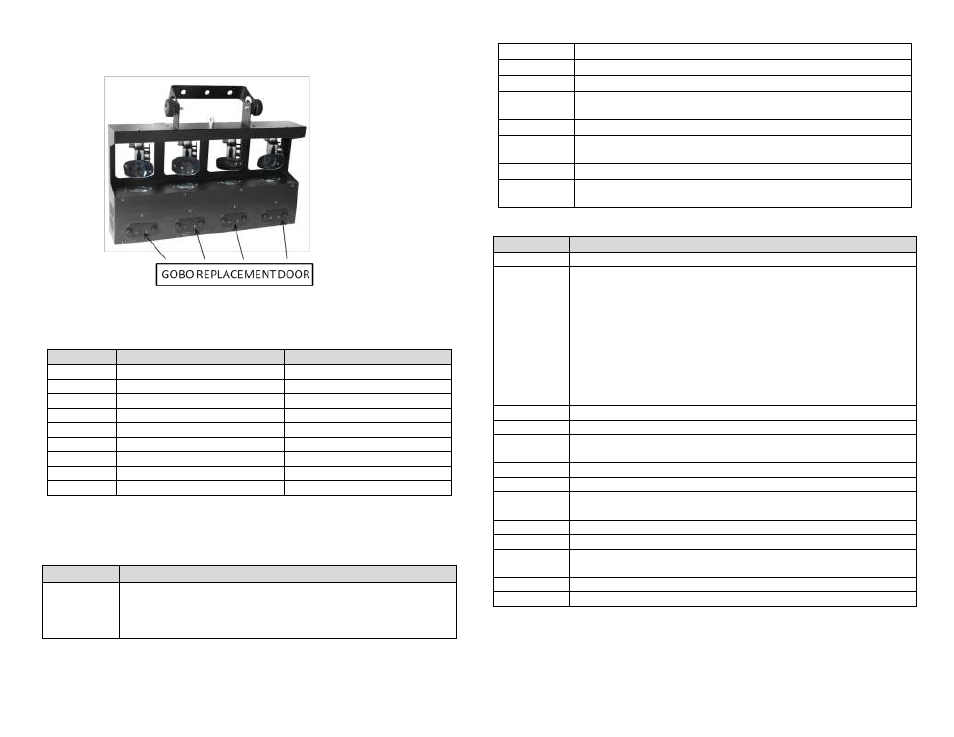

PRODUCT OVERVIEW
*GOBO SIZE - 20.5mm / VIEWABLE 12mm
DISPLAY KEY
DISPLAY MODE FUNCTION
ADDR DMX ADDRESS SETTING A001 - A512
CHND CHANNEL MODE 9 CH / 12 CH
SLND SLAVE MODE MAST, SL1, SL2
SOUN SOUND ACTIVE MODE SOUND ON/OFF
SENE SOUND SENSITIVITY 0-100
BLND BLACK OUT MODE LED MODE, YES - NO
DISP DISPLAY INVERSION INVERTS MENU DISPLAY
TEST TEST MODE SELF TEST
HOUR LIGHT TIME FIXTURE HOURS,0-9999
DMX CONTROL SETTINGS
9CHANNEL MODE
CHANNEL FUNCTION
CH. 1 000-007 BLACK OUT
008-200 DIMMER
201-247 STROBE
248-255 FULL BRIGHT
CH. 2 001-255 RGBW COLOR MIXING
CH. 3 000-255 X-AXIS MOTOR
CH. 4 000-255 Y-AXIS MOTOR
CH. 5 000-007 BLACK OUT
008-255 COLOR MACRO
CH. 6 000-255 COLOR MACRO SPEED
CH. 7 000-007 BLACK OUT
008-255 MOTOR RUN
CH. 8 000-255 MOTOR RUN SPEED
CH. 9 000-127 SOUND OFF
128-255 SOUND ON
12 CHANNEL MODE
CHANNEL FUNCTION
CH. 1 000-007 BLACK OUT
FIRST
HEAD
COLOR
MIX 008-024 RED LED
025-041 GREEN LED
042-057 BLUE LED
058-074 WHITE LED
075-090 RED & GREEN LED
091-107 RED & BLUE LED
108-123 RED & WHITE LED
124-140 GREEN & BLUE LED
141-156 GREEN & WHITE LED
157-173 BLUE & WHITE LED
CH. 2 000-255 FIRST X-AXIS MOTOR
CH. 3 000-255 FIRST Y-AXIS MOTOR
CH. 4 000-007 BLACK OUT
SECOND HEAD COLOR MIX (SAME AS BELOW CH.1)
CH. 5 000-255 SECOND X-AXIS MOTOR
CH. 6 000-255 SECOND Y-AXIS MOTOR
CH. 7 000-007 BLACK OUT
THIRD HEAD COLOR MIX (SAME AS BELOW CH.1)
CH. 8 000-255 THIRD X-AXIS MOTOR
CH. 9 000-255 THIRD Y-AXIS MOTOR
CH. 10 000-007 BLACK OUT
FOURTH HEAD COLOR MIX (SAME AS BELOW CH.1)
CH. 11 000-255 FOURTH X-AXIS MOTOR
CH. 12 000-255 FOURTH Y-AXIS MOTOR
