OmniSistem Magic Box Wide Beam User Manual
Page 4
Operating Modes (Cont.)
Function Selection Chart
DIP SWITCHES CHART
FUNCTION
1 2 3 4 5 6 7 8 9 10
11
12
OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF
╳
SOUND MODE
OFF OFF OFF OFF OFF OFF OFF OFF OFF ON
╳
AUTO MODE
SET SOUND / AUTO MODE
ON
DMX MASTER
ON OFF OFF OFF OFF OFF OFF OFF OFF OFF OFF
DMX SLAVE
SET ADDRESS
OFF OFF
DMX MODE
╳ / : Not Used
Trouble Shooting
If there is no light from the unit, please check the main power supply and fuse.
If unit does not respond to DMX, please check the DMX cables are connected
properly and are wired correctly.
If unit does not response to the music please adjust the sound-active sensitivity
level by Sensitivity Adjustment Knob.
If the beam is fuzzy please refer to “cleaning“ section to clean the mirror first.
If problems cannot be solved please contact your dealer for service
Fuse Replacement
Always disconnect from main power supply before attempting to replace the fuse
Remove the old fuse from the holder and replace with the exact same type fuse.
Replacement with anything other than the specified part may damage your unit.

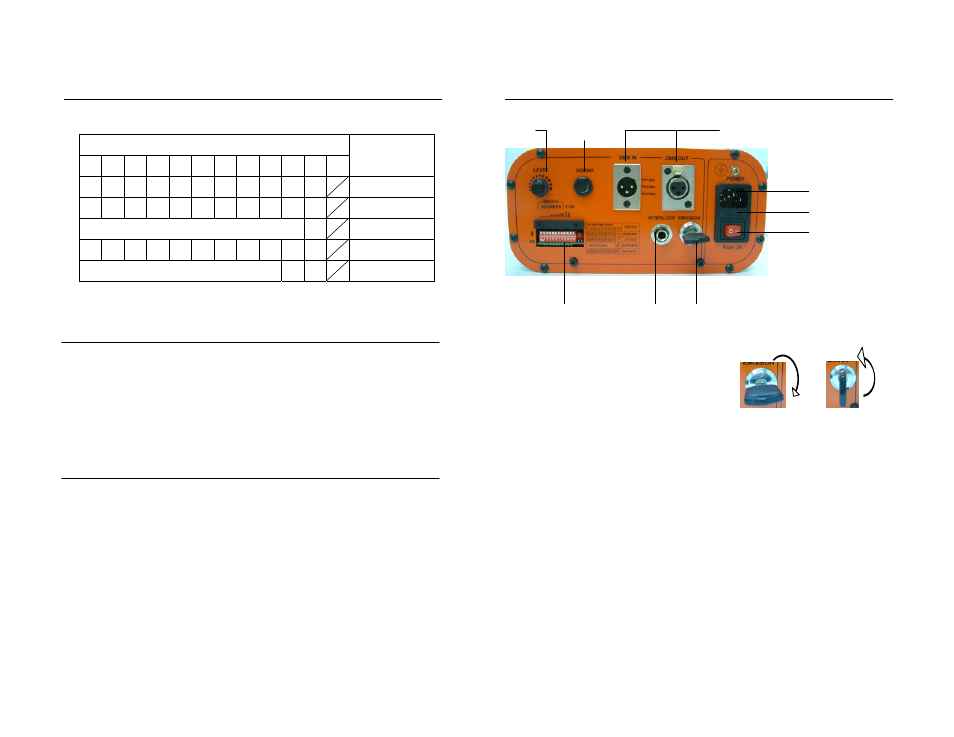

Control Panel Introduction
Key control
Power Cord Connection
Fuse
Power Switch
Sensitivity Adjustment Knob
Microphone
DMX In & Out
DIP Switch Pin
Interlock connector
Key control
ON
OFF
