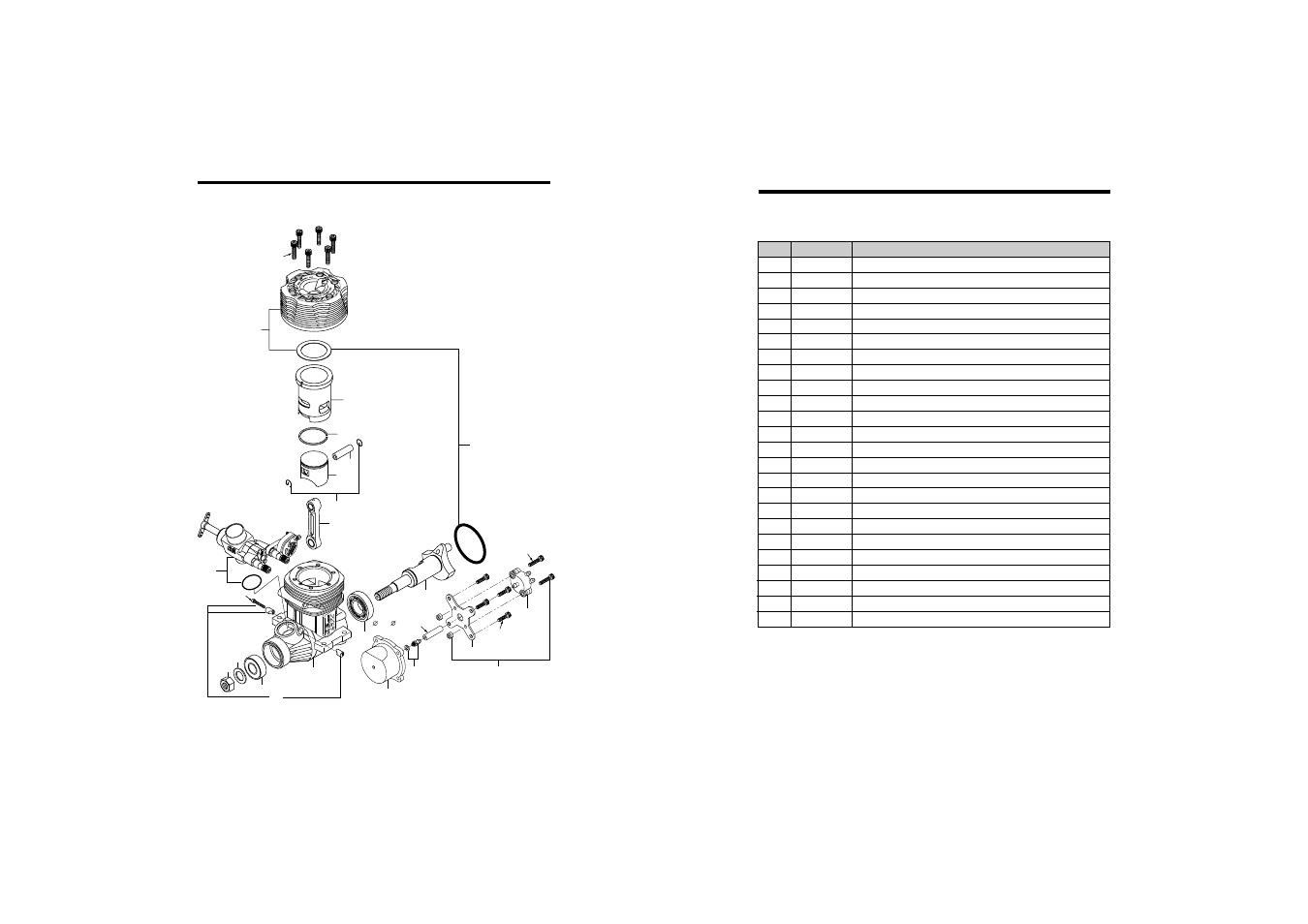

ENGINE EXPLODED VIEW
Type of screw C Cap Screw M Oval Fillister-Head Screw
F Flat Head Screw N Round Head Screw S Set Screw
C.M3x15
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
C.M2.6x18
19
20
2.5x 5.5xL23mm
C.M3x12
17
18
C.M3x15
21
39
The specifications are subject to alteration for improvement without notice.
ENGINE PARTS LIST
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
29064000
29063100
29503400
29063200
27006000
27917000
29505010
29183010
45010002
46120000
26731002
23981700
29061000
27930000
29062000
29061400
29067010
22681953
29067100
72508001
29067110
71608001
27708200
41621100 Heatsink Head
Cylinder Liner
Piston Ring
Piston
Piston Pin
Piston Pin Retainer (2pcs.)
Connecting Rod
Carburetor Complete 60M-P
Propeller Nut
Thrust Washer
Crankshaft Ball Bearing (Front)
Carburetor Retainer Assembly
Crankcase
Crankshaft Ball Bearing (Rear)
Crankshaft
Gasket Set
Cover Plate
Nipple (No.1)
Pump Holder
Pump Unit (PD-07)
Pump Retaining Screw Assembly
Glow Plug No.8
Woodruff Key
Needle Adjusting Screw
No. Description Code No.
