MAX-32SX-H/32SX-H

RING

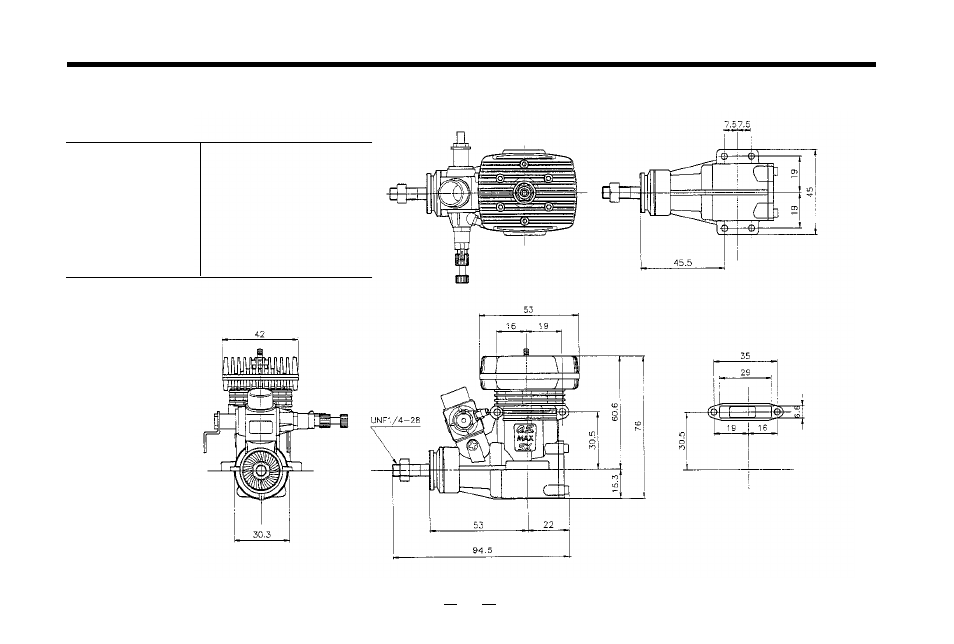

THREE VIEW DRAWING

Displacement
Bore
Stroke
Practical R.P.M.
Power output
Weight

5.23 cc (0.319 cu.in.)
19.5mm (0.768 in.)
17.5mm (0.689 in.)
2,000

~

22,000 r.p.m.

1.2 bhp / 18,000 r.p.m.
290g(10.23oz.) SX-H
285g(10.06oz.) SX-H

RING

■

■
■
■
■

■

SPECIFICATIONS

Dimensions(mm)

27

This manual is related to the following products:

32SX-H
