BASIC ENGINE PARTS
SILICONE TUBING AND O-RINGS
Before installing the engine on the chassis:
1.
2.Fit the exhaust seal ring supplied.
NOTE: With this engine, the piston will feel tight at
the top of its stroke when the engine is cold. This
is normal. The piston and cylinder are designed to
achieve a perfect running clearance when they
reach their normal running temperatures.
Connect the intake chamber and the carburetor with
the silicone tubing supplied.
(Note: In the event of the silicone tubing requir-
ing replacement, use tubing of 2.5mm i.d. 5.5mm
o.d. and 85mm in length.)

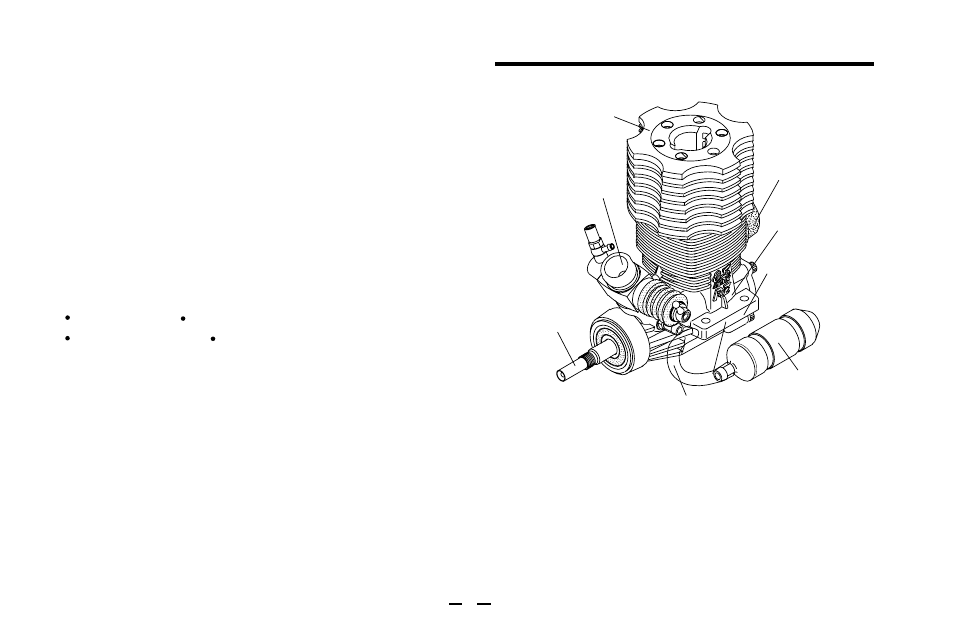

Heatsink Head
Carburetor
Type 20A
Crankshaft
Crankcase
Mounting Lugs
Exhaust
Seal Ring
Intake
Chamber
Silicone Tubing
As delivered, the engine has its carburetor lightly
fit into its intake. Secure it changing its angle
according to the car chassis.
NOTE
Standard accessories
Glow Plug R5 Super Air Cleaner 202
Exhaust Seal Ring Silicone Tubing
The MAX-21RZ-R(P) is high performance
3.5cc class power units for one-eighth-scale
radio-controlled 'Track racing' cars. It has been
designed to meet the exacting requirements of
the world's most expert drivers. An exhaustive
program of research, development and proto-
type testing has resulted in one of the most
powerful production model racing car engines
currently available.
