34

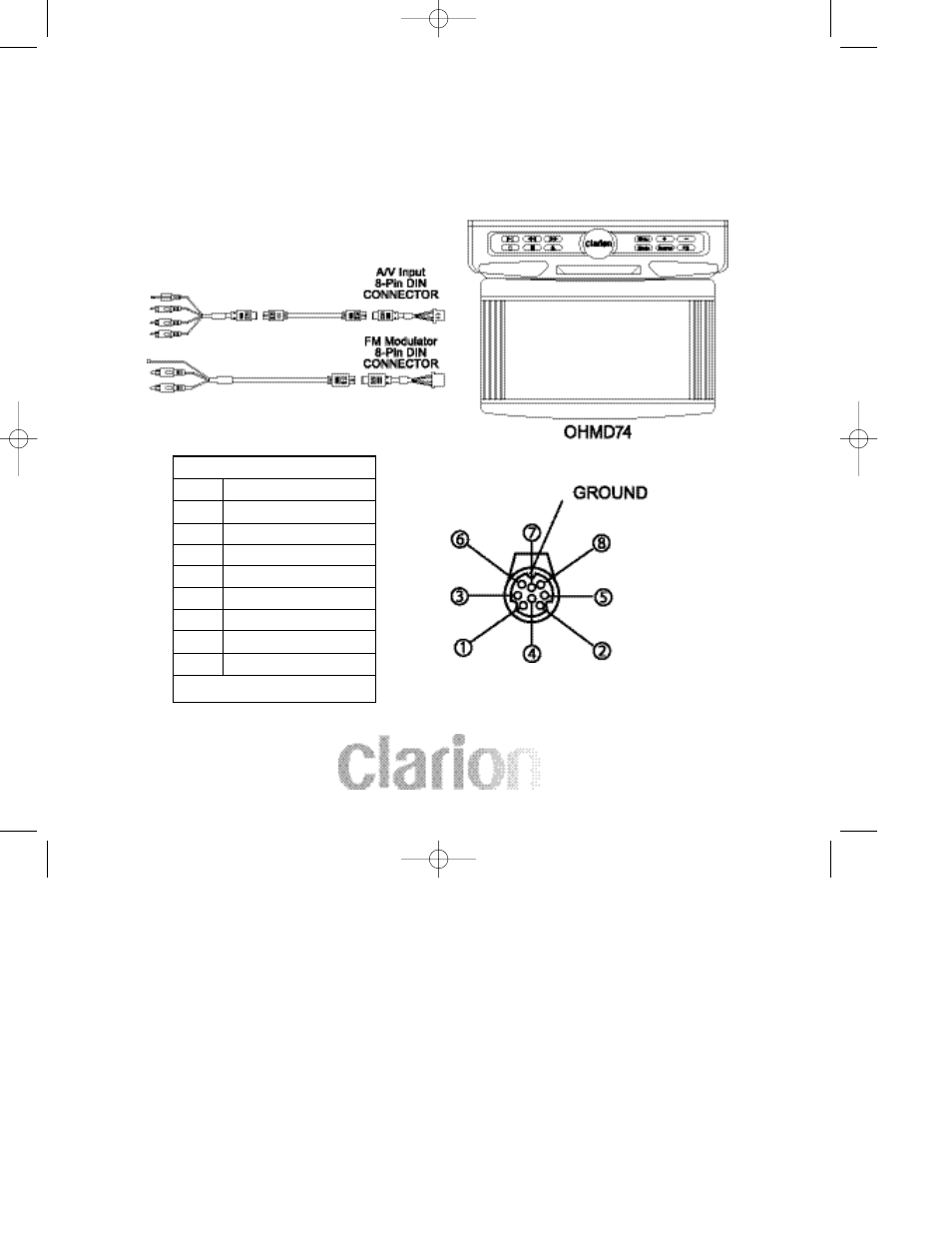

Connecting Diagram
If you are uncertain as to what the proper connections are.
Please contact a qualified Clarion technician for further installation assistance.
A/V Cable
A/V Input Connector
Pin Function
1 Audio Left Input
2 NC
3 Audio Right Input
4 NC
5 Video Input
6 NC
7 IR Output
8 NC
GND A/V GND Shielding
