12tg-p engine exploded view, 12tg-p engine parts list – O.S. Engines 12TG-PX User Manual
Page 22

42
C.M3x16
1
2
3
5
4
6
7
8
9
10
11
12
14
13
C.M2.6x7
MAX-

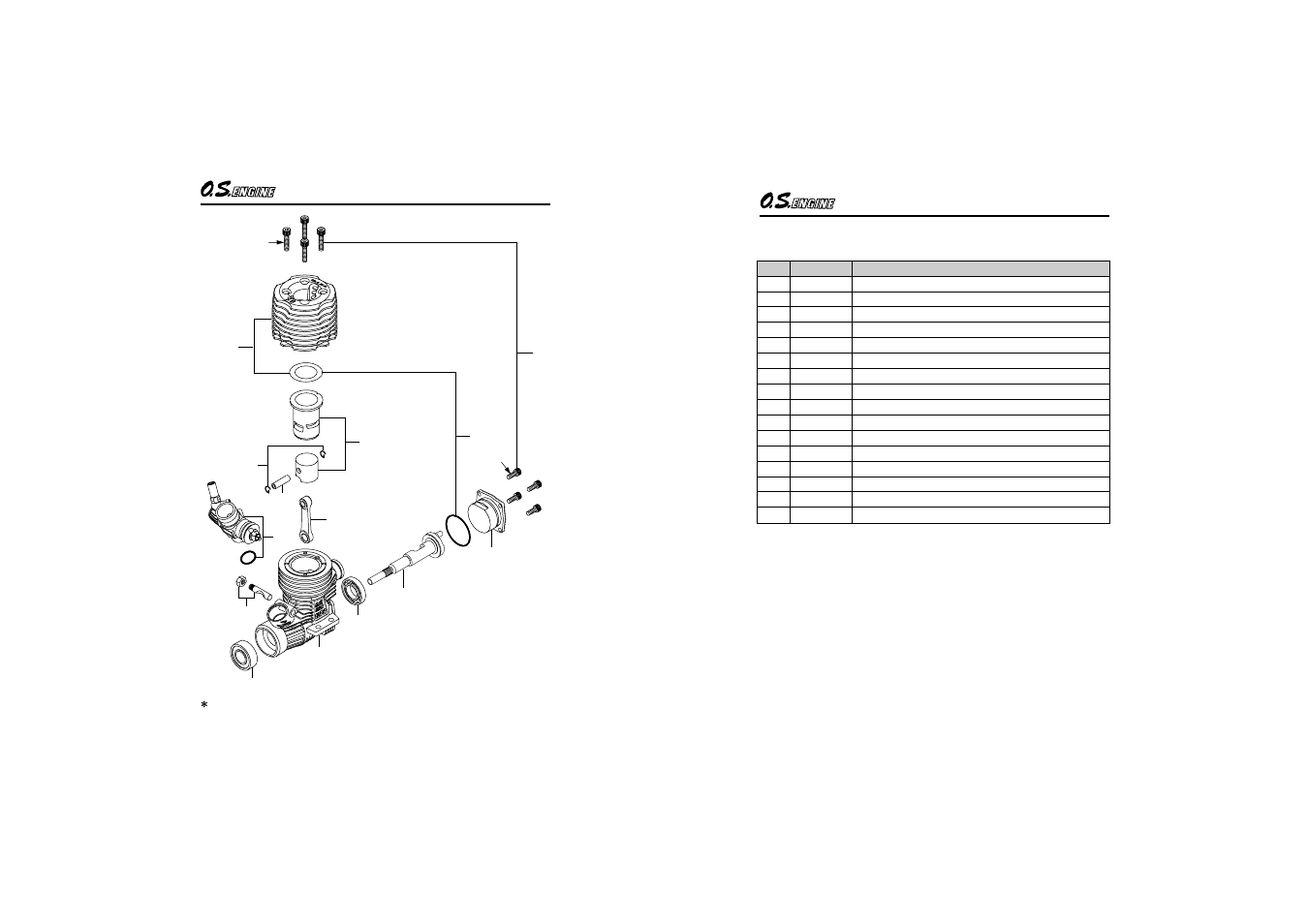

12TG-P ENGINE EXPLODED VIEW
Type of screw
C...Cap Screw M...Oval Fillister-Head Screw
F...Flat Head Screw N...Round Head Screw S...Set Screw
43
1
2
3
4
5
6
7
8
9
10
11
12
13
14
21414000
21413000
21536000
21817000
21415000
21418000
25381701
22631020
21411000
21931000
21412000
21411400
21417000
23763000
71608001
21427200
MAX-
12TG-P ENGINE PARTS LIST
The specifications are subject to alteration for improvement without notice.
Heatsink Head
Cylinder & Piston Assembly
Piston Pin
Piston Pin Retainer (2pcs.)
Connecting Rod
Carburetor Complete (Type 12D)
Carburetor Retainer Assembly
Crankshaft Ball Bearing (Front)
Crankcase
Crankshaft Ball Bearing (Rear)
Crankshaft
Gasket Set
Cover Plate
Screw Set
Glow Plug No.8
Exhaust Seal Ring
Description
Code No.
No.
