O.S. Engines 15LD-X - Manual (Page 26)

41
4-M3x0.5
5.5
23
18
15.7
15.7
46.6
22.3
M5x0.8
■ Displacement
■ Bore
■ Stroke
■ Practical R.P.M.
■ Power output
■ Weight

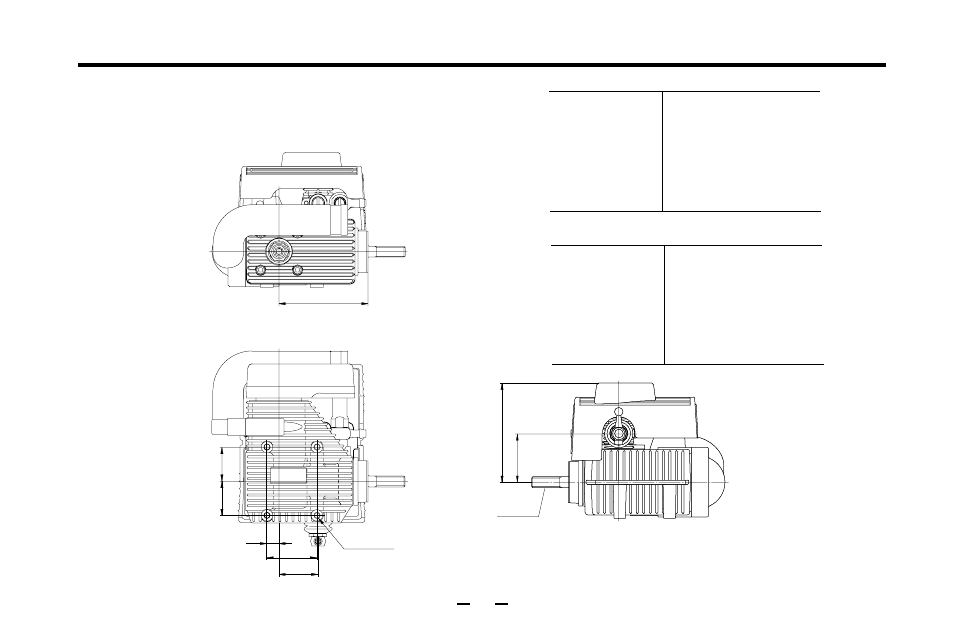

MAX-12LD SPECIFICATIONS 12/15LD THREE VIEW DRAWING
2.11 cc(0.129cu.in.)
14.0 mm(0.551in.)
13.7 mm(0.539in.)
3,000
~
30,000 r.p.m.
0.56 bhp / 29,000 r.p.m.
273g(9.64oz.)
Dimensions(mm)
■ Displacement
■ Bore
■ Stroke
■ Practical R.P.M.
■ Power output
■ Weight
MAX-15LD SPECIFICATIONS
2.49 cc(0.152cu.in.)
15.2 mm(0.598in.)
13.7 mm(0.539in.)
3,000
~
30,000 r.p.m.
0.68 bhp / 29,000 r.p.m.
273g(9.64oz.)
26
