CO-151-HW-UA-6B
In line with its policy to continually improve its products,
CRES COR reserves the right to change materials and
specifications without notice.
SHORT FORM SPECIFICATIONS
Cres Cor AquaTemp Roast-N-Hold Convection Oven Model
CO-151-HW-UA-6B. Removable power unit 20 ga. 304
stainless steel, recessed control panel. Cabinet 22 ga. 304
stainless steel. Stainless steel internal frame; coved corner
interior. 16 ga. stainless steel water reservoir, 4 gallon
capacity. Fiberglass insulation in sides 2”; back, door and
base 1-1/2”. 22 ga. 304 stainless steel door, ceramic
magnetic latch, heavy duty hinges. (6) sets universal angles
for multiple pan sizes and spacing. One piece base .125
aluminum. 5" swivel modulus casters, Delrin bearings. Load
capacity 250 lbs. each. 4950 Watts,
Volts, 60 Hz.,
____ Phase. 2 year parts warranty. Provide the following
accessories:
___ ___ ___ UL, CUL, UL
Sanitation listed.
CABINET:
• Body: 22 ga. 304 stainless steel.
• Reinforcement: Internal framework of 16 ga. stainless steel.
• Insulation: Fiberglass, thermal conductivity (K factor) is .23
• at 75˚F. 1-1/2" in back wall, door, base; 2" in side walls.
• Water pan: 4 Gallons; 16 ga. 304 stainless steel with 1850 Watt
• heater and with petcock drain; mounted to base.
• Drip trough: Formed 18 ga. stainless steel; mounted to lower
front of cabinet.
• Air tunnel: 20 ga. stainless steel, lift-out type, mounted
• on rear wall.
• Work top: 18 ga., 304 stainless steel.
BASE:
• One piece construction, .125 aluminum.
• Casters: 5" dia., swivel, modulus tires, 1-1/4 wide, load cap.
• 250 lbs. each, temp. range -45˚/+180˚F. Delrin bearings. Front
casters equipped with brakes.
DOOR:
• Field reversible.
• Formed 22 ga. 304 stainless steel.
• Latch: Chrome plated zinc with composite handle, ceramic
• magnetic type; mounted inboard.
• Hinges: Heavy duty chrome plated zinc, mounted inboard.
• Gasket: Perimeter type, silicone.
• Pan stop: Embossed.
PAN SLIDES:
• Stainless steel wire universal angles (.306 dia.) mounted on
• lift-out posts.
• 6 sets of angles adjustable on 1-1/2" centers.
• Grids (3): Nickel chrome plated steel, raised wire 17" x 25".
POWER REQUIREMENTS AVAILABLE:
• 4950 Watts, 208 Volts, 60 Hz., 1 phase, 24 Amps.,
• 30 Amp. service.
• 4950 Watts, 240 Volts, 60 Hz., 1 phase, 21 Amps.,
• 30 Amp. service.
• 4950 Watts, 208 Volts, 60 Hz., 3 phase, 15 Amps.,
• 20 Amp. service.
• 4950 Watts, 240 Volts, 60 Hz., 3 phase, 13 Amps.,
• 20 Amp. service.

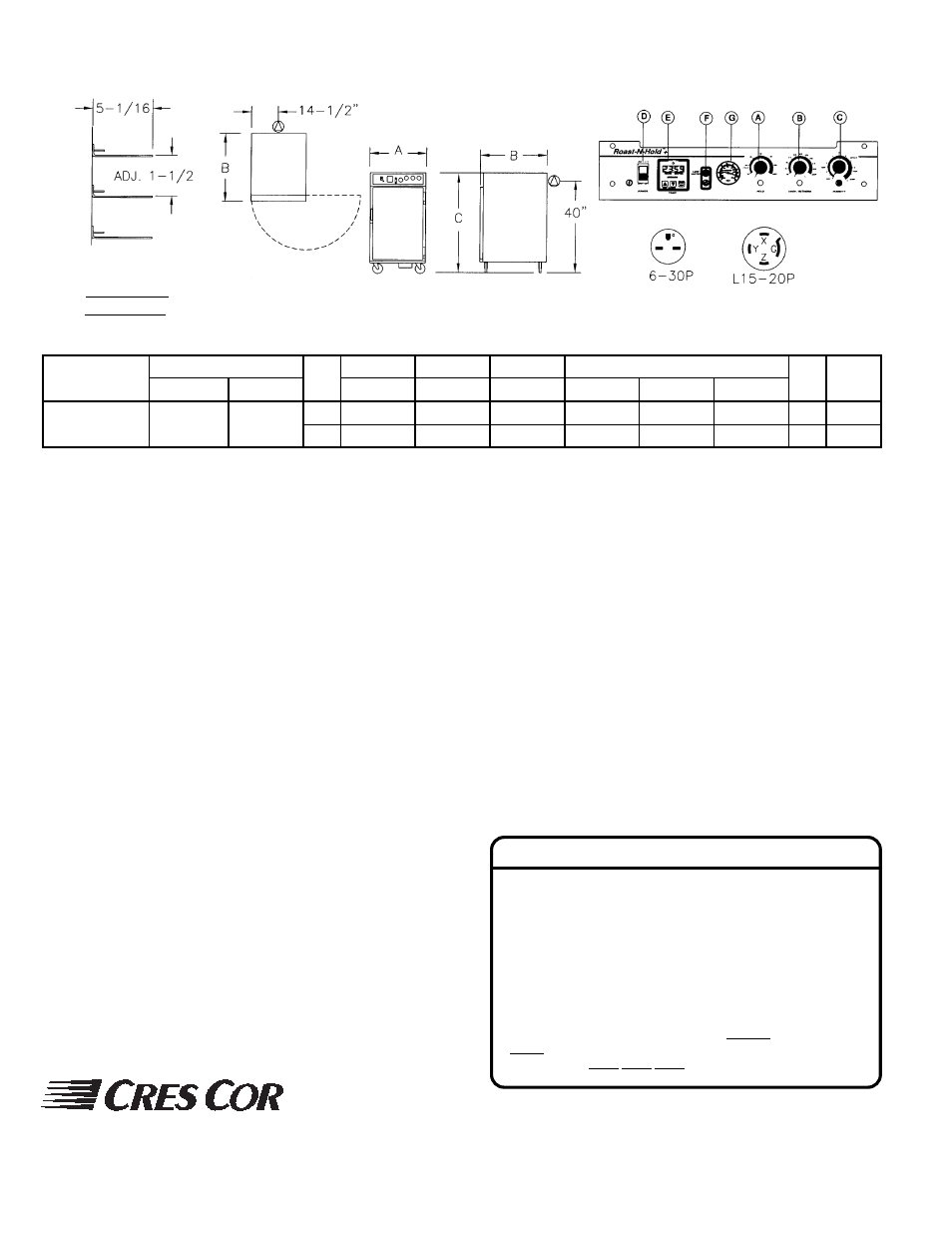

POWER UNIT COMPONENTS: (refer to above drawing)
• Body: Formed 304 stainless steel with black control panel, recessed
and tilted 7˚.
• Power cord: Permanent, 6 ft., 10/3 ga. with right angle plug.
• Air heaters (3): 2670 Watts each.
• Water heater: 1850 Watts.
• Blower motors (3).
• Vent fans (2).
• Fuses (2): 3 amp.
A) Thermostat (holding): Solid state, room ambient to 250˚F. (121˚C.).
B) Thermostat (cook/retherm): Solid state, room ambient to
350˚F. (176.5˚C.).
C) Thermostat (humidity): Solid state
D) Switch: Lighted ON-OFF rocker type.
E) Timer: 24 hr. digital countdown; infinite memory retention.
F) Pilot light for low water level.
G) Thermometer.
INSTALLATION REQUIREMENTS:
• Check local vent hood codes for mobile Roast-N-Hold ovens.
CRES COR PAN DIM “A” DIM “B” DIM “C” INSIDE DIMENSIONS WEIGHT
MODEL NO. CAP/ANGLES SIZE WIDTH DEPTH HEIGHT WIDTH DEPTH HEIGHT ACT.
6 SEE NOTE IN 28-3/4 37-3/4 43-3/4 21-1/4 26-1/2 28 LBS 321
CO-151-HW-UA-6B
SETS BELOW MM 740 960 1115 540 675 715 KG 146
NOTE: Refer to pan size chart at end of section.
ALL CONSTRUCTION IS RIVETED, WELDED AND FINISHED.
DETAIL OF
PAN SLIDE
