4
3.2 List of Parts
The following tables list the Case 44 series main lift kit (CS04) specific parts of the NORAC
UC5 system. This kit is to be used when installing the proportional main lift option with existing
Case installations that have a valve block that was purchased after December of 2010. These
valve blocks require a 4-bolt expansion block.
Item Part Number Name Quantity
C10 43230-04 CABLE UC5 VALVE 2PIN DT TO 2PIN DT 2
H01 44863-38 HOSE ASSEMBLY 122R2-06 156 IN L 6FORX 6FORX90 2
H10 44865-48 HYDRAULICS FITTING KIT - CS4 1
M01 UC5-CS04-4B-INST MANUAL INSTALLATION UC5 MAIN LIFT OPTION CASE IH (44 SERIES) 1
V01 44962D VALVE ASSEMBLY EXPANSION DPOC PROP DT 4 BOLT 1

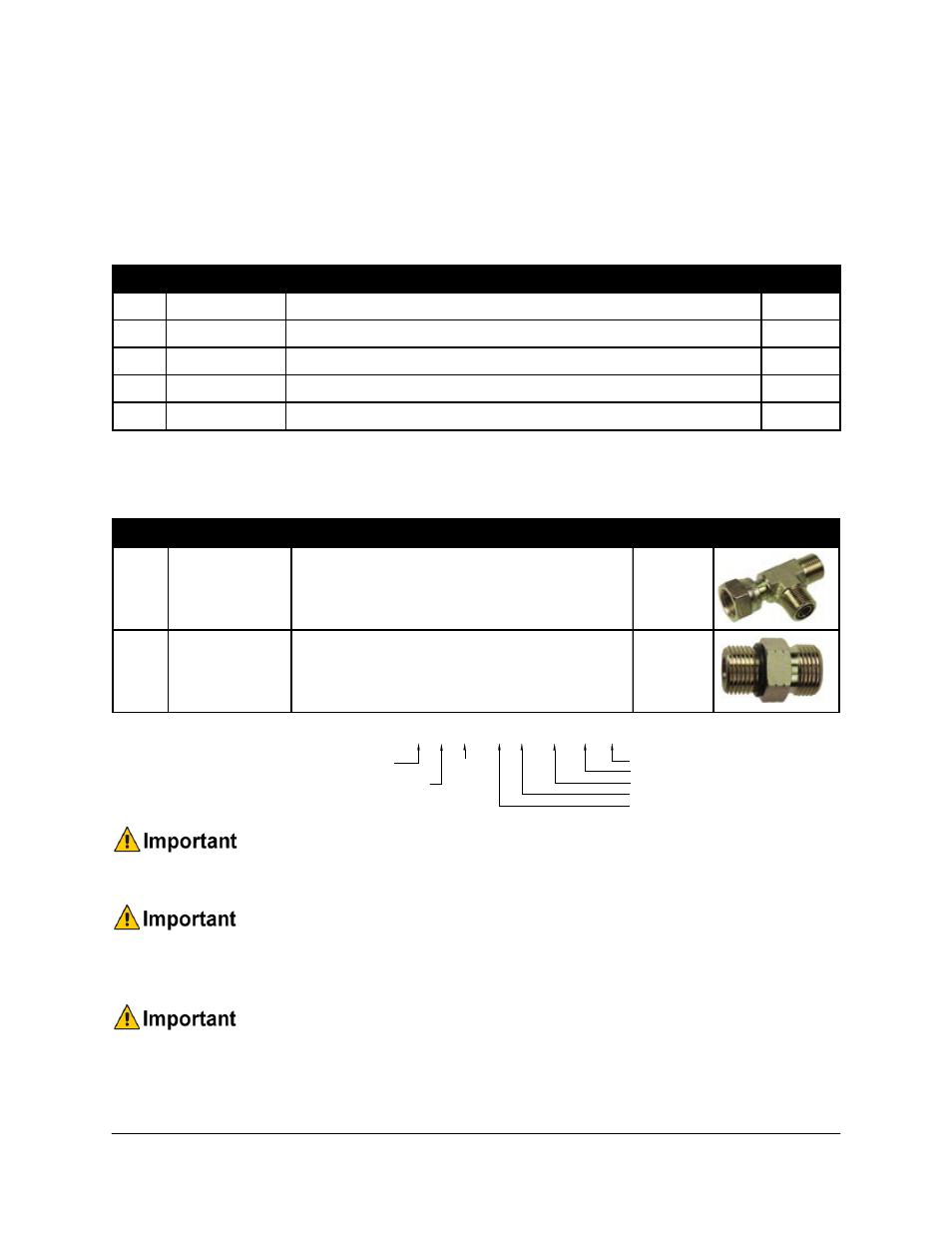

3.3 Hydraulic Fitting Kit Details (P/N: 44865-48)
Item Part Number Name Quantity Picture
F03 104586 TEE ADAPTER - 6FORXR 6MORT 2
F04 44917 MALE ADAPTER - 6MB-6MOR MACHINED ORB 2
6 M B - 6 M OR X 90
SIZE IN
1/16
TH'S
GENDER: MALE
OR FEMALE
90 ° ANGLE
SWIVEL
TYPE
GENDER
SIZE
TYPE:
B - ORB
J - JIC
OR - FLAT
FACE
P - PIPE
Fitting Name
Example:
Do not use high speed power tools/drills when installing hardware.
The use of dielectric grease is not recommended on any NORAC electrical
connections.
To ensure all stainless steel hardware does not gall or seize apply a light coating of
the supplied Permatex Anti-seize grease to all threaded parts upon installation.
Permatex Anti-seize lubricant is preferred, but other similar anti-seize products
may be used.
