Mytek Studio Clock 192CX – User Manual

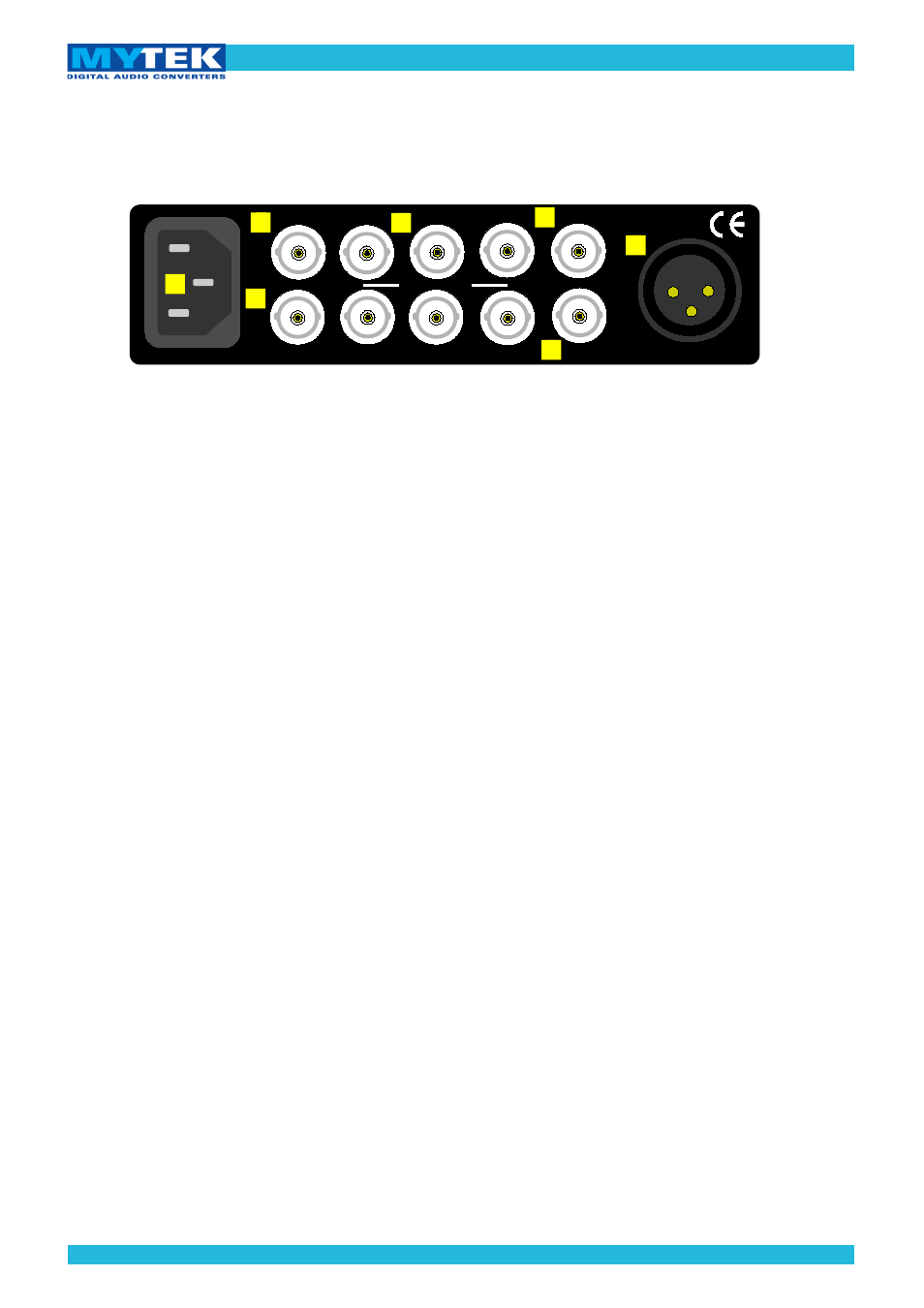

Back Panel
A – IEC Power socket
B – Wordclock Input
C – Superclock Output
D – FS Wordclock Outputs
E – FS/2 Wordclock Output
F – FS/2/4 Wordclock Output
G – AES/EBU XLR Clock Output
Functions
FS – This cycles the sampling frequency between 44.1, 48, 88.2,
96, 176.4, and 192 kHz.
SOURCE – This selects whether the Internal Oscillator or the
External Wordclock In is the clock source.
FS= – This multiplies the incoming wordclock by x1, x2, or x4.
WCK IN – This is for connecting an external clock source.
FS WCK OUT – This outputs wordclock at the selected
sampling frequency.
SUPERCK OUT – This is always outputting Superclock.
FS/FS:2 OUT – This clock output divides the selected
sampling frequency by 2.
FS/FS:2/FS:4 OUT – This clock output divides the selected
sampling frequency by 2 and 4.
www.mytekdigital.com Page: 6/9
