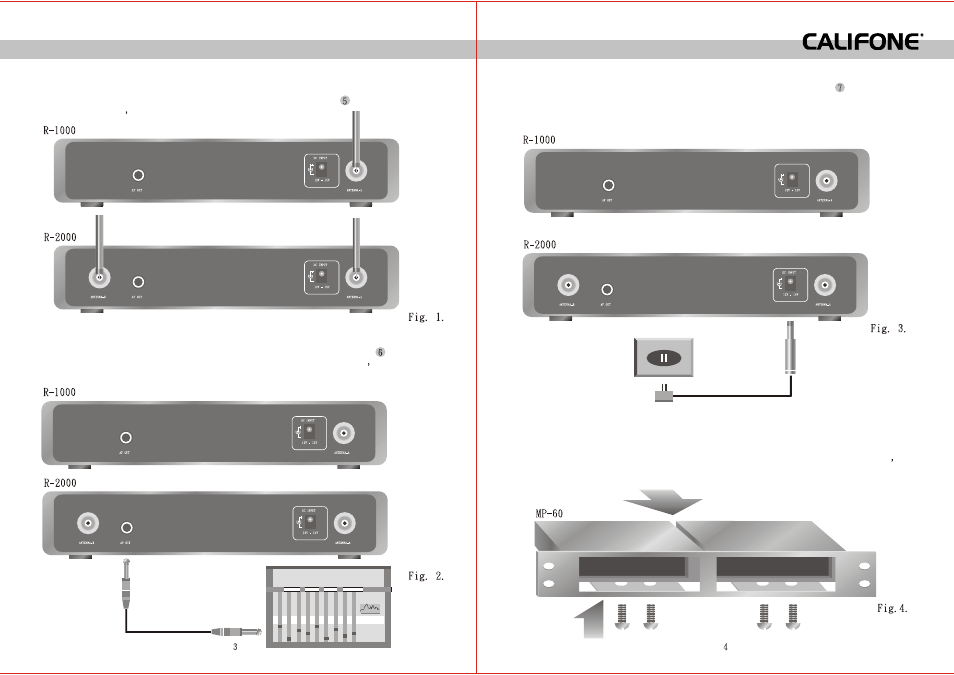

USED AS A STAND ALONE SYSTEM
INSTALLATION OF THE RECEIVER
1.Connect the AF output of the receiver from unbalanced output jack to input
jack of the mixer by an output cable attached with "PHONE" plug
as shown in
Fig. 2.
1.Install an antenna perpendicularly to the antenna input jack at the rear panel
of the receiver
as shown in Fig. 1.
CONNECT
1.Mount the two connected R-1000 or R-2000 into an optional MP-60 panel as
shown in Fig. 4.
2.Connect a power adapter to the DC power supply input socket then plug the
adapter to an appropriate AC outlet with caution to the correct voltage under both
AC outlet and adapter marked. as shown in Fig. 3.
USED AS A PACK MOUNT SYSTEM
