Mutable Instruments Frames User Manual
Frames, Keyframer / mixer front panel, Inspiration

Frames
Keyframer / mixer

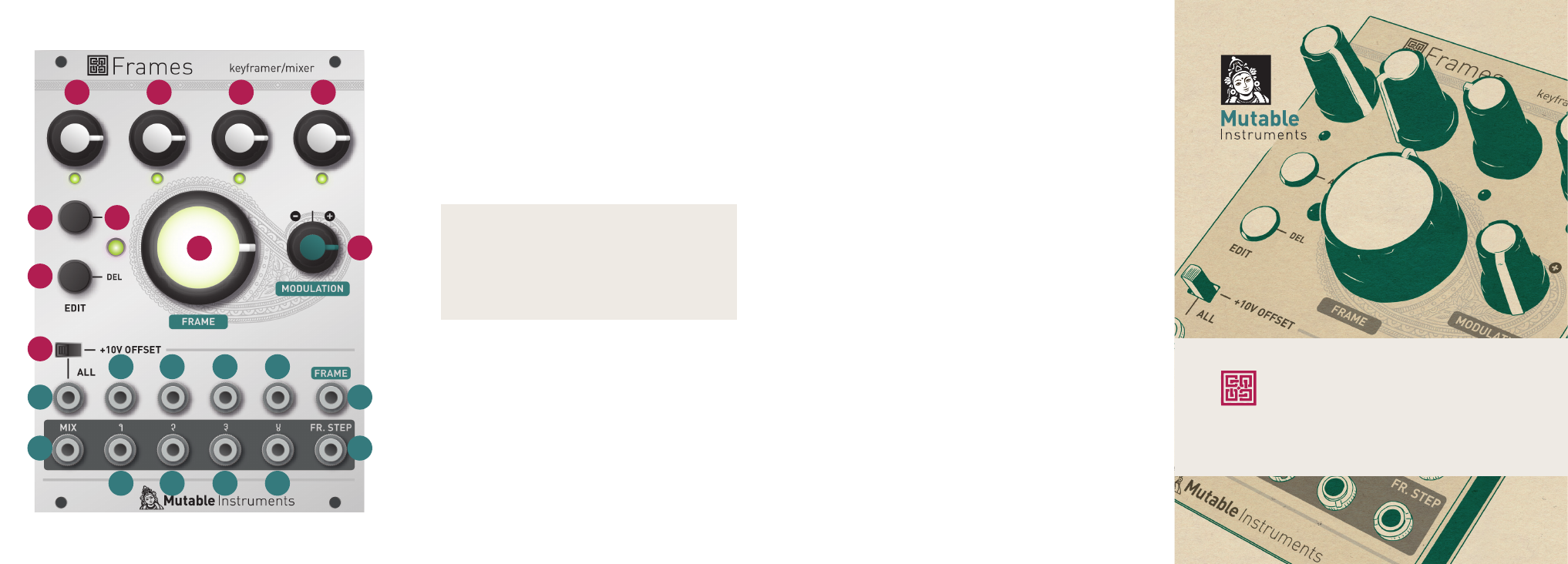

Front panel
A. B. C. D.
Channel gains. These knobs have an effect
only when the keyframe indicator
(G)
is lit, that is to
say when a keyframe has been recorded at the position
pointed by the FRAME knob.
E.
Creates a keyframe at the position pointed by the
FRAME knob. The timeline can contain up to 64 key-
frames.
F.
Deletes the keyframe at the position pointed by the
FRAME knob.
G.
Keyframe indicator - lit when there is a keyframe at
the position pointed by the FRAME knob. The keyframe
can be edited by the knobs A, B, C, D; or deleted with
(F)
.
H.
Frame knob - scrolls through the animation.
I.
Animation attenuverter. Attenuates and inverts the
polarity of the signal received on the FRAME CV input.
J.
+10V offset. When enabled, a +10V constant CV is sent
to the ALL input - unless a patch cable is inserted there.
A
B
C
D
E
F
G
I
J
H
1.
Common input. The signal patched here is sent to all
unconnected input channels.
2. 3. 4. 5.
Channel 1, 2, 3, 4 inputs.
6.
Animation input. This CV modulates the position of
the FRAME knob.
7.
Mix output - sum of channel outputs 8, 9, 10, 11.
8. 9. 10. 11.
Channel 1, 2, 3, 4 outputs. When a patch
cable is connected there, the channel is removed from
the global mix.
12.
Frame step output. Sends a 1ms trigger pulse every
time a new keyframe is reached.
Inspiration
•
Patch four outputs from a complex VCO to the four
inputs, and animate the mix.
•
Send basic gate patterns to each input, and use the
gains to create CV melodies. Morph between them.
•
Dispatch the same sound source to 4 different filters,
wavefolders, FX processors, speakers...
•
Patch a simple ADSR envelope to the FRAME input.
Get 4 synchronized multi-stage envelopes!
•
Mix and match attenuation/gain channels and CV
generation channels. For example, use 2 channels for
mixing VCOs, and 2 channels as CV sources to alter
their timbre.
1
2
3
4
5
8
9
10
11
7
6
12
Tip: hold ADD
(E)
for five seconds to save the
current configuration of the module. It will be
restored the next time the module is powered on.
Tip: hold DEL
(F)
for five seconds to erase all
keyframes and get back to a blank state.
