CAUTION

To avoid damage to the grease

gun and pump, the loader fi tting MUST be
compatible with the coupler and rated for at
least 10,000 psi (690 bar).

WARNING

To reduce the risk of injury,

use only low pressure loader fi ttings.

Excessive pressure can be caused by high
pressure loader fi ttings.

Pump Loading

Remove the battery pack.

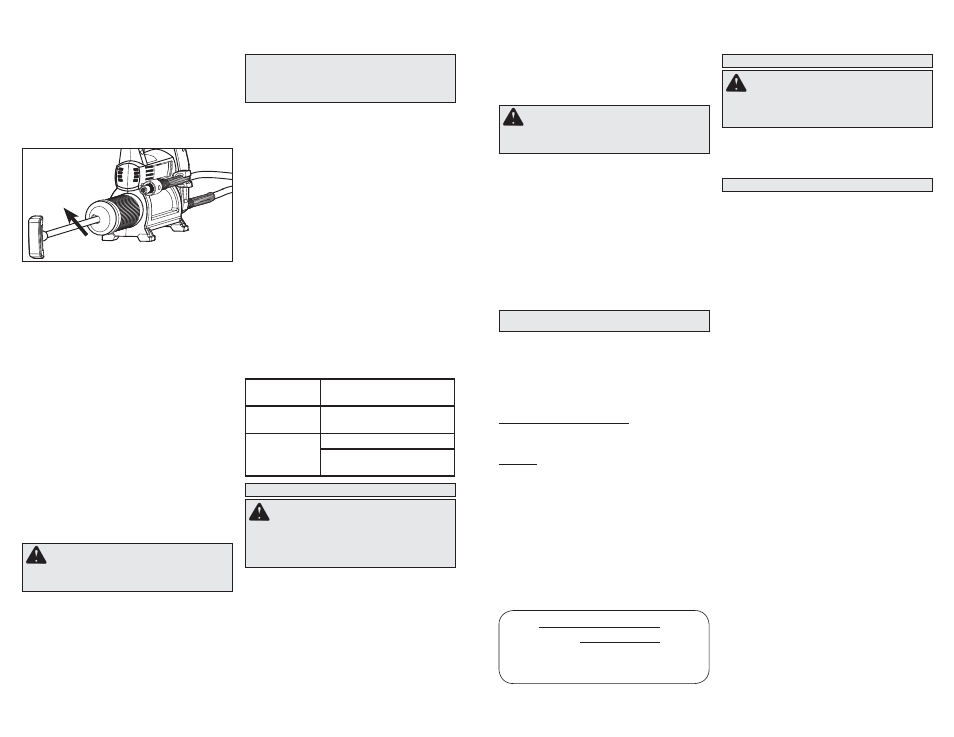

Pull back the rod and turn the rod handle to lock

into the plunger. Release the rod/plunger. Do
NOT push the rod into the retaining slot.
Insert the loader fitting into the grease gun

loader coupler.

Operate the loader pump until the rod has been

pushed out of the cylinder approximately 8".
Rotate the rod handle to release the plunger.

Press the rod completely into the cylinder.
Prime the grease gun according to "Priming the

Grease Gun"

Priming the Grease Gun

Insert battery pack.

Hold the hose assembly by the spring strain relief

and point away from your body.
Pull the trigger for 3 seconds, release, and repeat

until grease begins to fl ow from the fi tting.
If after several attempts grease does not appear,

manually prime the grease gun
a. Pull back the rod and turn the rod handle to

lock into the plunger.

b. Press in the bleed valve while manually press-

ing in the rod.

c. Once grease begins to fl ow from the fi tting,

rotate the rod handle to release the plunger.
Press the rod completely into the cylinder.

NOTE: This tool has been tested to factory stan-
dards, which results in a small amount of grease be-
ing left in the pump body, hose and coupler assembly.
It is recommended that you purge this tool with the
brand of grease you will be using before actual use.

Troubleshooting

Unable to pull
back rod

Press the bleeder to release
pressure

Unable to push
rod forward

Rotate rod 90° to disengage it
from plunger

No grease when
trigger is pulled

Cylinder is empty, add grease

Air pockets in the cylinder, prime
the grease gun

Installing a Fitting/Coupler
Screw the appropriate coupler to the end of the
hose assembly. Use only accessories rated for at
least 10,000 psi (690 bar).

Grease Cartridge Loading

Remove the battery pack.

Pull back the rod, and push it sideways into the

retaining slot. Ensure the rod is securely seated
in the slot or it may spring back.

Unscrew and remove the cylinder.

Remove the cap from the cartridge.

Insert the cartridge, open end first, into the

cylinder.
Remove the seal from the cartridge.

Screw the cylinder into the grease gun.

Release the rod from the retaining slot and press

it completely into the cylinder.
Prime the grease gun according to "Priming the

Grease Gun"

Bulk Grease Loading
Bulk grease can be loaded 2 ways, using the cyl-
inder for suction loading, or using a pump to load
grease through a coupler.
Suction Loading

Remove the battery pack.

Unscrew and remove the cylinder.

Insert the open end of the cylinder below the

surface of the bulk grease.
Pull back the rod, and push it sideways into the

retaining slot.
Remove the cylinder from the bulk grease.

Wipe excess grease from the outside of the

cylinder and screw it into the grease gun.
Release the rod from the retaining slot and press

it completely into the cylinder.
Prime the grease gun according to "Priming the

Grease Gun"

ACCESSORIES

For a complete listing of accessories refer to your
MILWAUKEE Electric Tool catalog or go online
to www.milwaukeetool.com. To obtain a catalog,
contact your local distributor or service center.

WARNING

Always remove battery

pack before changing or removing ac-

cessories. Only use accessories specifi cally
recommended for this tool. Others may be
hazardous.

Maintaining Tool
Keep your tool, battery pack and charger in good re-
pair by adopting a regular maintenance program.
After six months to one year, depending on use,
return the tool, battery pack and charger to a
MILWAUKEE service facility for:
• Lubrication
• Mechanical inspection and cleaning (gears,

spindles, bearings, housing, etc.)

• Electrical inspection (battery pack, charger, motor)
• Testing to assure proper mechanical and

electrical operation

MAINTENANCE

Cleaning
Clean dust and debris from charger and tool vents.
Keep tool handles clean, dry and free of oil or
grease. Use only mild soap and a damp cloth to
clean the tool, battery pack and charger since certain
cleaning agents and solvents are harmful to plastics
and other insulated parts. Some of these include
gasoline, turpentine, lacquer thinner, paint thinner,
chlorinated cleaning solvents, ammonia and house-
hold detergents containing ammonia. Never use
fl ammable or combustible solvents around tools.

Repairs
For repairs, return the tool, battery pack and char-
ger to the nearest service center.

WARNING

To reduce the risk of per-

sonal injury and damage, never immerse

your tool, battery pack or charger in liquid or
allow a liquid to fl ow inside them.

WARNING

To reduce the risk of injury,

always unplug the charger and remove

the battery pack from the charger or tool before
performing any maintenance. Never disassem-
ble the tool, battery pack or charger. Contact
a MILWAUKEE service facility for ALL repairs.
