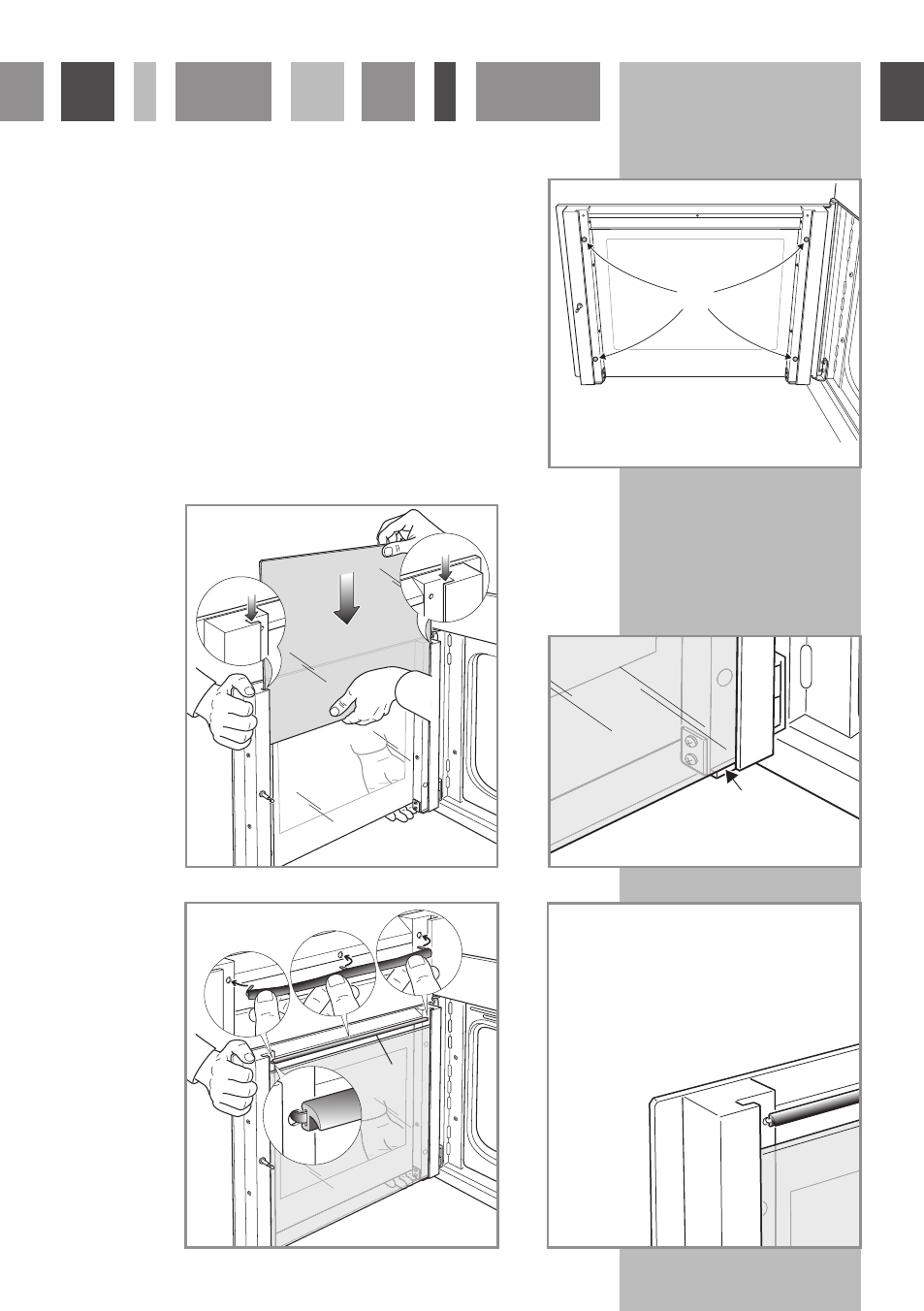

Replacing the inner pane of glass
To replace the inner pane of the door operate as follows:
– Check that the four rubber pads are in place (D in Fig. 18).
– Whilst one person holds the door still, a second person should
insert the inner pane in the left E and right F side guides (fig. 19)
and gently let it slide up to the retainers H (fig. 20).
Forcible replacement of the door glass may lead to damage of
the door hinges.
– Reassemble the seal G in the correct way (fig. 21) by hooking
the no. 3 fixing hooks in the proper holes.
H
Fig. 19
Fig. 20
H
G
It is normal the opened gap between
the top edge of the inner glass and the
sealed gasket. This allows the cooling air
circulation.
The oven door has a sealed gasket in the
top part.
D
Fig. 18
D
Fig. 21 Fig. 22
