Motherboard Manual

18

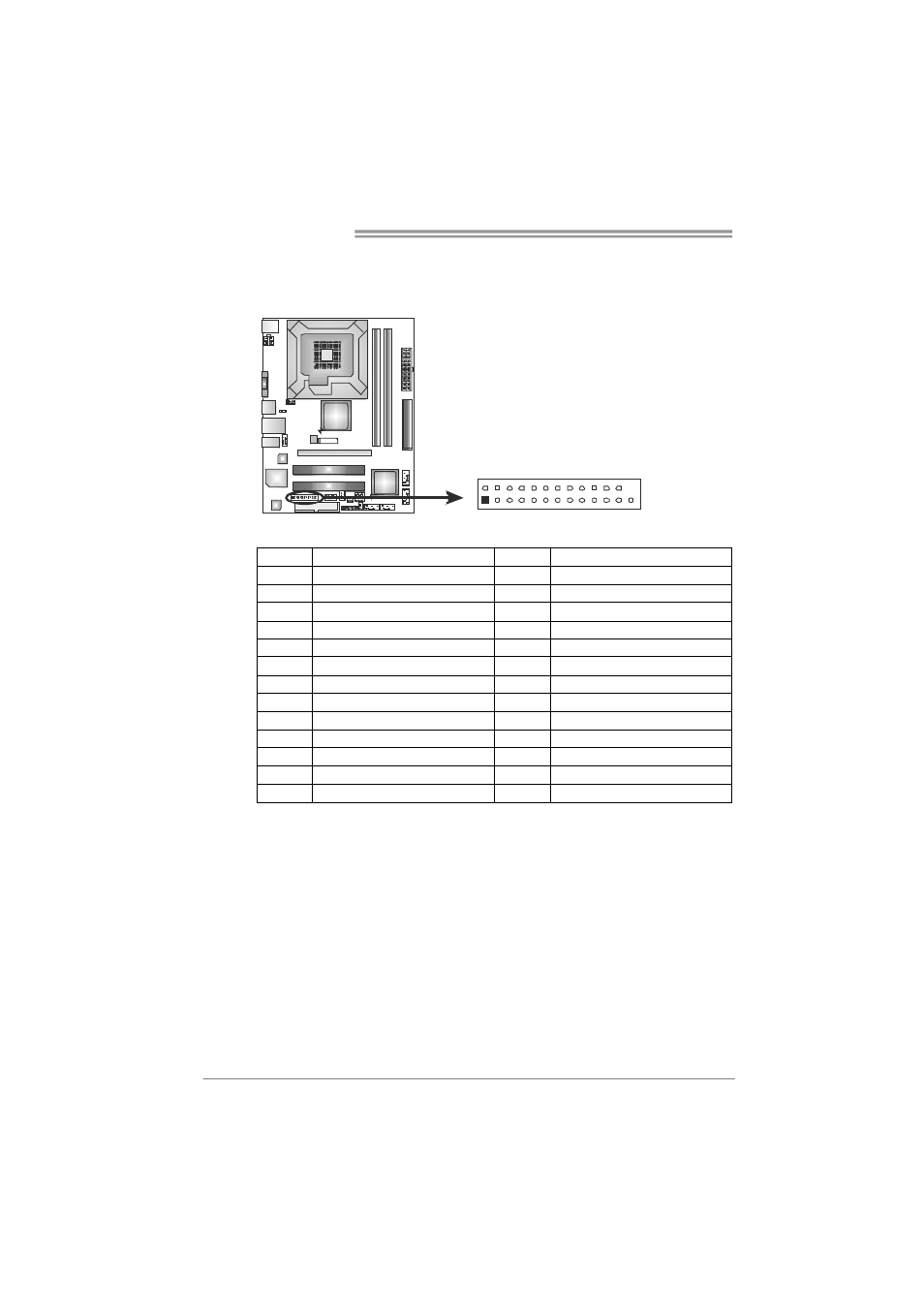

J_PRINT1: Printer Port Connector

This header allows you to connector printer on the PC.

1

2

25

26

Pin Assignment Pin Assignment

1 -Strobe

14 Ground

2 -ALF

15 Data

6

3 Data

0

16 Ground

4 -Error

17 Data

7

5 Data

1

18 Ground

6 -Init

19 -ACK

7 Data

2

20 Ground

8 -Scltin

21 Busy

9 Data

3

22 Ground

10 Ground

23 PE

11 Data

4

24 Ground

12 Ground

25 SCLT

13 Data

5

26 Key
