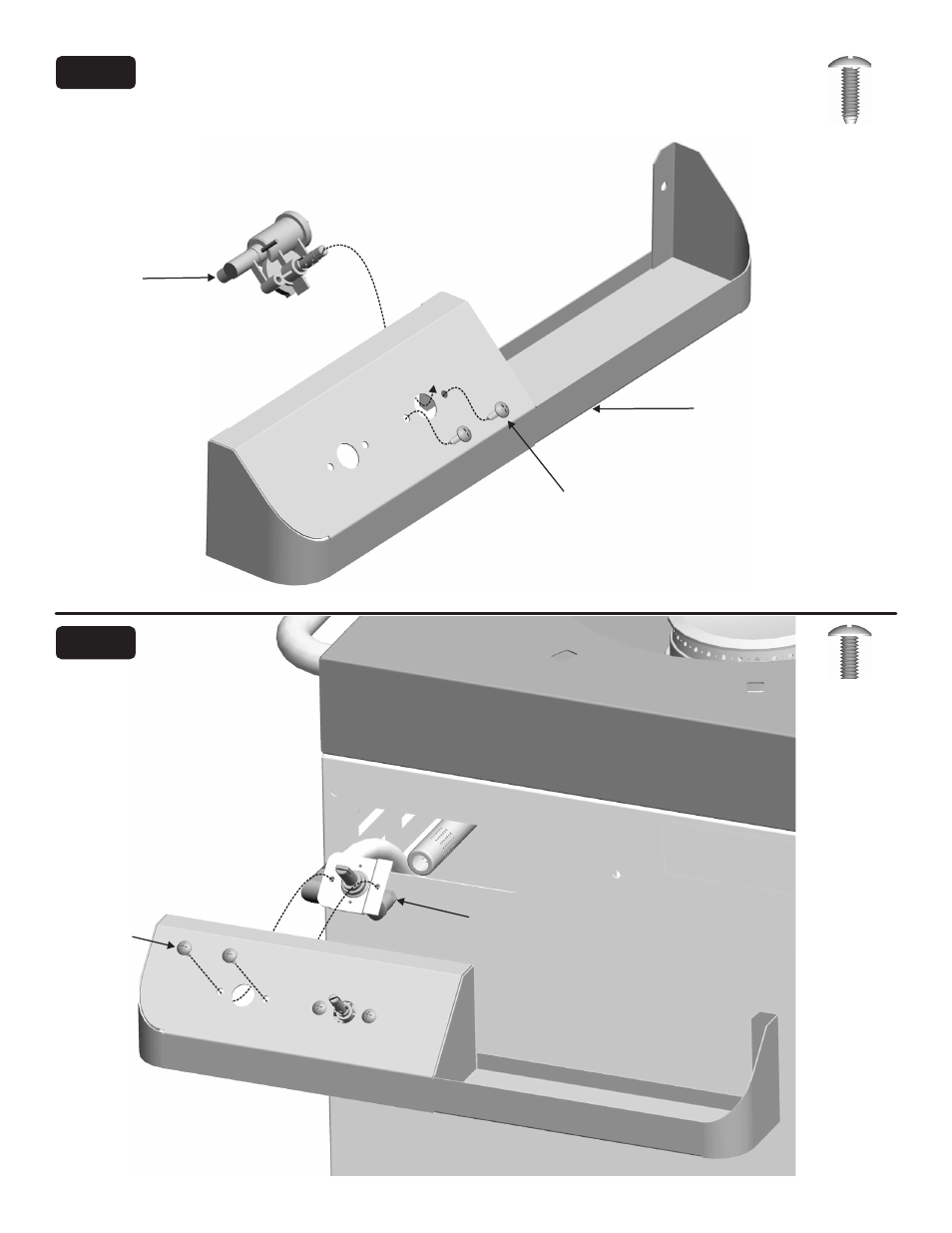

Step 3
Position rotary ignitor as shown below. Attach ignitor behind
control panel using two
. #8x1/2” self-tap screws
#8x1/2”
Self-Tap Screw
Qty: 2
Rotary ignitor
55700666
#8x1/2” Self-Tap Screw
Control panel
55700671
Step 4
Insert valve/hose through front
opening and attach to control
panel using two
Screws may already be
installed in valve and must be
removed to attach valve to
control panel.
#8-32x3/8”
machine screws.
NOTE:
#8-32x3/8”
Machine Screw
Qty: 2
#8-32x3/8”
Machine Screw
Hose/Valve/Regulator assembly
55700665
14
