MTP 340 CM / CMs
Tech data
· Acoustical operating principle:
· Directional pattern:
· Frequency range:
· Sensitivity:
· Equivalent noise level:
· Maximum SPL:
· Rated impedance:
· Rated load impedance:
· Supply voltage:
· Current consumption:
· Connector:
· Dimensions:
· Net weight:
pressure gradient
transducer, permanently
polarized
cardioid
90 ... 20.000 Hz
3,1 mV / Pa (-50 dBV)
25 dB-A (IEC 61672-1)
141 dB, 1 % THD
150 dB, 3 % THD
< 200 ohms
> 1.000 ohms
48 V +/- 4 V (IEC 61938)
5,3 mA (IEC 61938)
gold plated 3-pin XLR
49 dia. x 175 mm
1,9 dia. x 6,9 inch
330 g
11,6 oz.

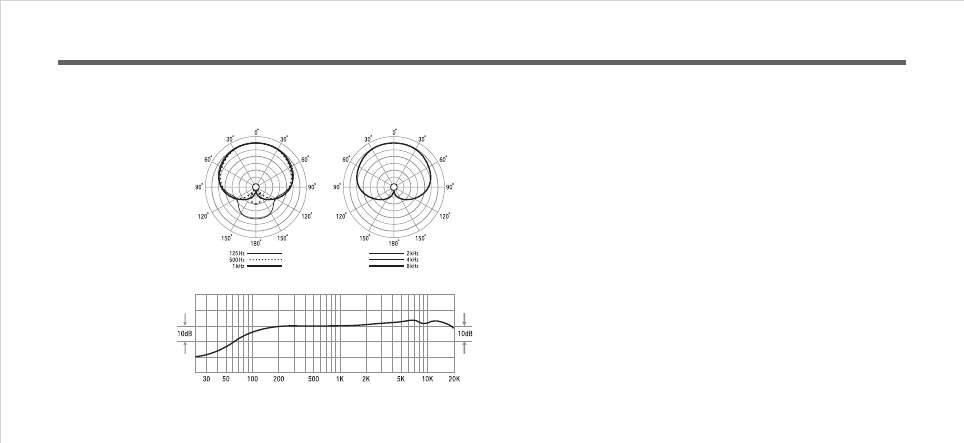

Tech data Tech graph
dB ref 1V Pa . /
5 dB unit /
07
