Troubleshooting & Wiring Diagrams for DC Boat Lift Systems
Connecting
Mounting
1.
Connect controller to battery
2.
Connect controller to solar panel
NOTE:
Order of connection is not important. System will automatically correct itself.
Expose Solar Panel to Light & Dark to confirm system is working correctly. Check that the
Solar Panel Indicator LED Turns on and is Blue or Green in color.
PRE-CHECK #1:
Connect Regulator to Solar panel to confirm Charging Status LED Turns
On (Battery is NOT yet connected)
PRE-CHECK #1:
Connect Regulator to Battery to confirm Battery Status LED Turns On.
(Solar Panel NOT Connected) – If Battery LED does not turn on after connecting to a
battery the Fuse Is Blown or the Battery is completely Dead: Replace Fuse or Replace
Battery, or check Battery Connection
1.
Use necessary hardware to mount controller
2.
Controller should be mounted near battery or inside battery box.
Lake Lite Inc.
105 W Simon St
Laotto, IN 46763
Phone: 260-918-2758
Fax: 260-918-3540
E-mail [email protected]
www.lakelite.com

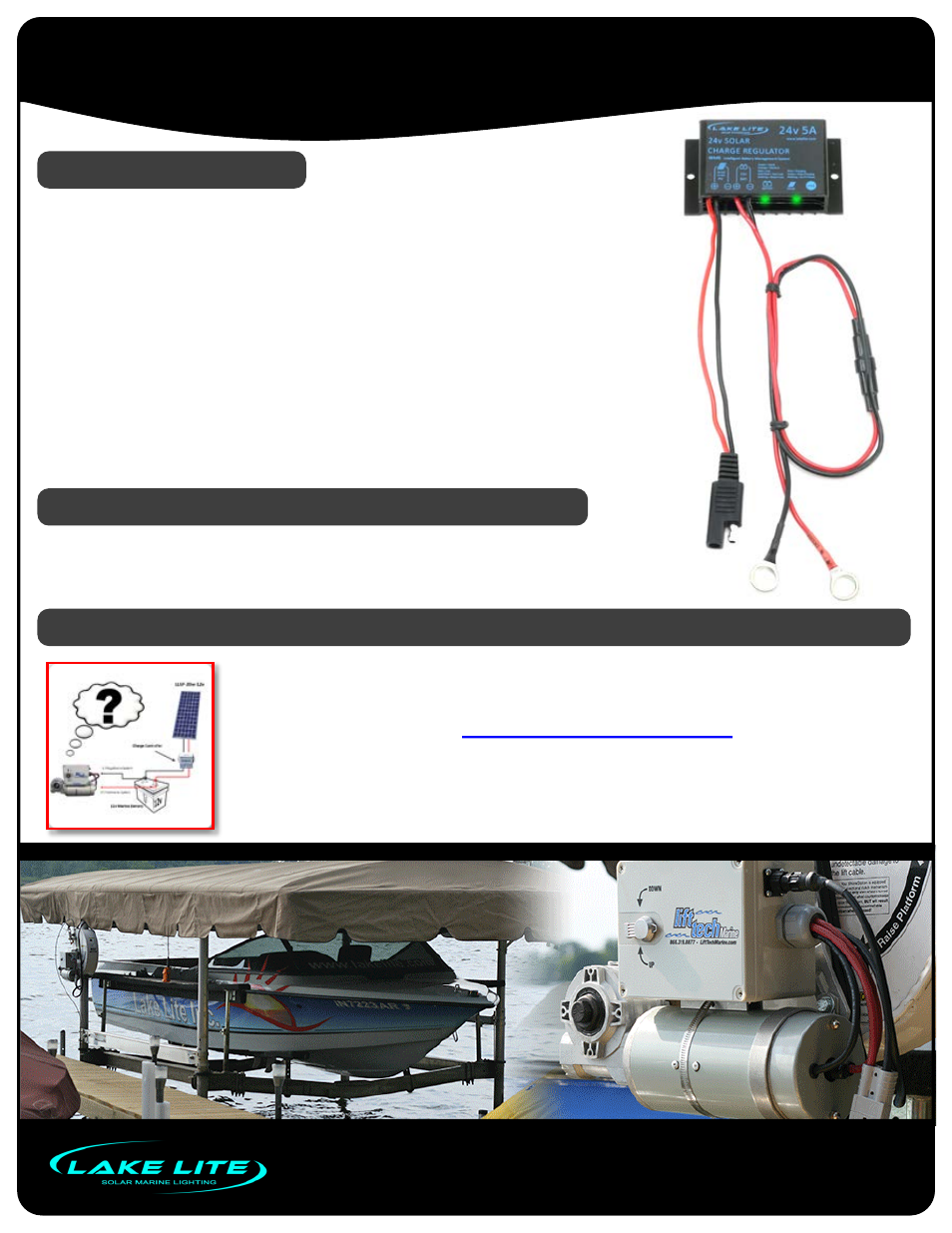

Solar Charge Regulator
MODELS: LL-REG-24v-5A-PB
Please visit
for
information, instructions, and videos!
