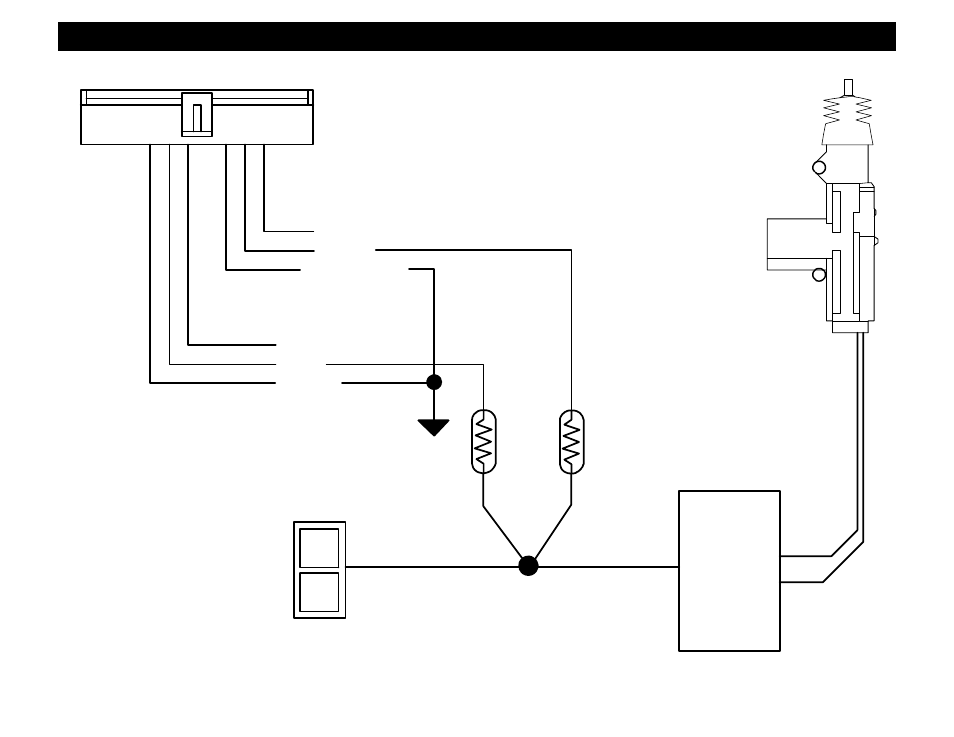

1-WIRE RESISTOR DOOR LOCKS

¼

Watt

Resistor

White/Black (N.C.)
Green

Violet/Black

(N.C.)

Brown

Blue
Violet

Lock Outputs

Unlock Outputs

Ground

L

U

Factory
Door
Lock
Module
