Fireplace Dimensions - Rear Vent

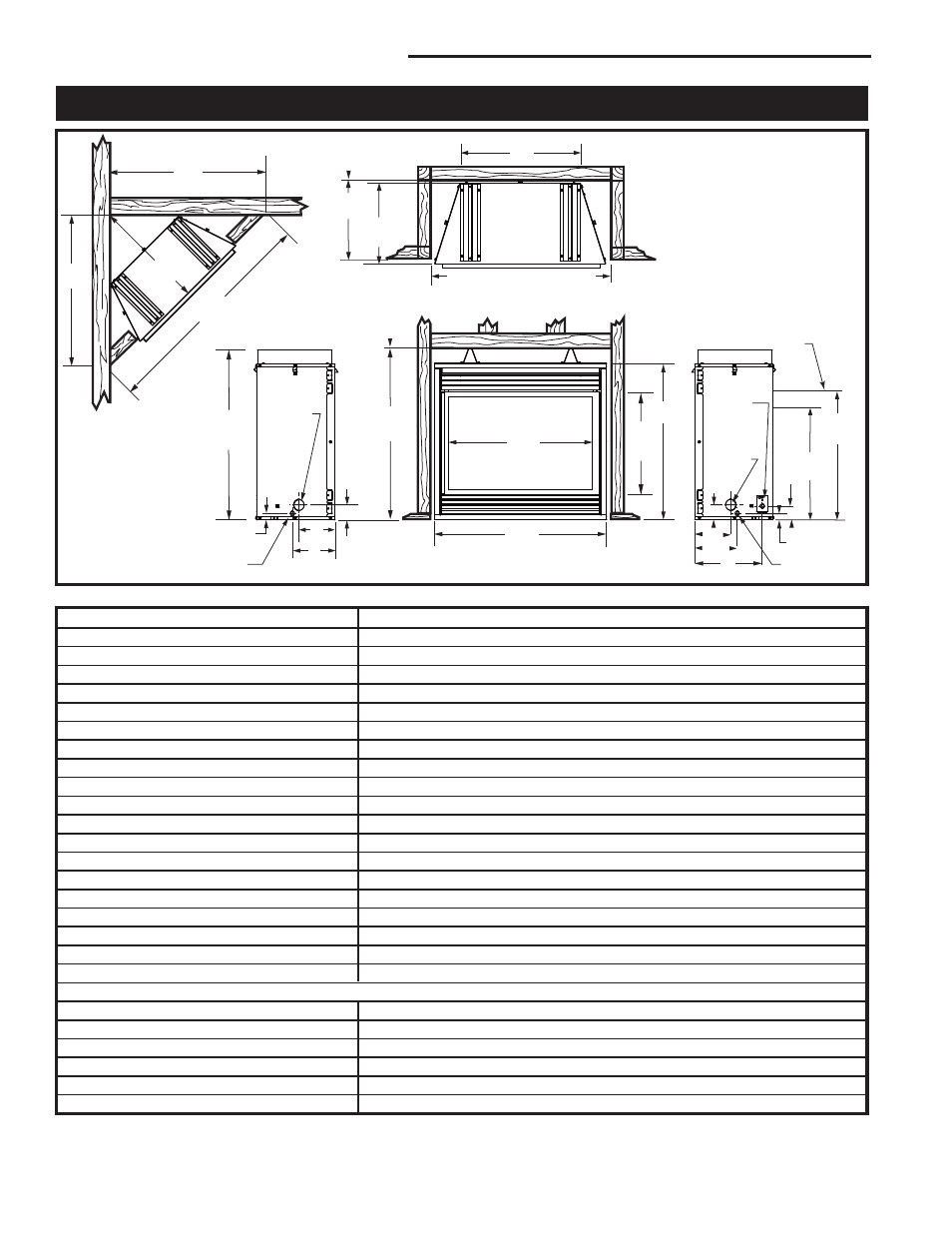

Fig. 2 Fireplace specifications and framing dimensions.
Ref. 36CDVR
A 35¹⁄₄” (895 mm)
B 35¹⁄₈” (892 mm)
C 32¹⁄₈” (816 mm)
D 33” (838 mm)
E 21¹⁄₈” (537 mm)
F 16⁵⁄₈” (422 mm)
G 25” (635 mm)
H 18¹⁄₂” (470 mm)
I 22” (559 mm)
J 3¹⁄₄” (83 mm)
K 2⁷⁄₈” (73 mm)
L 1³⁄₈” (35 mm)
M 14” (356 mm)
N 8¹⁄₂” (216 mm)
O 7³⁄₈” (187 mm)
P 1³⁄₈” (35 mm)
Q 3¹⁄₄” (83 mm)
R 7³⁄₈” (187 mm)
S 8¹⁄₂” (216 mm)
Framing Dimensions
T* 68¹⁄₄“ (1734 mm)
U* 48¹⁄₄“ (1226 mm)
V* 34¹⁄₈” (867 mm)
W 17¹⁄₈” (435 mm)
X 36¹⁄₄” (921 mm)
Y 35³⁄₈” (899 mm)
* Must be adhered to!
*
*
*
*
