INSTALLATION
One of the following power sources can be used:
• Batteries (4 "D" size)
• DC Power
For Use with Batteries:
1. Move the Rod Antenna.
2. Lift the Battery Cover Latch up to open the Battery Compartment.
3. Open the Battery Compartment Door and insert 4 "D" size batteries into the
Battery Compartment as diagramed inside the Battery Compartment.
4. Close the Battery Compartment Door and push down on the Battery Cover
Latch to completely close the Battery Compartment.
For Use with DC Adapter:
1. Unscrew the Input Compartment, as diagramed on the Input Compartment
cover.
2. Insert the DC Adapter into the External DC Power Input Jack.
4
9

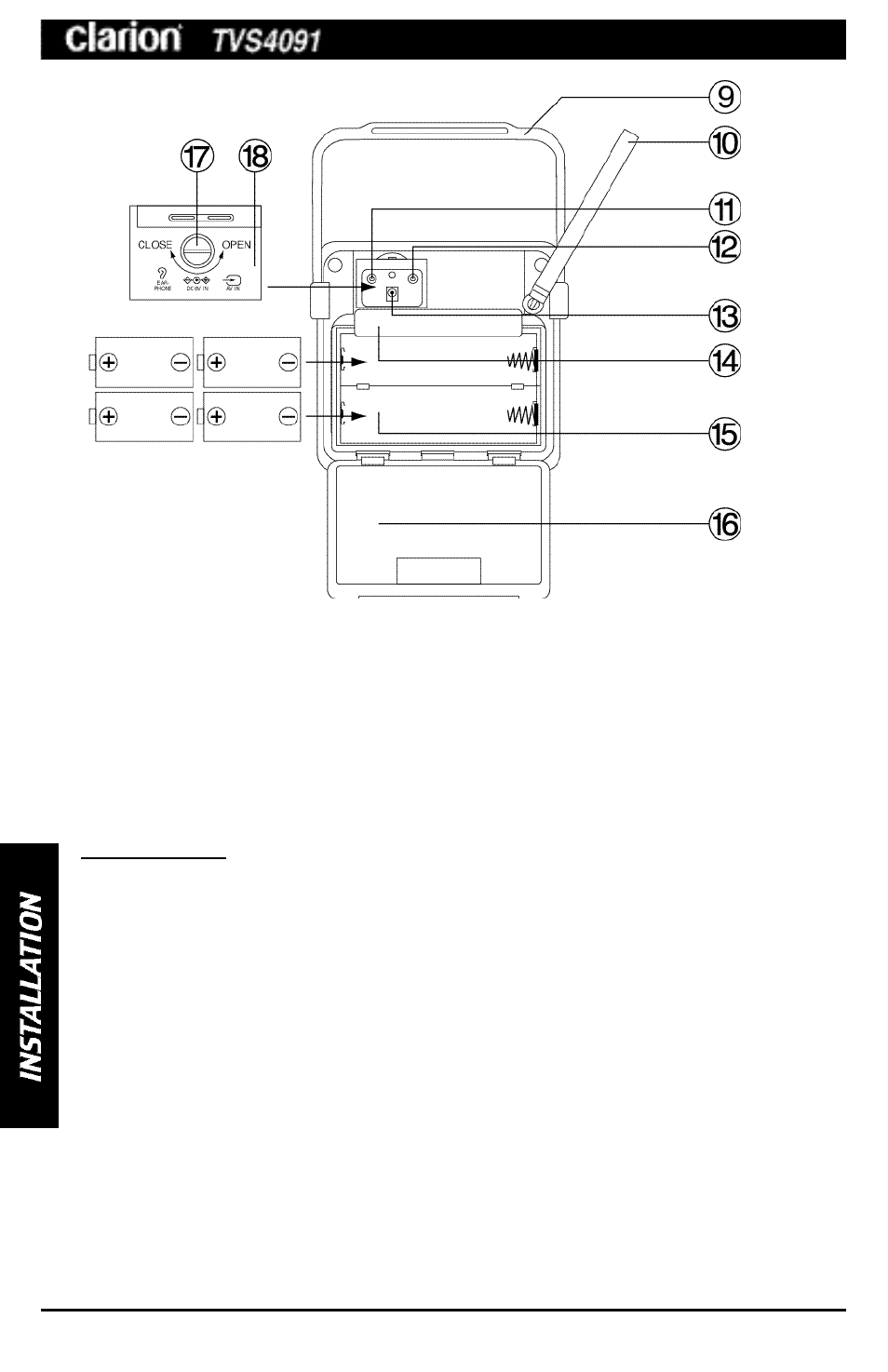

Handle
0
Rod Antenna
q
Earphone Jack
w
A/V Input Jack
e
DC Power Input Jack
r
Battery Cover Latch
t
Battery Compartment
y
Battery Compartment Door
u
Input Compartment Screw
i
Input Compartment
