INSTALLING BATTERIES
Insert (4) new “AA” Alkaline batteries (not provided) into the battery
cartridge. To install batteries, (1) remove the battery cover from the unit.
(2) Install the batteries according to the polarity markings provided on
the cartridge. (3) Slide battery retainer to center of battery cartridge.
Note: Incorrect battery installation can damage the batteries and
cartridge. Slide on Battery pack until secure.
Alkaline batteries:
Top grade Alkaline batteries should be used. (Not included)
Nickel Cadmium (NiCad) Batteries:
Batteries with 700 mAh minimum recommended.
Only Top Grade NiCad should be used.
Note: You must charge NiCad batteries on a separate, remote charger.
7 6

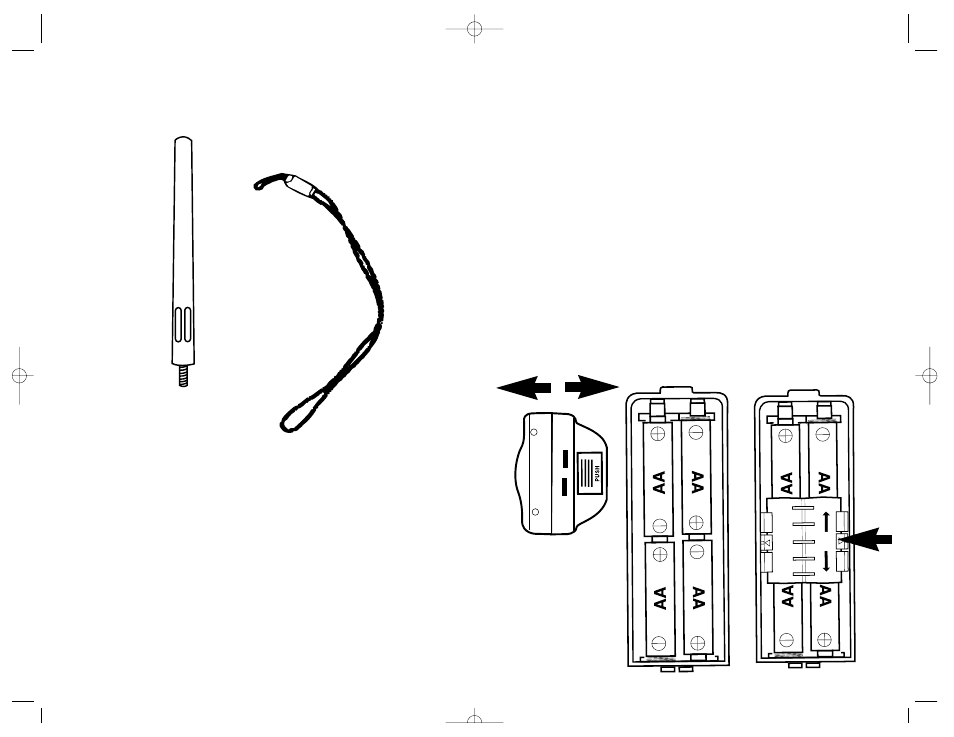

INCLUDED WITH YOUR FRS 200
1. High Efficiency
Antenna
2. Wrist Strap
1. Remove battery cover 2. Install
batteries 3. Place battery
retainer in the center
