Cardinal Gates MG15 - Manual

Install one-way stop bracket (I) on one side of
latch if you wish to have gate open in only one
direction.
A
B
C D
E
F
G
H
I
1
6 ”
A
C
2
C
3
REPEAT AT
BOTTOM OF
GATE
2X
D 4
B
E
H
5
LOOSEN AT TOP AND
BOTTOM OF GATE TO
ADJUST GATE WIDTH
2X
F
6
MOUNT LATCH
ASSEMBLY WITH
SCREWS
4X
•”
G
C
ONE-WAY
STOP BRACKET
OPTION

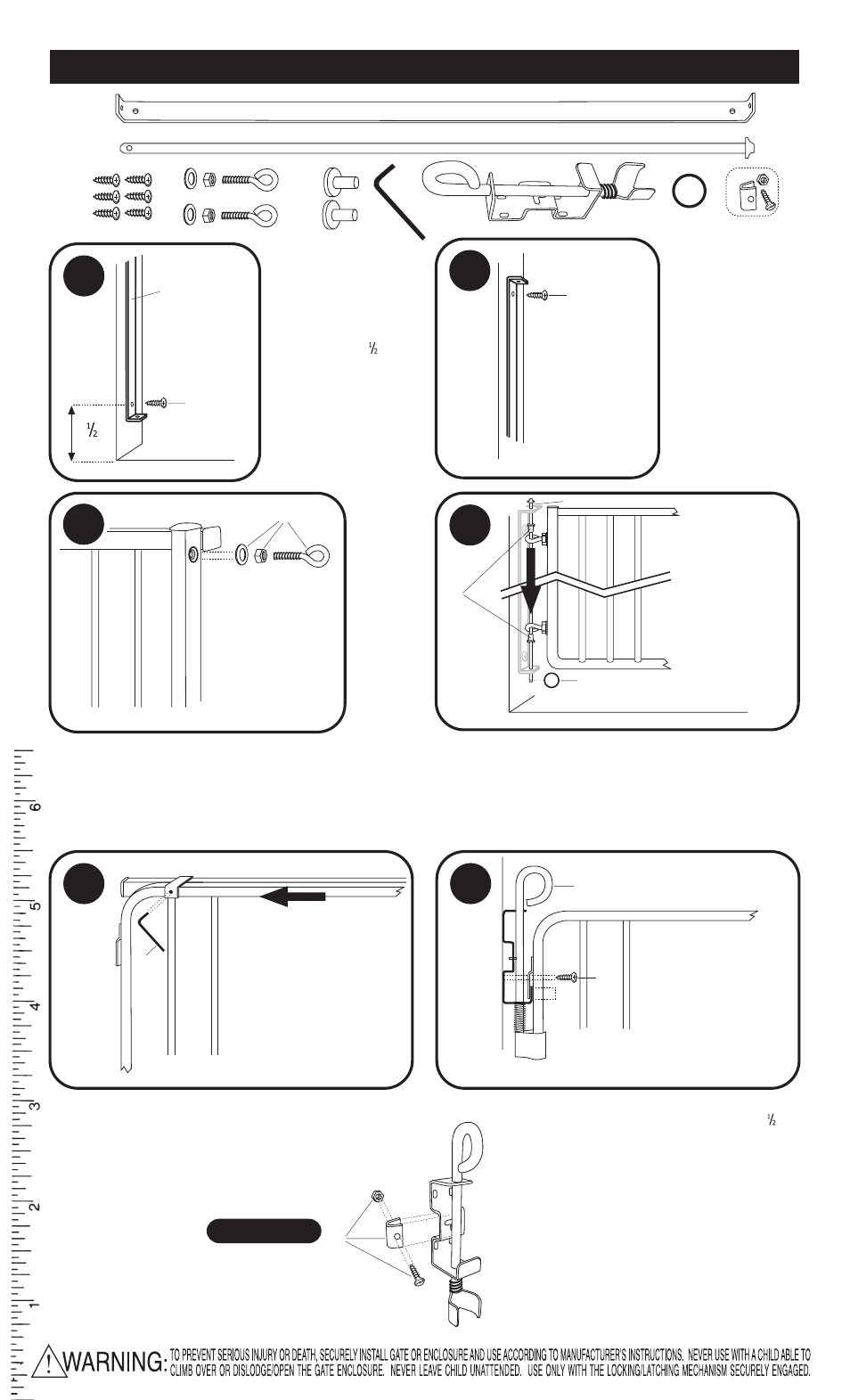

ASSEMBLY INSTRUCTIONS
1. Install hinge
bracket (A) to wall
(stationary side of
gate) using Phillips
screw (C)
beginning 6 ”
above floor
surface.
(Use ruler on left
edge of this sheet
to measure from
floor)
2. Install second
screw (C) in
top of hinge
bracket
securing it to
the wall.
THIS SIDE OF GA
TE HAS THREE (3) HOLES
3. Insert eye bolts (D) into top and bottom
of hinge side gate (side with three holes).
Be sure nuts are tight.
4. Hang gate by inserting hinge rod (B), through top
of mounted hinge bracket (A), through upper plastic
shoulder washer (E), through both eye bolts, through
lower plastic shoulder washer (E), and finally through
bottom of hinge bracket. To secure hinge, insert
key ring (H) through hole in end of hinge rod.
5. Use Allen wrench (F) to unscrew set screws on
top and bottom of gate to extend gate to fill door
opening. ONLY LIGHTLY TIGHTEN AND LEAVE
SHIPPING TABS IN PLACE NOT TO MAR GATE
FINISH. You will remove shipping tabs during final
tightening.
6. Hold latch assembly (G) against opposite
wall and extend gate until at least ” of
safety bracket will interlock with flange
of latch. Mark position of latch assembly
screw holes with pencil. Swing gate out
of way and mount latch assembly to wall.
Check closure of gate and tighten set
screws from STEP 5 by removing shipping
tabs to secure gate width.
GATE IS RECOMMENDED FOR CHILDREN UP TO 24 MONTHS.
MG15 Auto-Lock Gate
