Cres Cor CO151HUA6B-Q1 - Manual (Page 8)

Call Toll-free: 877-CRES COR (273-7267) • Fax: 800-822-0393 • www.crescor.com
Ovens with
Microprocessor Controls
FL-2269
Rev. 10 (6/08) Page 8 of 13
5925 Heisley Road • Mentor, OH 44060-1833

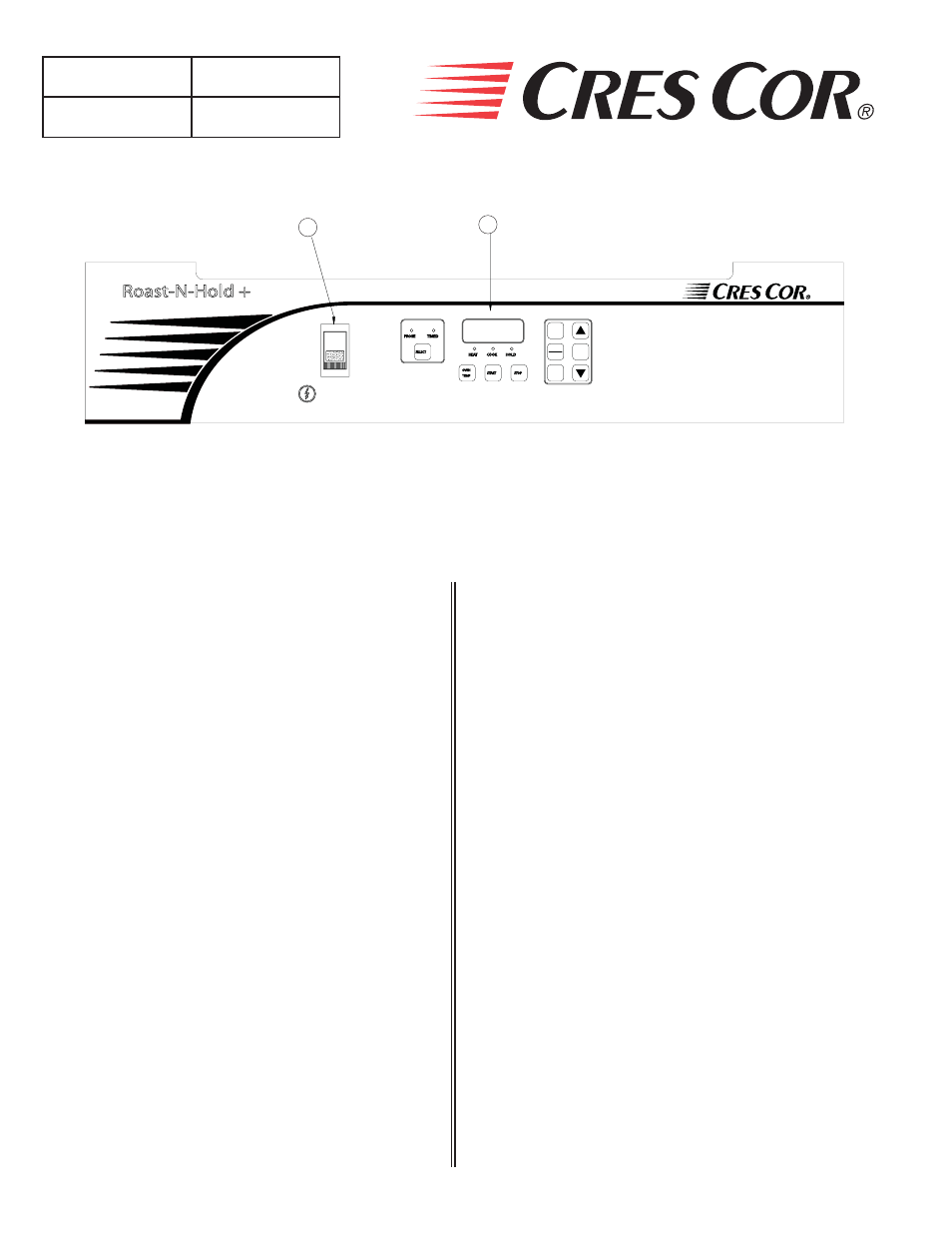

FIGURE 2: CONTROL PANEL
REPLACEMENT PARTS
Include all information on nameplate when ordering parts
ITEM DESCRIPTION Part No.
1. Switch (On/Off) 0808-113-01-K
2. Thermostat/Timer, Cooking/
Holding
0848-070-02
3. Vent Fan 0769-174
4. Fan Guard 0769-167
5. Fuse (Before 7-08) 0807-058
Fuse (After 7-08) 0807-151
Fuse Holder (Before 7-08) 0807-048
Fuse Holder (After 7-08) 0807-150
8. Terminal Block, front 0852-096
9. Terminal Block, rear 0852-093
10. Switch, Fan 0848-034
11. Hi Limit Switch 0848-079
12. Sensor 0848-073-01
13. Sensor Bushing 0818-014
14. Connector, probe (receptacle) 0848-059-01
Probe 1.5” long 0848-059-02
Probe 6” long 0848-059-04
Hot Unit Replacement Parts
ITEM DESCRIPTION Part No.
PARTS for 8200W, 1-PH UNITS
21. Power Cord
0810-124
Power Cord (Pass-thru) 0810-161
22. Heater Kit, 208V 0811-261
Heater Kit, 240V 0811-262
23. Strain Relief 0818-061
PARTS for 8200W, 3-PH UNITS
21. Power Cord
0810-132
Power Cord (Pass-thru) 0810-162
22. Heater Kit, 208V 0811-261
Heater Kit, 240V 0811-262
23. Strain Relief 0818-050
PARTS for 4700W, 1-PH UNITS
21. Power Cord
0810-163
22. Heater Kit, 208V 0811-020-K
Heater Kit, 240V 0811-020-01-K
23. Strain Relief 0818-050
PARTS for 4700W, 3-PH UNITS
21. Power Cord
0810-164
22. Heater Kit, 208V 0811-020-K
Heater Kit, 240V 0811-020-01-K
23. Strain Relief 0818-050
Roast-N-Hold + TM
OFF ( 0 )
POWER
ON ( I )
SELECT HOLD
TIME / TEMPERATURE
TIMED PROBE
MODE
HEAT
OVEN
COOK
START
COOK
PROBE
HOLD STOP
TIME SET
SETPOINTS
TEMP
1 2
