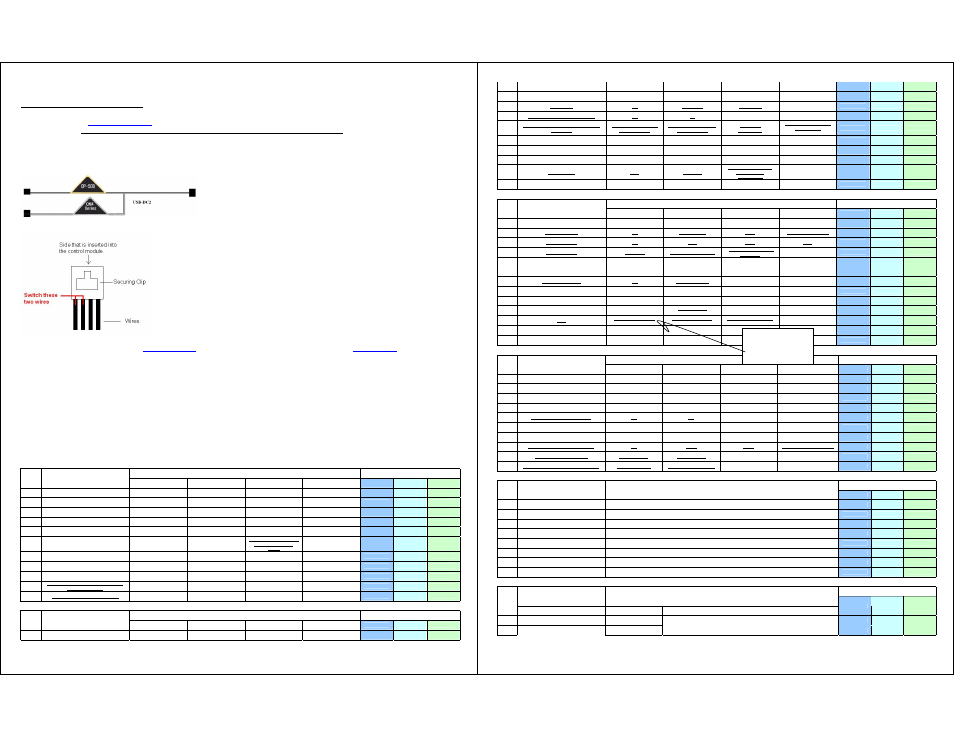

Note 12: Updating Controller Module
Look at the wiring chart of the module. If it is marked “V”, you have Version 12. If you have any other version, it will show the version
number. Please check
www.compustar.com to find out if there are any new updates. If there is any, we recommend you to update the module
before installation. All three modules, CM4000, CM4200(DX) and CM4300, use same software program.
Updating the Module.
1. You need to have a USB Uploader, the part number CST-USB-ASSY (3 components – a USB cable, a USB Module and a double head data cable.) If you already have a USB Uploader for
OP500 or iDataLink, order the double head data cable, part number USB-DC2 for free of charge. You need to pay freight. USB-DC2 is a cable connecting USB module to CompuStar and has
two connectors instead of one
Or, for a temporary use, you may modify any of the CompuStar antenna cable you have now. See below.
2. Plug in USB connector to available USB port on computer. Do not have anything (idatalink, CM4000, OP500 etc) connected to the updater when connecting it to the computer.
3. Windows will automatically find drivers for the USB upload cable.
4. To retrieve software for updating, please email:
[email protected] . Please write “request for update software” in subject. You can also go to www.compustar.com .
Now you are ready to update your control module
5. You will need to first identify what COM port your USB device is set up to use. To do this, Right-click on "My Computer" and go to "Properties". Once the properties window is on the screen,
click the "Hardware" tap at the top of the window. Then in the main body of the window, click on the Device Manager" button. Under "Ports (COM & LPT)" There should be a device called
"USB Serial Port (COM?)", the number that is in place of the question mark is your selected com port. Disconnect the main harness; the system can not have power while you are
attempting to update its software.
6. The LED/Secure Valet switch must be connected.
7. Connect to the RS232 port of CompuStar.
8. Open the "CM4000 v12" folder, for example, and hold the LED/Valet switch button down while you double-click the file that matches your com port. Example: I use COM5 so I would use
"Update-COM5.bat". Once the LED in the LED/Valet switch starts flashing, you can let go of the button. After it is finished, just disconnect the CM4000 from the USB Updater and connect the next
CM4000 if you have more to do.
II. Option Programming Tables
Option Programming and Secure Valet are available only when “DISARMED”.
Special Option Group #1 and #2 can be programmed only with OP500.
OPTION GROUP 1
Setting Applicable To
#1 Feature
Default(I) Optional(II) Optional(III) Optional(IV) CM4000 CM4200-DX CM4300
1-1 Unlock before, Lock after, starting. Off On Lock After Start Only V V
1-2 Lock / Unlock pulse duration. 0.8 sec 2.5 sec 0.125 sec 3.5 sec V V V
1-3 Driver's priority unlock Off On V V V
1-4 Double pulse unlock. Off On V V V
1-5 Rearm Output After Start Shutdown and
First Lock
After Start Shutdown and
Every Lock V V V
1-6 Reservation Lock (Manual transmission) Locks When Reservation
Mode is Set
Does Not Lock When
Reservation is Set
Reservation Sets 10 Seconds
After the Last Door is
Closed
V V
1-7 Unlock / Disarm With Trunk Release Unlock, Factory Disarm, and
Trunk Release
Factory Disarm, Trunk
Release Only Trunk Release Only V V V
1-8 Locking while in Passive Arming Passive locking w/ Passive
Arming
No Passive Locking w/
Passive Arming V V V
1-9 Ignition controlled door locks Off On RPM Locks (Tach Sensing
Mode Only) V V V
1-10 Auto Relock (If a door is not opened within
this amount of time.) Off 30 sec 60 sec 5 min V V V
1-11 Ignition / Accessory Out Upon Unlock Off Ignition Pulse-same timing as
disarm pulse
Acc Pulse-same timing as
disarm pulse
Ig and Acc Pulse-same
timing as disarm pulse V V V
OPTION GROUP 2
Setting Applicable To
#2 Feature
Default(I) Optional(II) Optional(III) Optional(IV) CM4000 CM4200-DX CM4300
2-1 Min. Crank Time Standard +0.2 Seconds to Crank Time +0.6 Seconds to Crank Time
(Voltage Sensing Only) V V
2-2 Turbo mode. Off 2 Min 1Min 4 Min V V
2-3 Diesel timer. Wire 3~99sec (10sec Default) V V
2-4 Trigger Start Off Single Pulse Double Pulse V V
2-5 Cold Start with Thermistor Assembly Off On V V
2-6 Timer Start, or, Minimum Interval Between
Cold Starts
3 Hour (4 minute runtime,
double for Diesel)
1.5 Hour(4 minute runtime,
double for Diesel)
Reservation
(Runtime 2-7)
24 Hour Repeat with Cold
Starting of 2-8
(Runtime 2-7)
V V
2-7 Remote Start Runtime 15 Min 25 Min 45 Min 3 Min V V
2-8 Temperature of Cold Starting Off -10° C / 14° F -5° C / 23° F 0° C / 32° F V V
2-9 Temperature of Hot Starting Off 30° C / 86° F 35° C / 95° F 40° C / 104° F V V
2-10 Engine Sensing Tach Alternator
No Connection – Voltage
Not for Manual
Transmissions
V V
2-11 Turbo, Remote Start Runtime Extension w/ #1
for 2 seconds No Yes V V
OPTION GROUP 3
Setting Applicable To
#3 Feature
Default(I) Optional(II) Optional(III) Optional(IV) CM4000 CM4200-DX CM4300
3-1 Parking lights While Remote Started Constant Output Flashing Output Off V V
3-2 Dome Light output Off Factory Rearm 45 sec Factory Rearm + 45 Sec V V V
3-3 Dome Light Delay Off 5 sec 45 sec Auto V V V
3-4 Starter-Kill relay. Anti-Grind Anti-Grind + Starter Kill Anti-Grind + Passive
Starter Kill V V
3-5 Anti-Jacking Starter-kill Ignition-Kill (no
Anti-Grind)
Auto kill (Auto-door locks
Off)
Canadian Remotes w/ AUTO
Function Only
Auto kill (Auto-door locks
On)
Canadian Remotes w/ AUTO
Function Only
V V
3-6 Factory Alarm Option Off On (4200DX Only) V
3-7 Siren Duration (Upon Alarm Trigger) 30 sec 60 sec 120 Sec Chirps for 20 seconds V V
3-8 Horn Output On Double Lock Only On Lock and Unlock On Lock, Unlock, and Start On Double Lock and Start V
3-9 Horn Output (4000/4300) When Alarm Is
Triggered
Pulsed Output
(Horn)
Constant Output
(Secondary Siren) V V V
3-10 Valet Key 5 times, or Remote
(I+III) while Ignition is On
Key 5 times or Remote
(I+III)
Secure Valet(Default code
3,3) V V V
3-11 Channel Expander Mode Disabled Enabled V V V
3-12 Passive Arming with Channel Expander
enabled No Passive Arming Passive Arming V V V
OPTION GROUP 4
Setting Applicable To
#4 Feature
Default(I) Optional(II) Optional(III) Optional(IV) CM4000 CM4200-DX CM4300
4-1 Aux 1 output 0.5sec Latch 20 sec Program V V V
4-2 Aux 2 output 0.5sec Latch 60 sec Program V V V
4-3 Aux 1 output Control By Remote Arm Disarm Panic V V V
4-4 Aux 2 output Control By Remote Arm Disarm Panic V V V
4-5 Secure Aux Output (1 and 2 Only) On Off V V V
4-6 Auxiliary Input 1 Prewarn Trigger (-)Disarm V V V
4-7 Auxiliary Input 2 Trigger Prewarn (-)Arm V V V
4-8 Extended Accessory After Ign Shutoff Off 10 sec 30 sec Until Door Open (1 min max) V V V
4-9 Key Sense or Glow Plug input Glow Plug Input Key Sense Input V V
4-10 Trigger Start or Closed Loop System Input Trigger Start input Closed Loop System Input V V V
SPECIAL OPTION GROUP #1
Applicable To
1 Feature Setting Value [seconds]
CM4000 CM4200-DX CM4300
1 Diesel timer 3 ~ 99 V V
2 AUX1 output time 1 ~ 100 V V V
3 AUX2 output time 1 ~ 100 V V V
4 AUX3 output time 1 ~ 100 V V
5 AUX4 output time 1 ~ 100 V V
6 AUX5 output time 1 ~ 100 V V
7 AUX6 output time 1 ~ 100 V V
8 AUX7 output time 1 ~ 100 V V
SPECIAL OPTION GROUP #2
Applicable To
Feature Setting Value
2
Programmable Output Connector 0[Default] 1~12
CM4000 CM4200-DX CM4300
1 POC #1 2nd LIGHT V V V
2 POC #2 2nd START
2nd Light[1], 2nd Start[2], 2nd IG1[3],
2nd Acc[4], Status Out[5], Rearm Out[6], V V
3-10 New in 4000 series.
To avoid accidental entry to
Valet Mode, you need to
have IG on while I+III are
pushed
